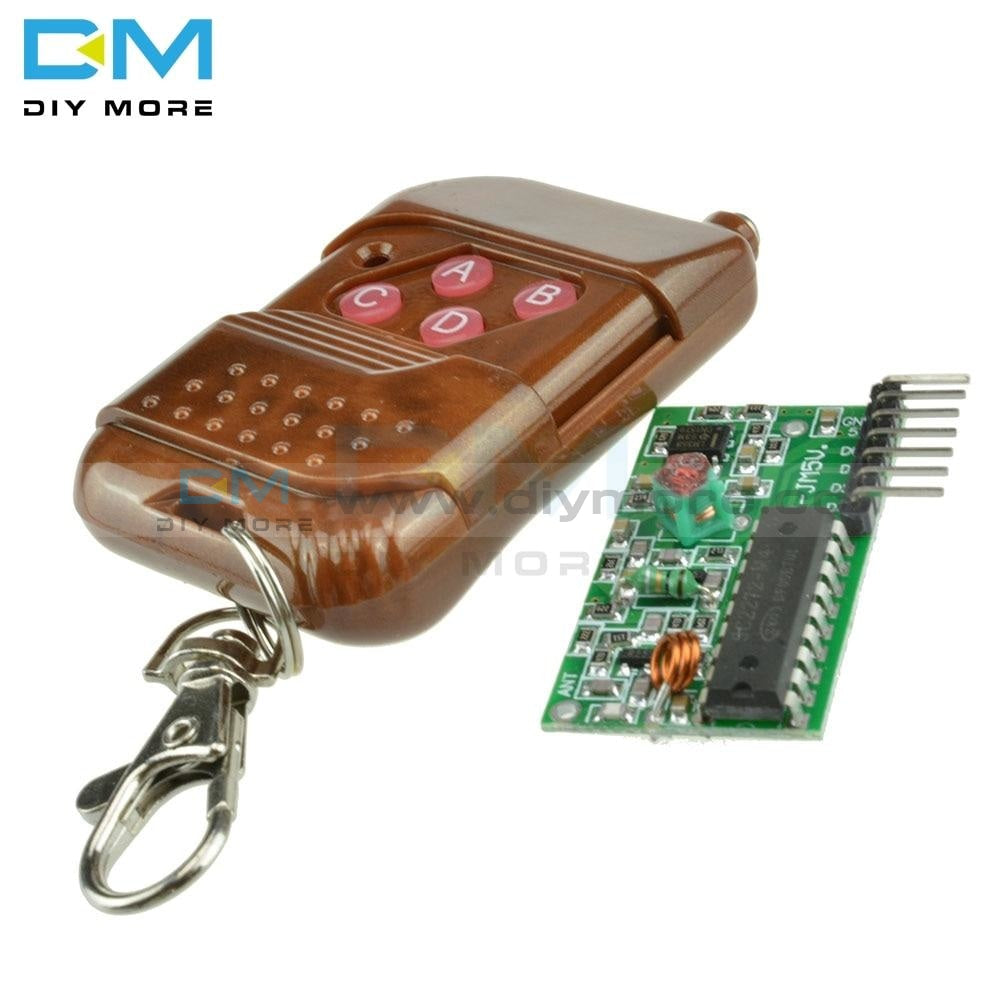

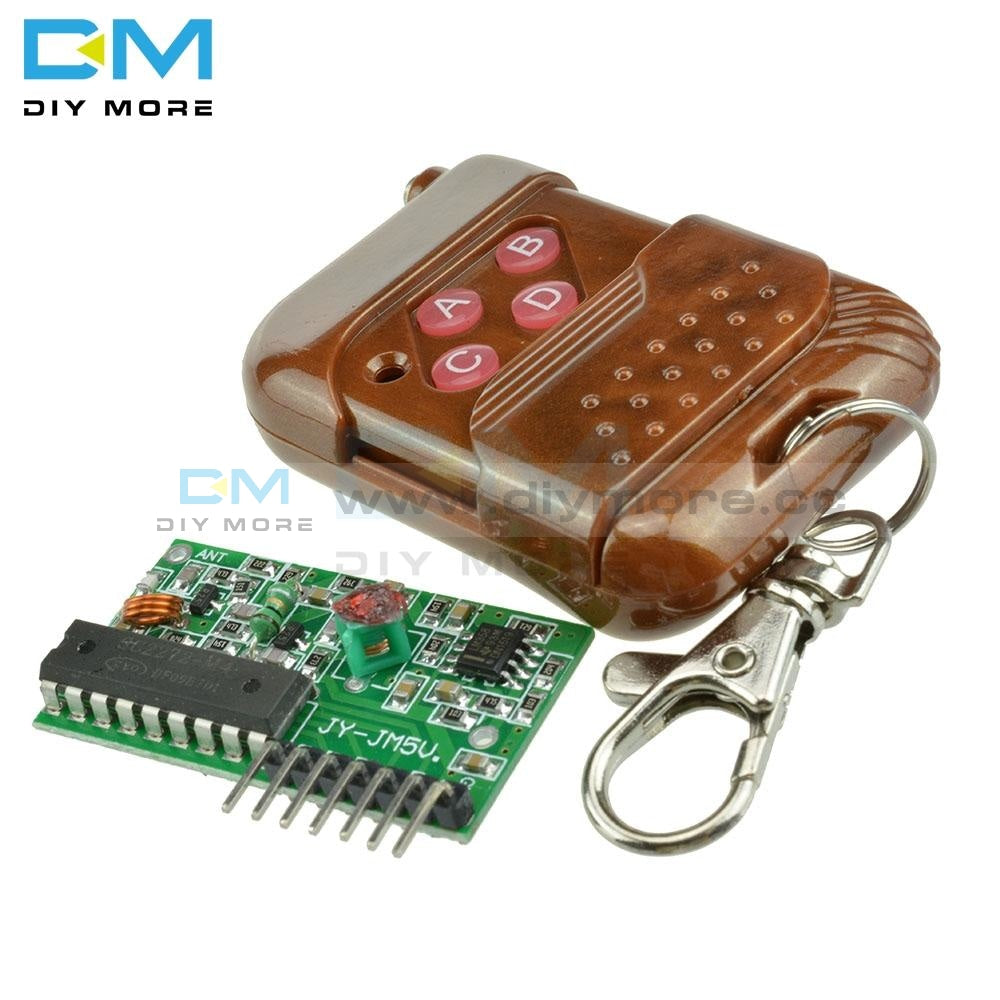

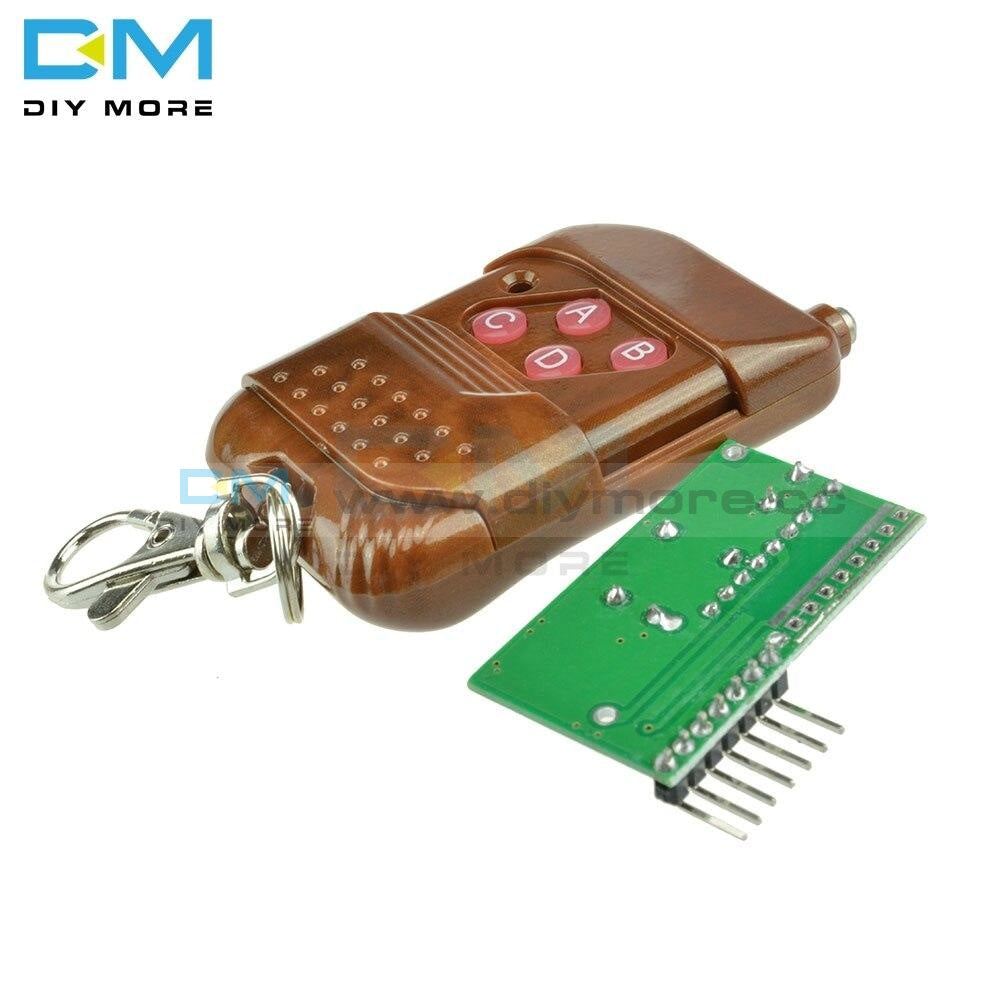

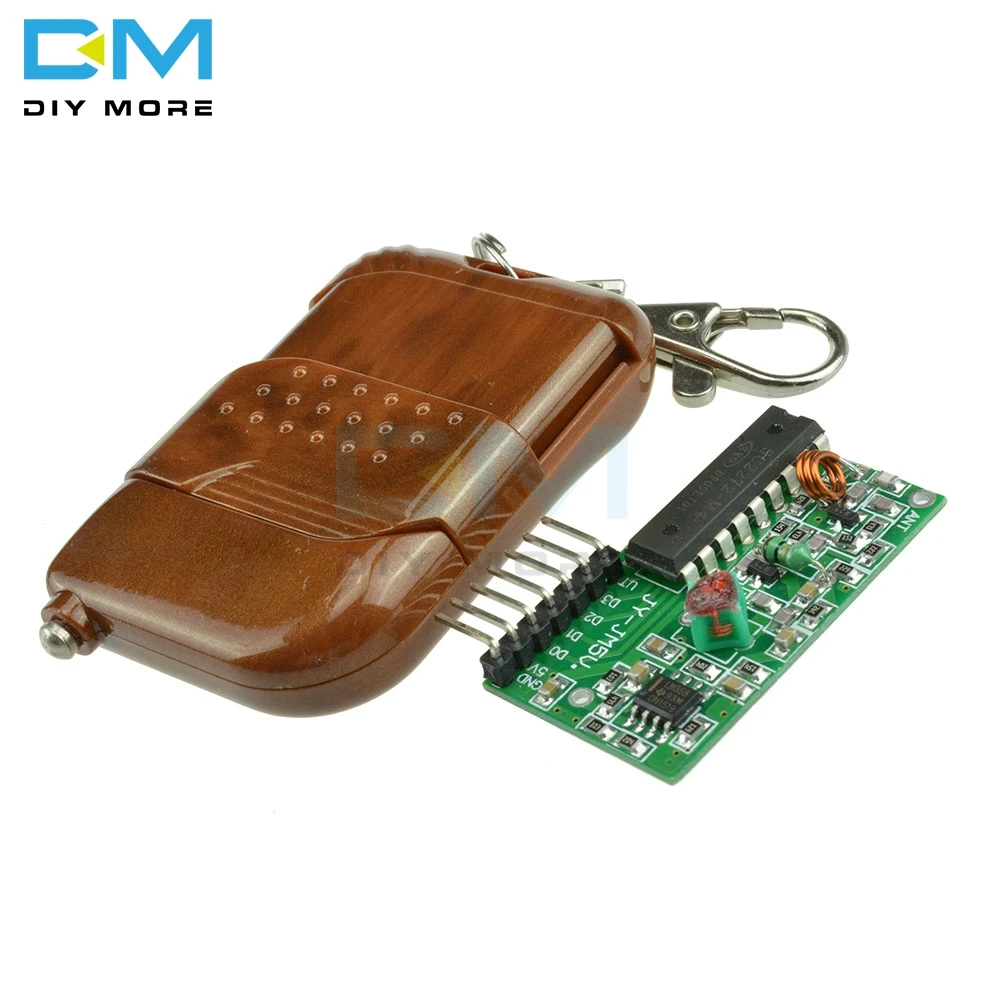

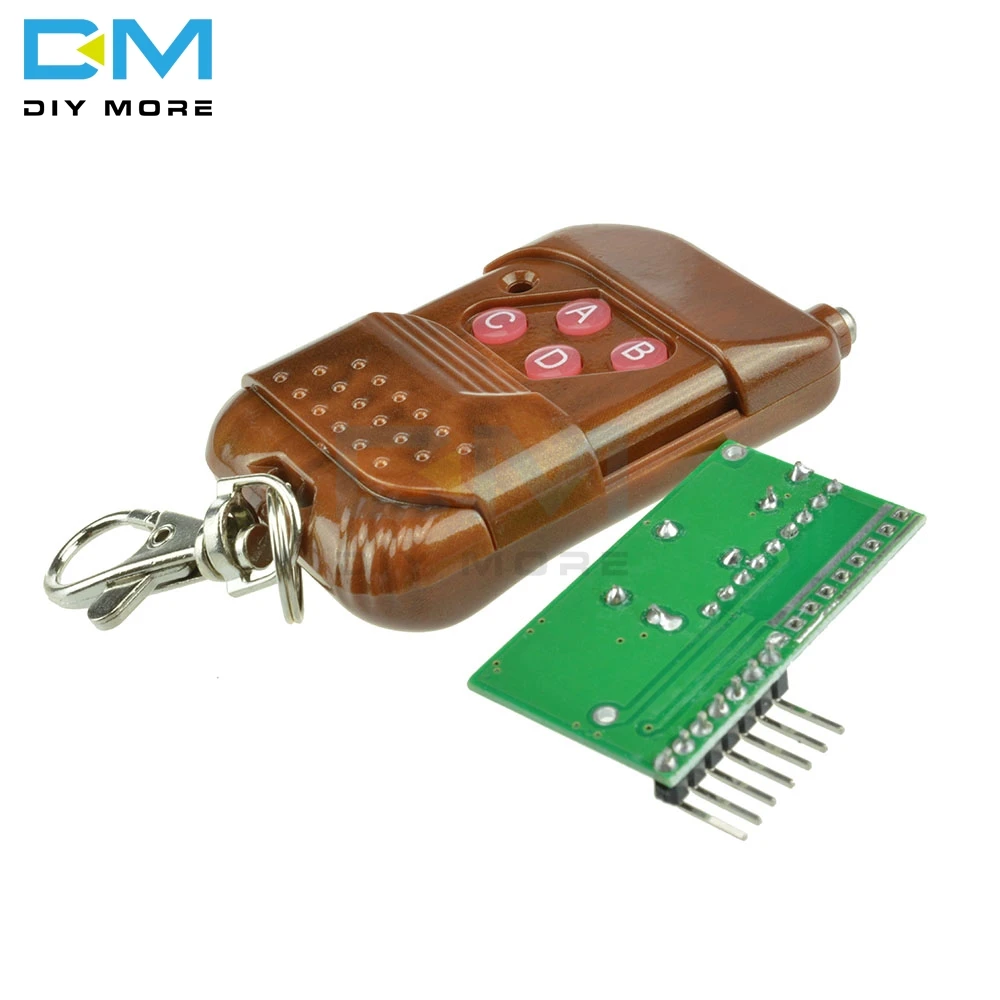

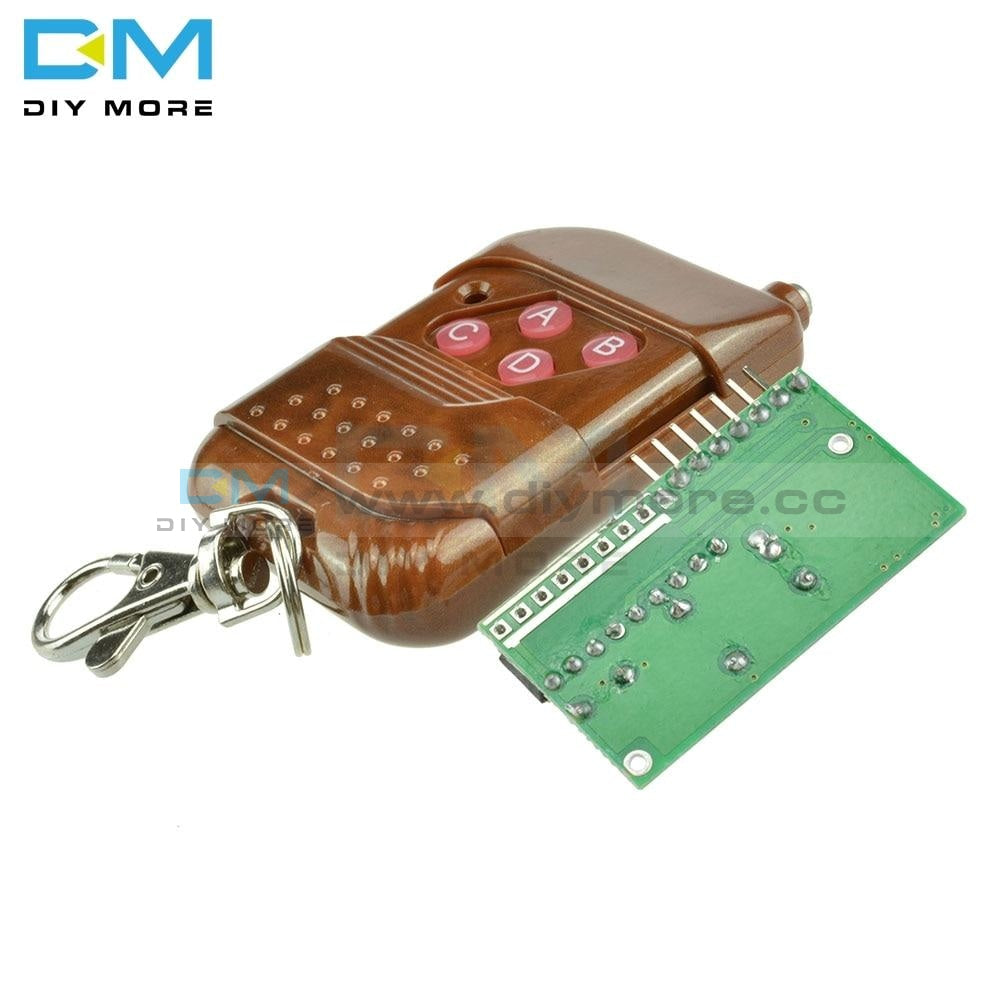

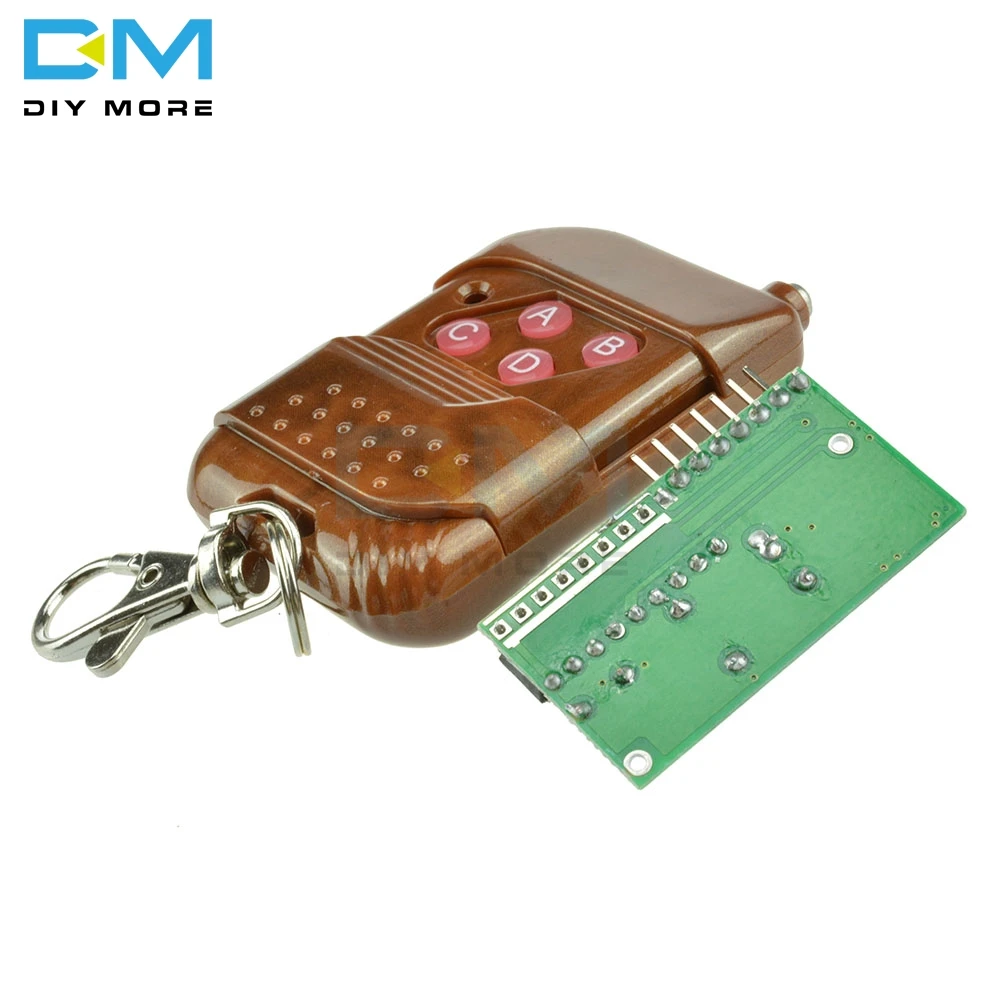

4 CH Key Wireless Remote Control Receiver Module 315MHz 2262/2272 IC For Arduino
4 CH Key Wireless Remote Control Receiver Module 315MHz 2262/2272 IC For Arduino
SKU:010566
Regular price
$5.99
![]()
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155
433MHZ
Remote control
1.Operating voltage: DC12V (27A/12V battery x1)
2.Operating Current: 10mA @ 12V
3.Radiated power: 10mw @ 12V
4.Modulation mode: ASK (Amplitude Modulation)
5.Transmitting frequency: 433MHZ
6.Transmission distance :50-100M (Open field, the receiver sensitivity of -100dbm)
7.Encoder types: fixed code

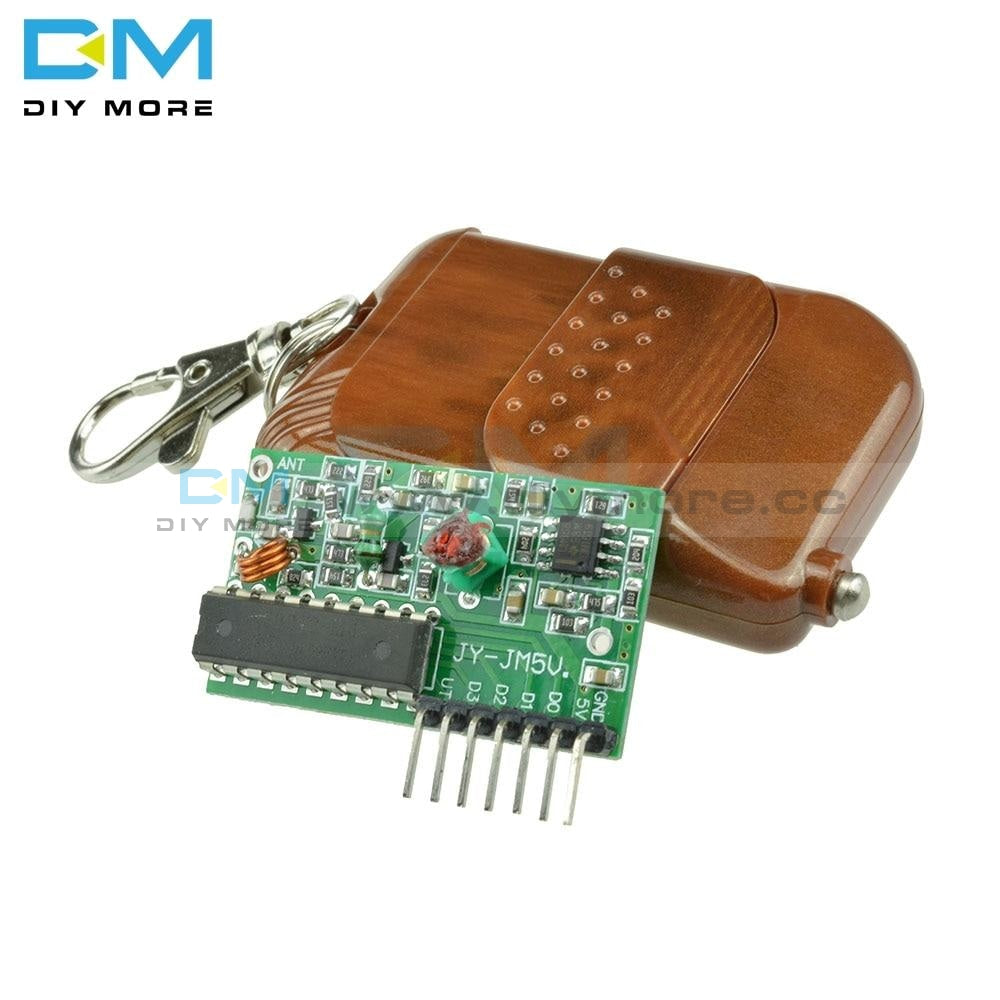

With decoding receiver board

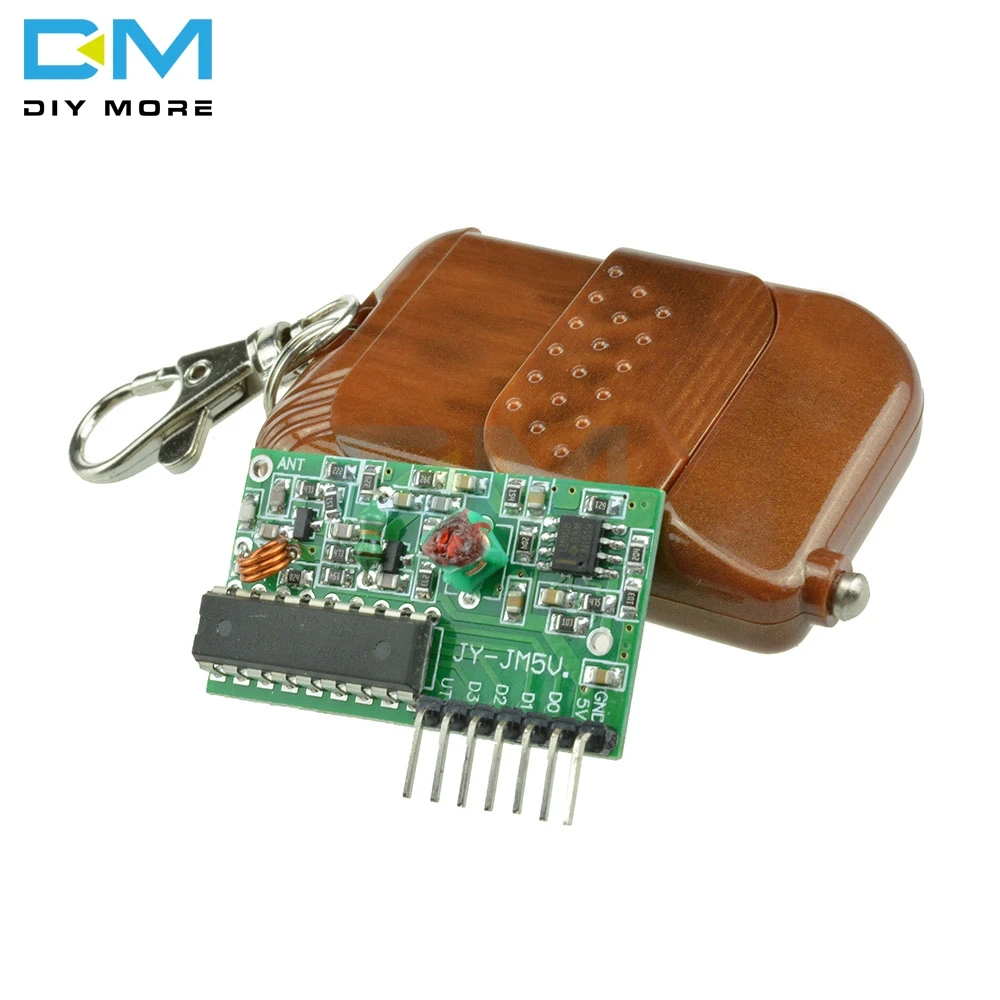

1.The operating voltage DC5V, receiver sensitivity is-98db. Leg 7 bits, respectively, VT, D3, D2, D1, D0, the +5 V and GND. VT is a valid signal high output pin Upon receiving a valid signal, the pin output high, may also drive the relay.
2.Size: 6.6*22*41mm
There are four buttons on the remote control, and respectively correspond to the four data bits to the receiving board output pin D0, D1, D2, and D3 of. Press the buttons transmit signals, the corresponding data bit is output high.
Operating voltage: DC12V (27A/12V battery x1)
Operating Current: 10mA @ 12V
Radiated power: 10mw @ 12V
Size: 6.2 x 3.8 x1.4cm(LxWxD)
Modulation mode: ASK (Amplitude Modulation)
Transmitting frequency: 315MHZ (SAW frequency stabilization)
Transmission distance :50-100M (Open field the receiver sensitivity -100dbm)
Encoder types: fixed code
The frequency of this product is 315 mhz.
With decoding receiver board
1.The operating voltage DC5V, receiver sensitivity is-98db. Leg 7 bits, respectively, VT, D3, D2, D1, D0, the +5 V and GND. VT is a valid signal high output pin Upon receiving a valid signal, the pin output high, may also drive the relay.
2.Size: 6*22*41mm
Operating Current: 10mA @ 12V
Radiated power: 10mw @ 12V
Size: 6.2 x 3.8 x1.4cm(LxWxD)
Modulation mode: ASK (Amplitude Modulation)
Transmitting frequency: 315MHZ (SAW frequency stabilization)
Transmission distance :50-100M (Open field the receiver sensitivity -100dbm)
Encoder types: fixed code
The frequency of this product is 315 mhz.
With decoding receiver board
1.The operating voltage DC5V, receiver sensitivity is-98db. Leg 7 bits, respectively, VT, D3, D2, D1, D0, the +5 V and GND. VT is a valid signal high output pin Upon receiving a valid signal, the pin output high, may also drive the relay.
2.Size: 6*22*41mm
3.Battery: 12V 23A.
There are four buttons on the remote control, and respectively correspond to the four data bits to the receiving board output pin D0, D1, D2, and D3 of. Press the buttons transmit signals, the corresponding data bit is output high.
YOU COULD CHOOSE:
1 x IC2262/2272 4 channel wireless remote control kits 4 key wireless remote 433MHZ
1 x IC2262/2272 4 channel wireless remote control kits 4 key wireless remote 315MHZ
