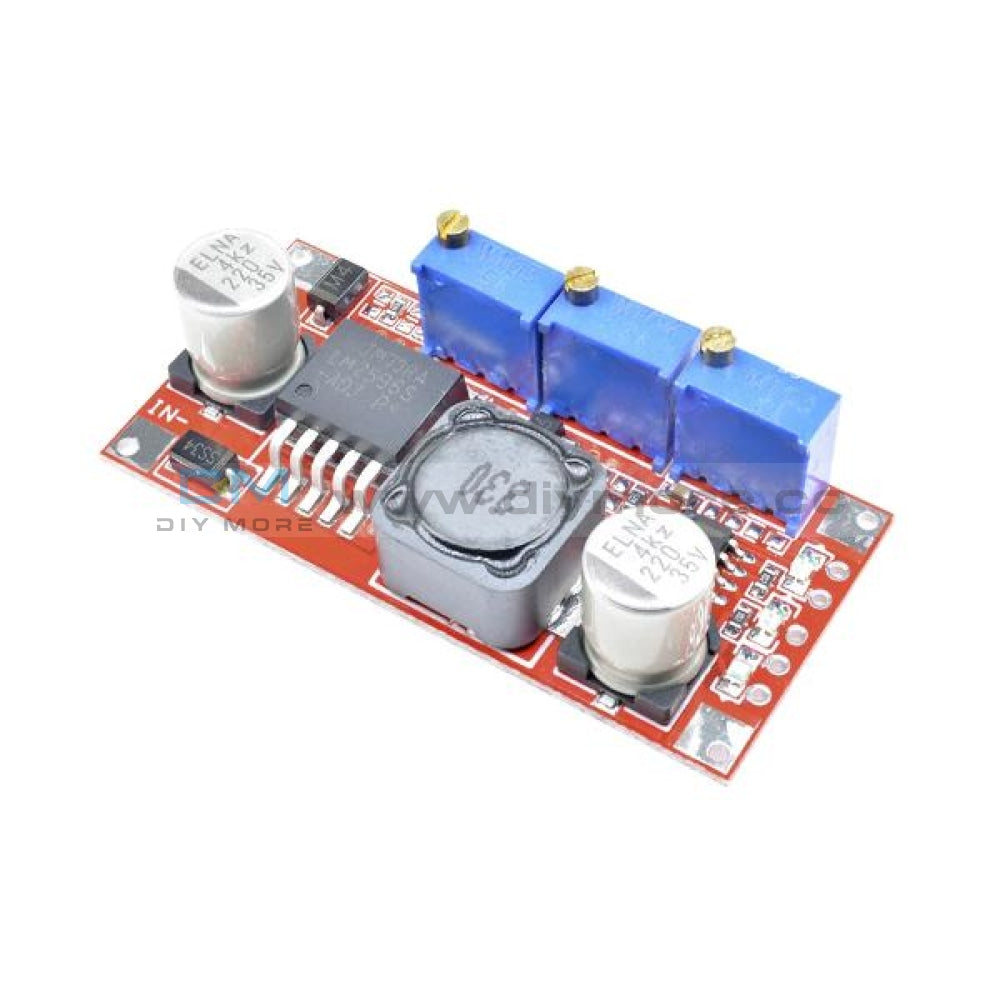

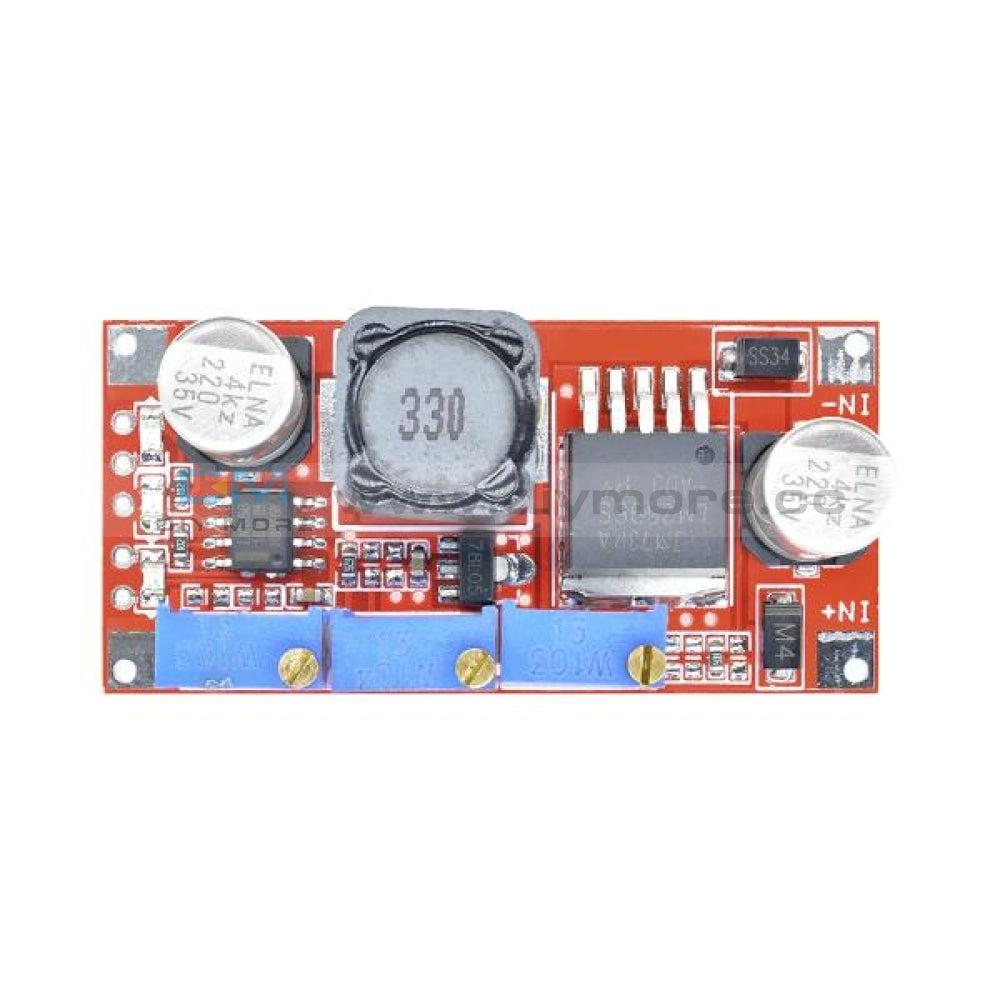

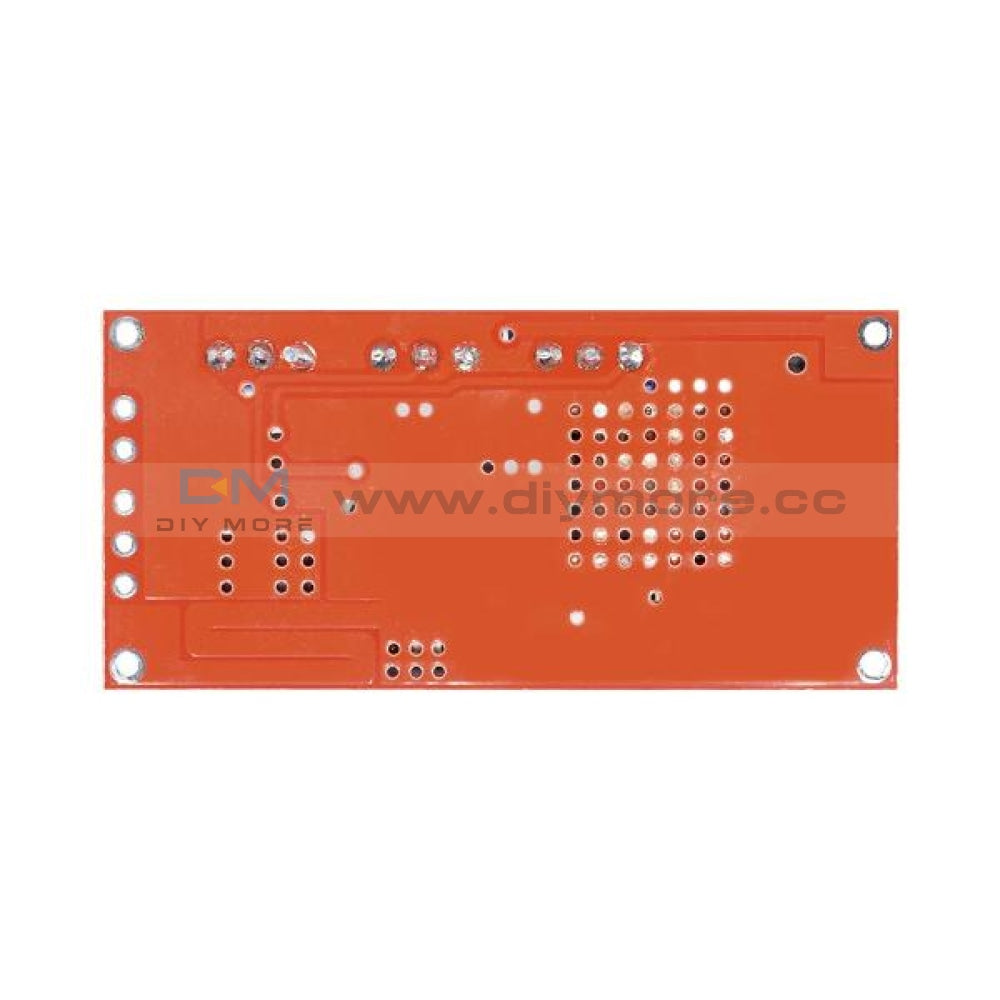

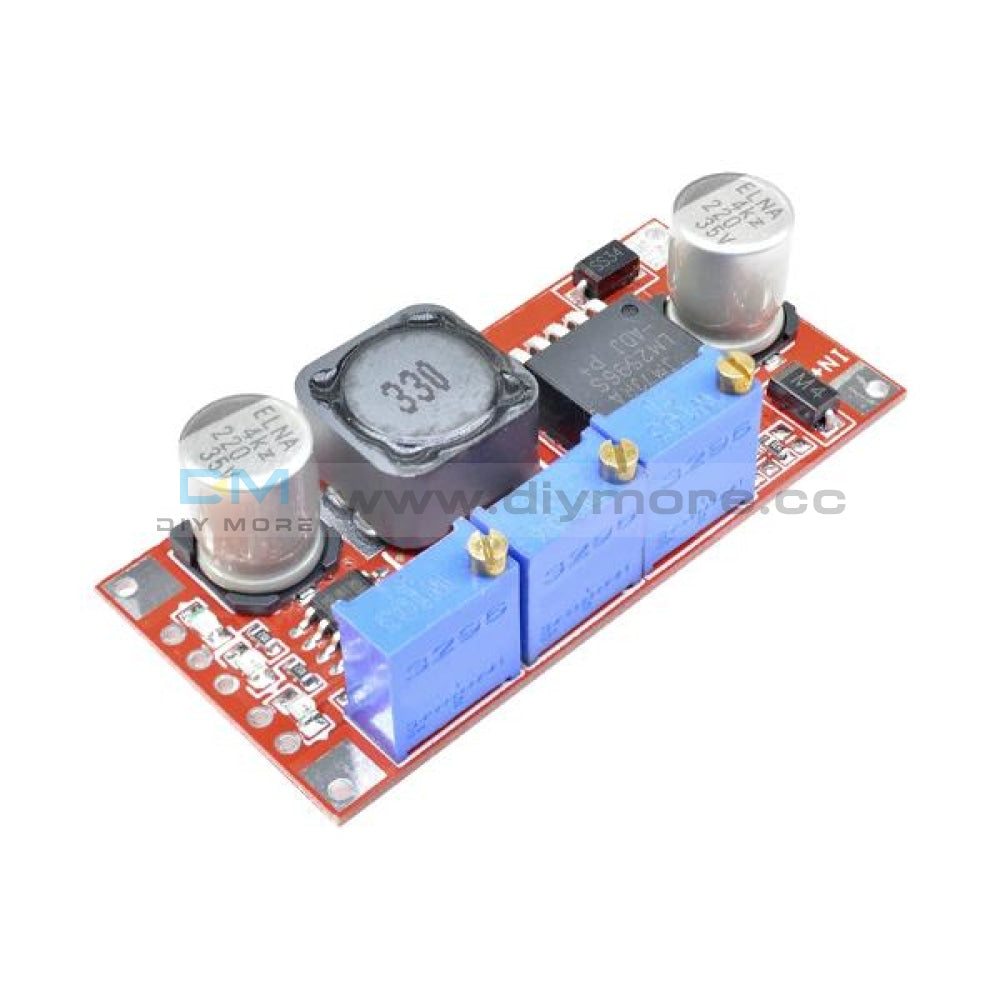

LM2596 DC-DC Step-down Adjustable CC/CV Power Supply Module Converter
LM2596 DC-DC Step-down Adjustable CC/CV Power Supply Module Converter
SKU:010057
Regular price
$5.99
Sale price
$4.99
![]()
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155
-
High-power LED constant current drive
-
Lithium battery charger (including ferroelectric)
-
4V, 6V, 12V, 14V, 24V battery charger
-
Nickel cadmium, nickel metal hydride battery pack charger
-
Solar panels and wind turbines
Specifications:
-
Input Voltage: 5-35V
-
Output Voltage: Continuously adjustable from 1.25 V to 30V
-
Rated Output Current: 3A
-
Max. Output Current: 4A (more than 15W, preferably with a heat sink)
-
Size (L x W x H): Approx. 1.9 x 0.95 x 0.5 inch / 4.8 x 2.4 x 1.3cm
-
Indicator Light
-
Constant current indicator(red)
-
Charging indicator(red)
-
Charged full (green)
Battery use:
-
l Make sure of the voltage and current of the battery you need to charge
-
l Adjust the constant voltage potentiometer to make the output voltage same to the charge voltage
-
l Potentiometer Adjustment Direction: Clockwise (increase), counterclockwise (decrease)
-
Use the multimeter in 10A current scale to measure output short-circuit current, and adjust the current potentiometer to make sure the output current to the expected charging current value
-
l The charge current of transfer lamp is default 0.1 times of the charging current (constant current value)
-
l Connected to the battery and try to charging (for previous 5 steps, module input terminal is connected to power source, output load is NOT connected to batteries)
LED Constant Current Driver Use:
-
l Make sure operating current and Max operating Voltage of the LED you need to drive
-
l Adjust the constant voltage potentiometer to make sure the output Voltage is up to LED Max operating Voltage
-
Use the multimeter in 10A current scale to measure output short-circuit current, and adjust the current potentiometer
-
l to make sure the output current to the expected LED operating current
-
l Join LED, test (For the above 3 steps, module input terminal is connected to power source, output load is NOT connected to LED)
Package included:
-
1 x Adjustable Power Supply Module
