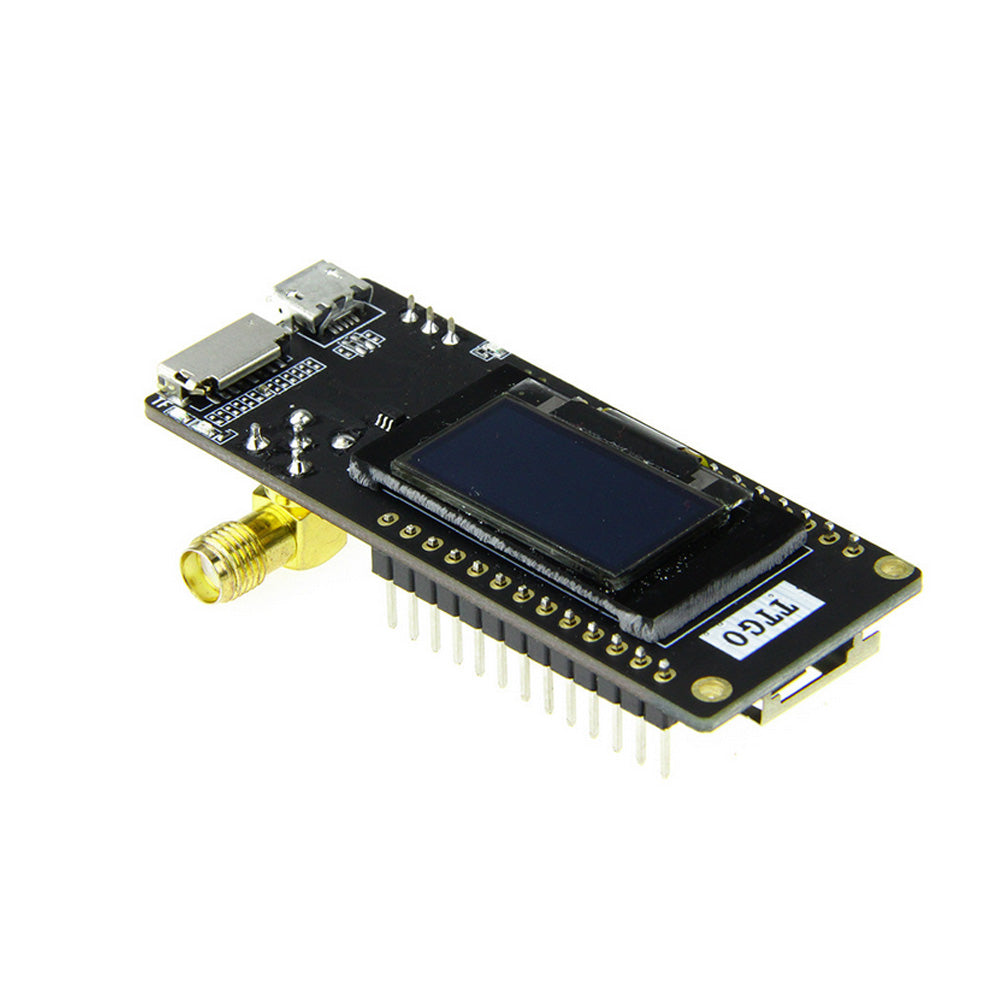

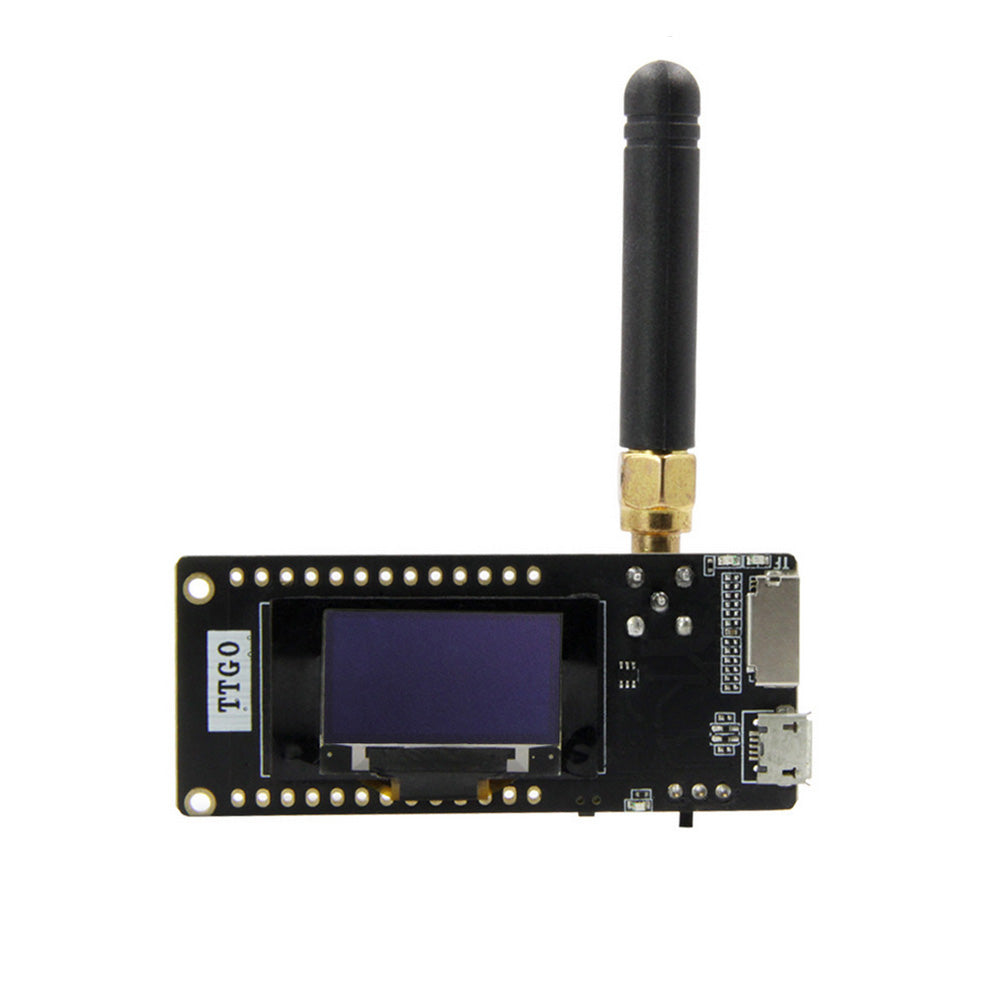

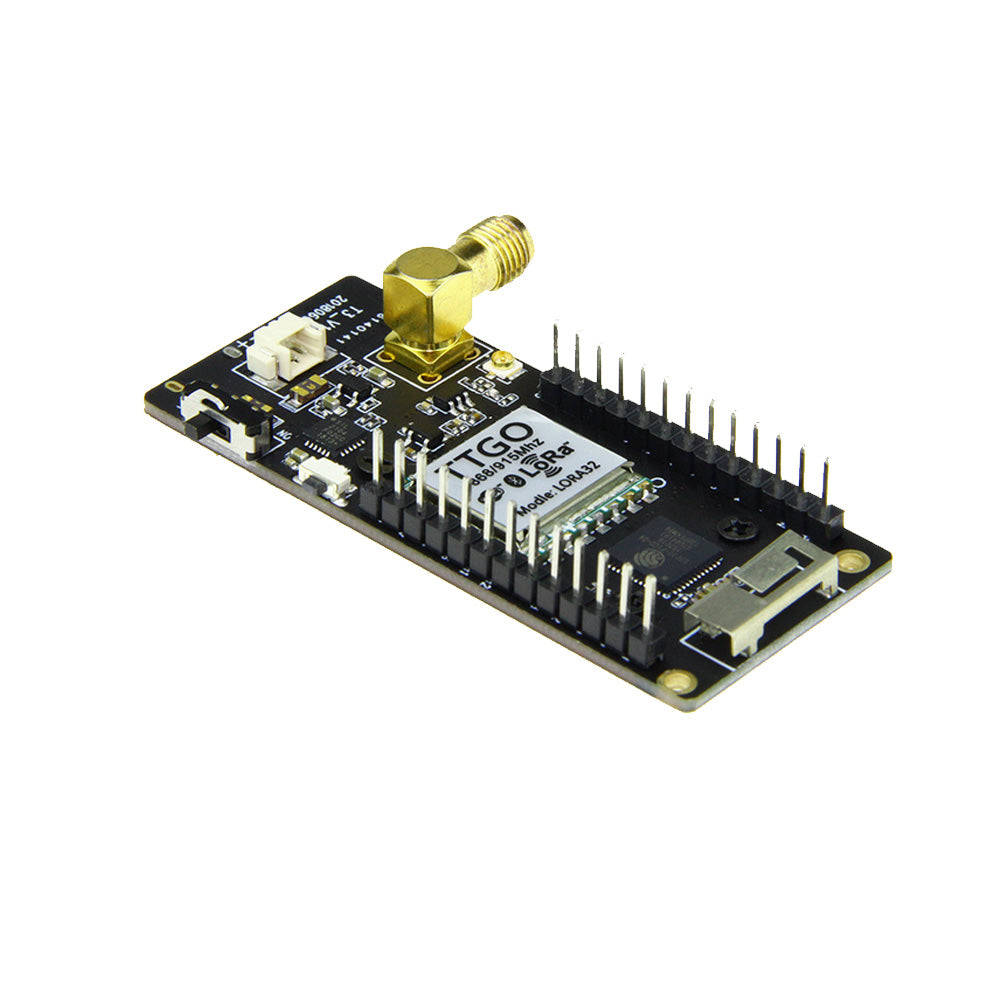

LoRa32 V2.1 433/868/915MHZ ESP32 LoRa OLED 0.96 Wifi Bluetooth Wireless Module
LoRa32 V2.1 433/868/915MHZ ESP32 LoRa OLED 0.96 Wifi Bluetooth Wireless Module
SKU:XF0048
Regular price
$19.99
![]()
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155
Feature:
- Supporting the digital RSSI function, such module can make automatic frequency correction.
- With automatic gain control, it is also entitled with RF wake-up function for practicality.
- Via low voltage detection and temperature sensor, this development board can make fast wake-up and frequency hopping.
- For highly configurable packet handler, this wireless is with SMA antenna IP5306.
- By high specification process, careful welding and precise hole position, it is full-featured.
Specification:
- Item Type: Wireless module
- Working Voltage: 1.8v-3.7v
- Acceptable Current: 10-14mA
- Emission Current: 120mA AT + 20dBm
- 90 mA AT AT 17dBm
- 29 mA AT +13dBm
- Working Frequency: 915MHz OR 433MHz OR 868MHz (According to your choice)
- Transmit Power: + 20dBm
- Receive Sensitivity: -139dBm AT for LoRa&62.5Khz&SF = 12&146bps
- 136dBm AT for LoRa&125Khz&SF = 12&293bps
- 118dBm AT for LoRa&125Khz&SF = 6&9380bps
- 123dBm AT FSK&5Khz&1.2Kbps
- Frequency Error: +/- 15KHz
- FIFO Space: 64Byte
- Data Rate: 1.2K-300Kbps@FSK
- 0.018K-37.5Kbps AT for LoRa
- Modulation Mode: FSK, GFSK, MSK, GMSK,for LoRa TM, OOK
- Interface Form: SPI
- Sleep Current: 0.2uA AT SLEEP
- 1.5uA AT IDLE
- Working Temperature: -40 ° C - + 85 ° C

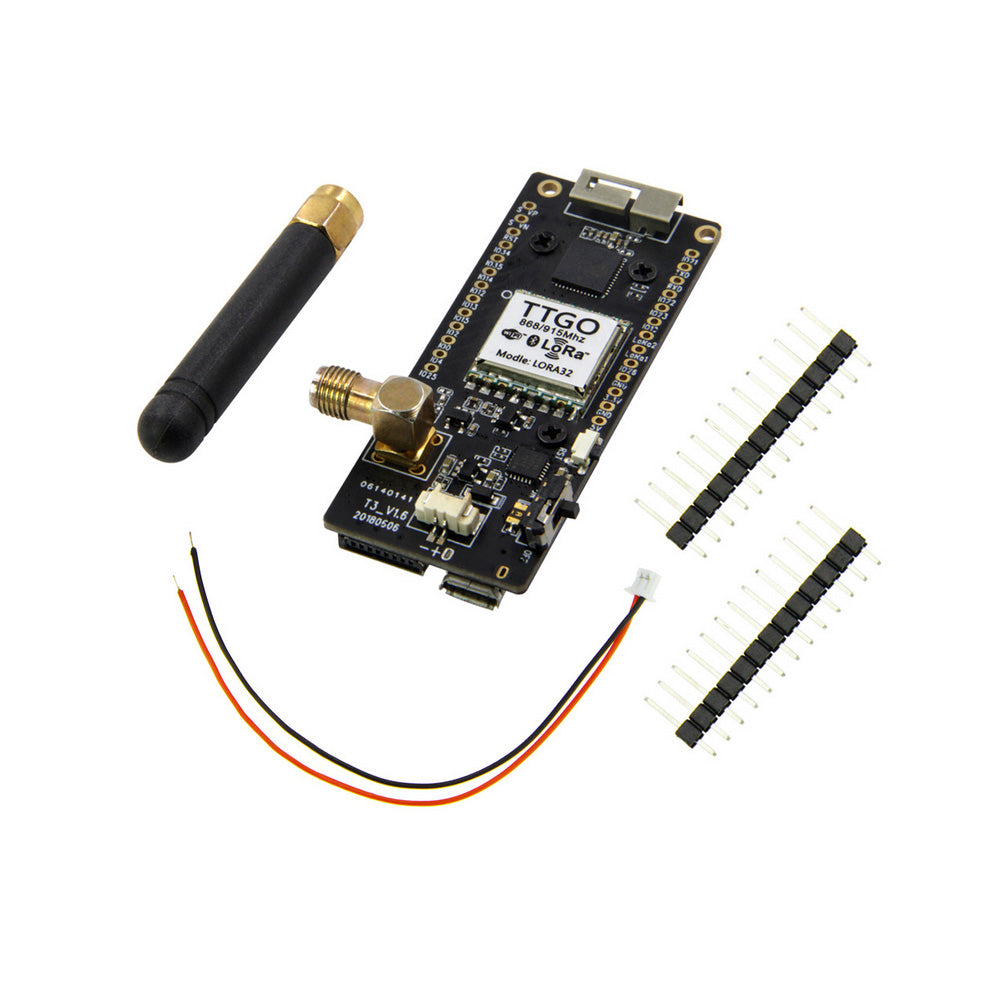

Package List:
- 1 x Wireless Module
- 2 x Pin
- 1 x Antenna
- 1 x Power Cord
