LTC1966 Converter Precision Micropower Delta RMS to DC Convert Module
LTC1966 Converter Precision Micropower Delta RMS to DC Convert Module
SKU:012669
Regular price
$10.99
![]()
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155
Description:
Features:
Package Included:

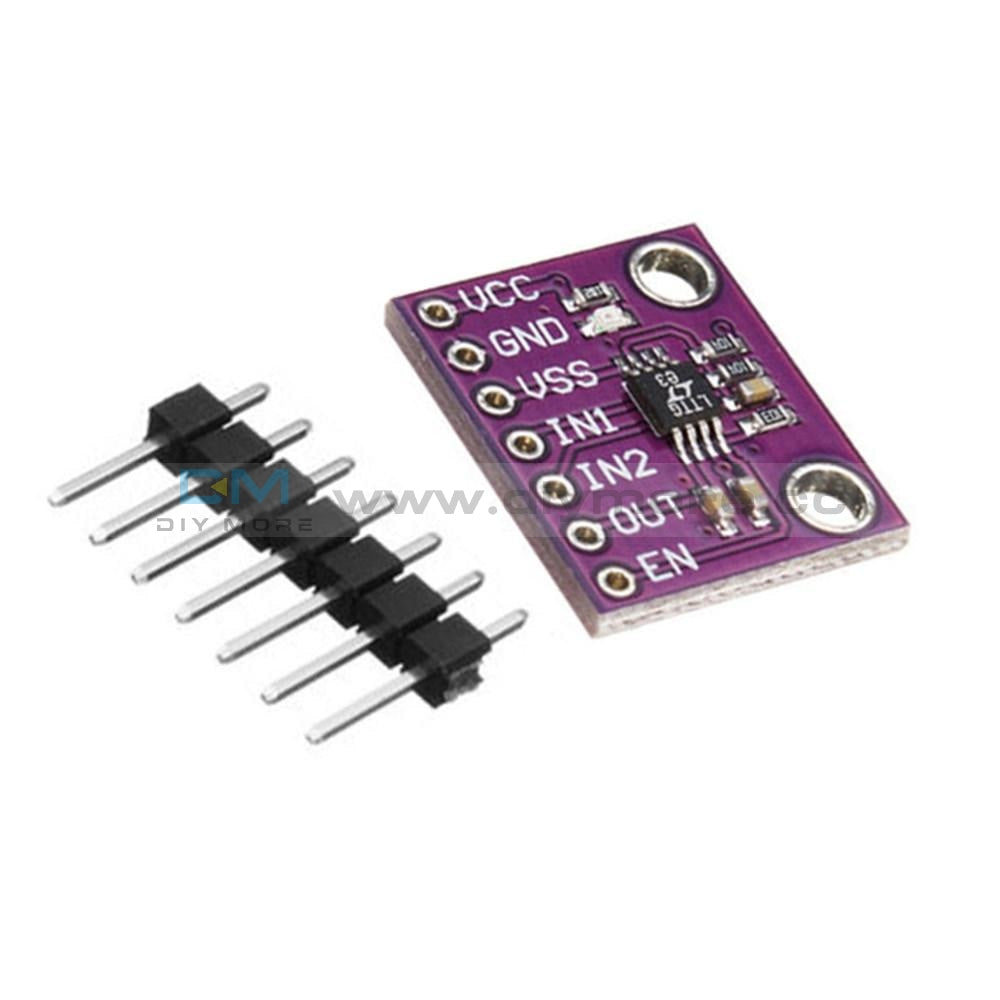

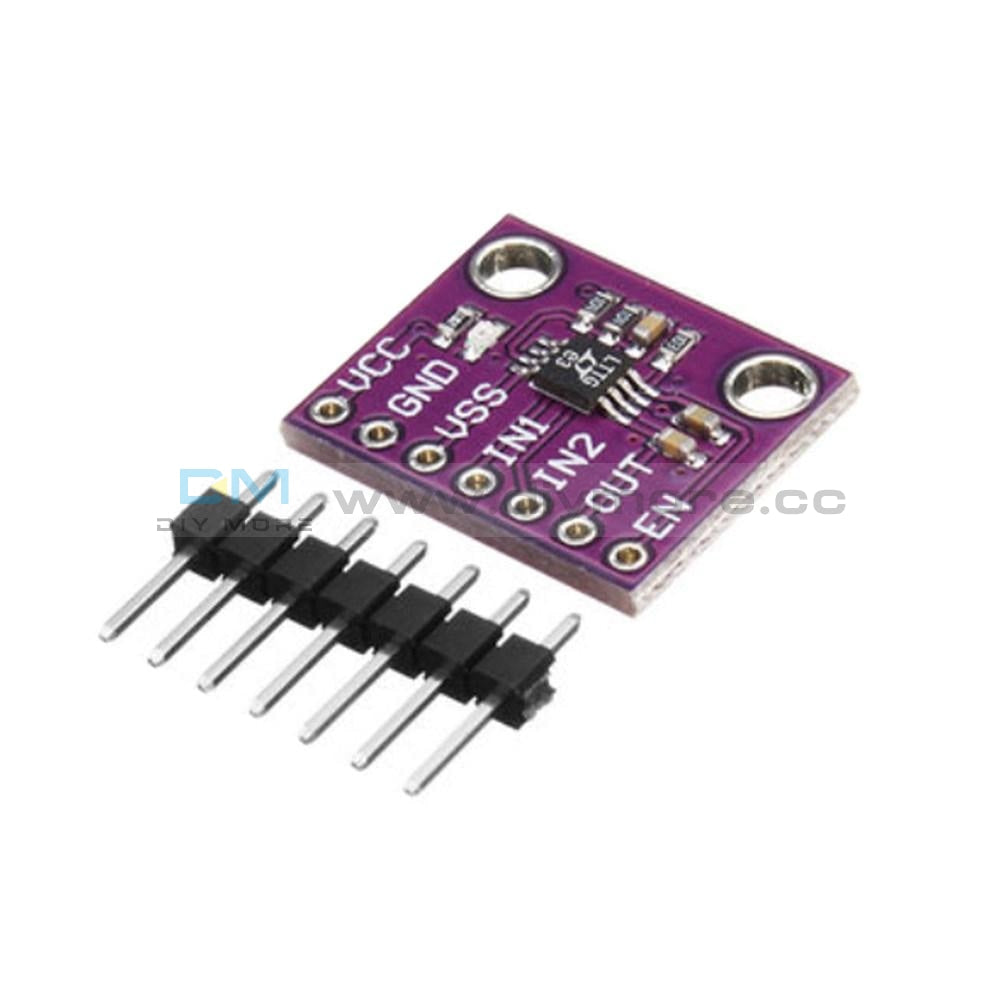

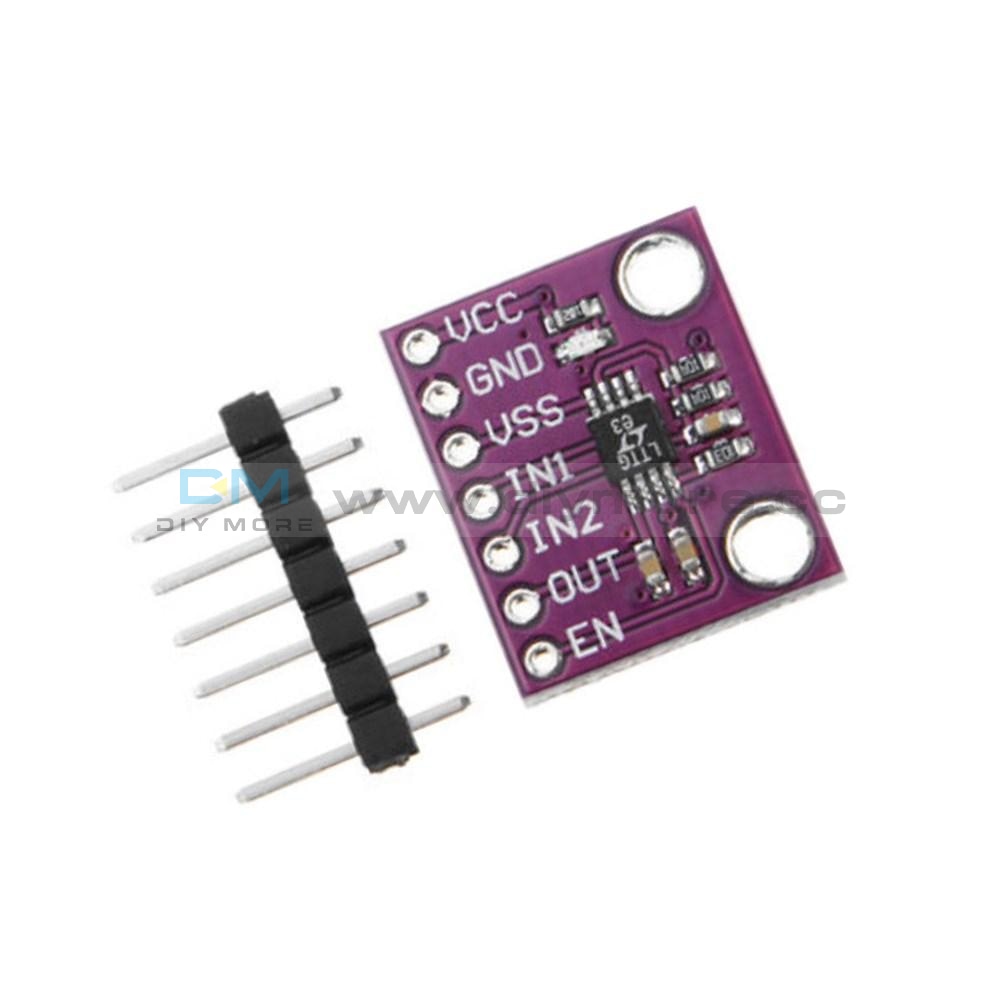

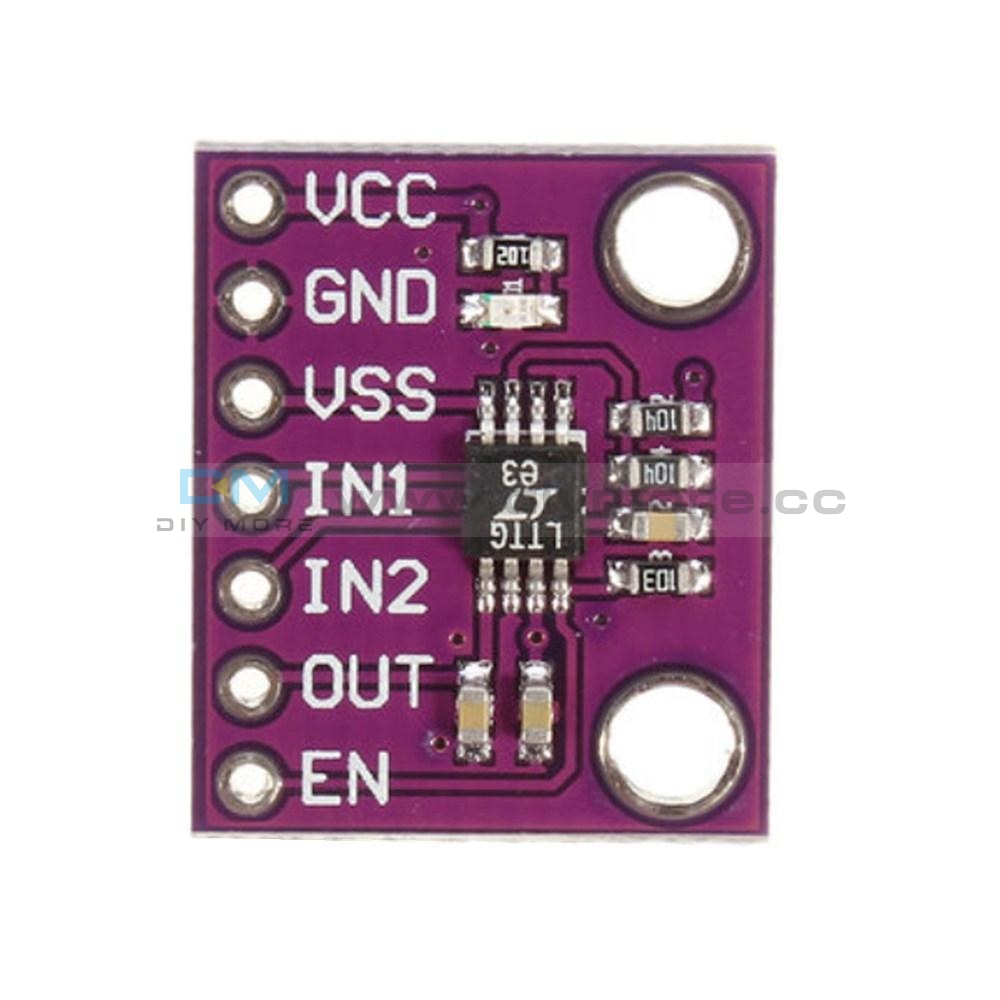

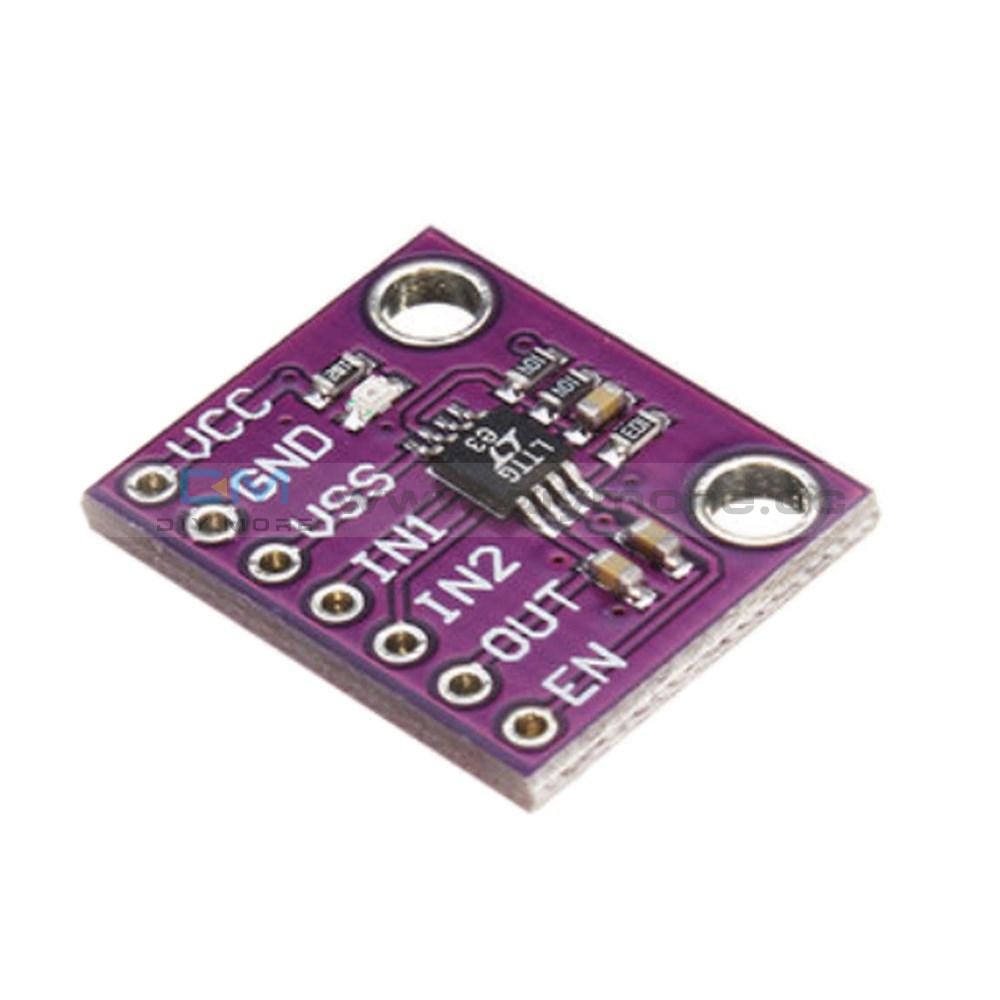

1 x LTC1966 Precision Micropower RMS to DC Converter Module
- The LTC1966 is a true RMS-to-DC converter Module.
- The internal delta-sigma circuitry to use,more accurate, lower power and dramatically more flexible than conventional log-antilog RMS-to-DCconverl ers.
- The LTC1966 accepts single ended or differential inputsignals (for EM/RFI rejection) and supports crest factors up to 4.
- Common mode input range is rail-to-rail. Differ-ential input range is 1VpEAK, and offers unprecedented lin-earity. Unlike previouslyavailable RMS-to-DCconverters, the superior linearity of the LTC1966 allows hassle-free system calibration at any input voltage.
- The LTC1966 also has a rail-to-rail output with a separateoutput reference pin providing flexible levei shitting.
- The LTC1966 operates on a single power supply from 2.7V to 5.5V or dual supplies up to ±5.5V. Alow power shut down mode reduces supply current to 0.5uA.
- The LTC1966 is insensitive to PC board soldering andstresses, as well as operating temperature.
Features:
- No-Hassle Simplicity:
- True RMS-DC Conversion with Only One External Capacitor
- High Accuracy:
- 0.1% Gain Accuracy from 50Hz to 1kHz
- 0.25% Total Error from 50Hz to 1kHz
- High Linearity:
- 0.02% Linearity Allows Simple System Calibration
- Low Supply Current: 155uA Typ,170uA Max
- Ultralow Shutdown Current: 0.1yA
- Constant Bandwidth;
- Independent of Input Voltage 800kHz-3dB, 6kHz ±1%
- Flexible Supplies:
- 2.7V to 5.5V Single Supply
- Up to ±5.5V Dual Supply
Package Included:
1 x LTC1966 Precision Micropower RMS to DC Converter Module
