30V or 6.5A MOSFET MOS Power Controller Large Current Isolated Switch Module
30V or 6.5A MOSFET MOS Power Controller Large Current Isolated Switch Module
SKU:010479
Regular price
$4.99
![]()
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155
Description:

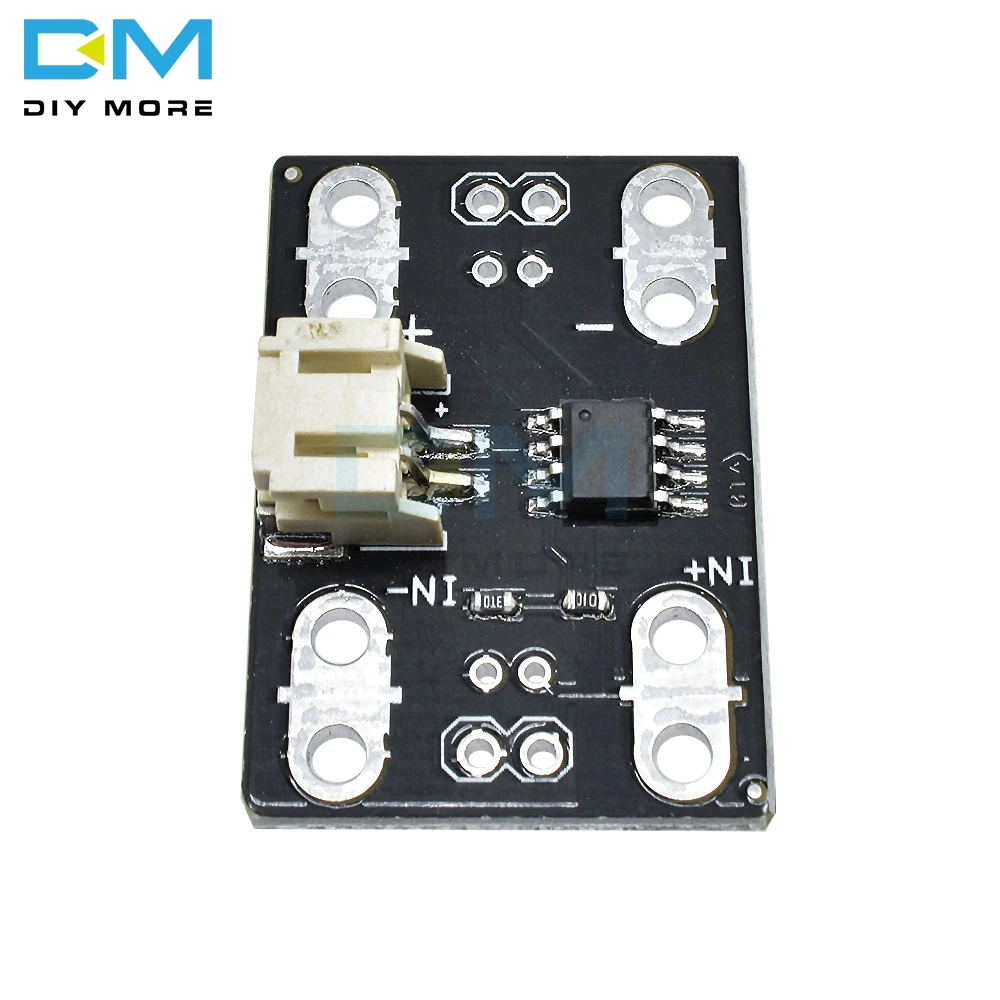

MOSFETs are awesome. They're like a switch that you flip electronically! This MOSFET Power Controller makes it easy to switch a battery supply on and off using your favorite microcontroller. The board also has sewable pads so you can use it in e-textile projects that need more juice.
The MOSFET Power Controller came about because microcontrollers, like the LilyPad. can only supply a limited amount of current. Sometimes, though, you want to control something that takes a lot of current like a fan or a heater (or a really bright LED). Simply connect a battery to the JST connector on the MOSFET Power Controller, connect the thing that needs power to the output, then connect one of the digital outputs of your microcontroller to the input pads. Now whenever you drive that pin on your controller HIGH, the battery will be connected!
The N-Channel MOSFET used in this design is rated for up to 30V and 6.5A although the board is really intended to be used at lower power. If you hook up anything beyond a 3.7V Li-Po battery, proceed at your own risk!
Feature:
Control High-Current Loads
JST Connector makes Changing Batteries a Snap
It's Sewable! (Also has standard 0.1" spaced headers.
Specification:
Item type: Switches
Features: Current Switch
Certification: CCC
Material: Plastic
Warranty: please check instruction
Switch type: Sensor Switch
Current: Switch
Package included:
1 x MOSFET MOS 30V or 6.5A Power Controller Large Current Isolated Switch Module
