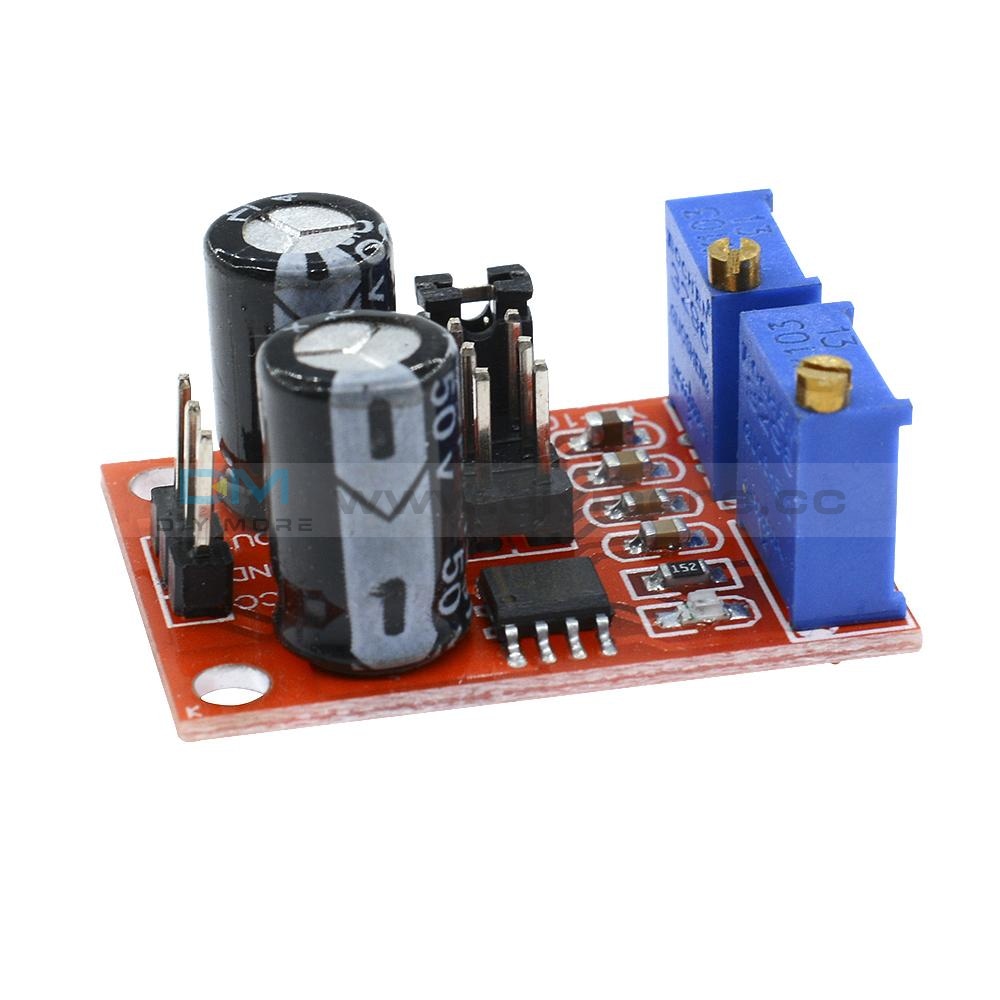

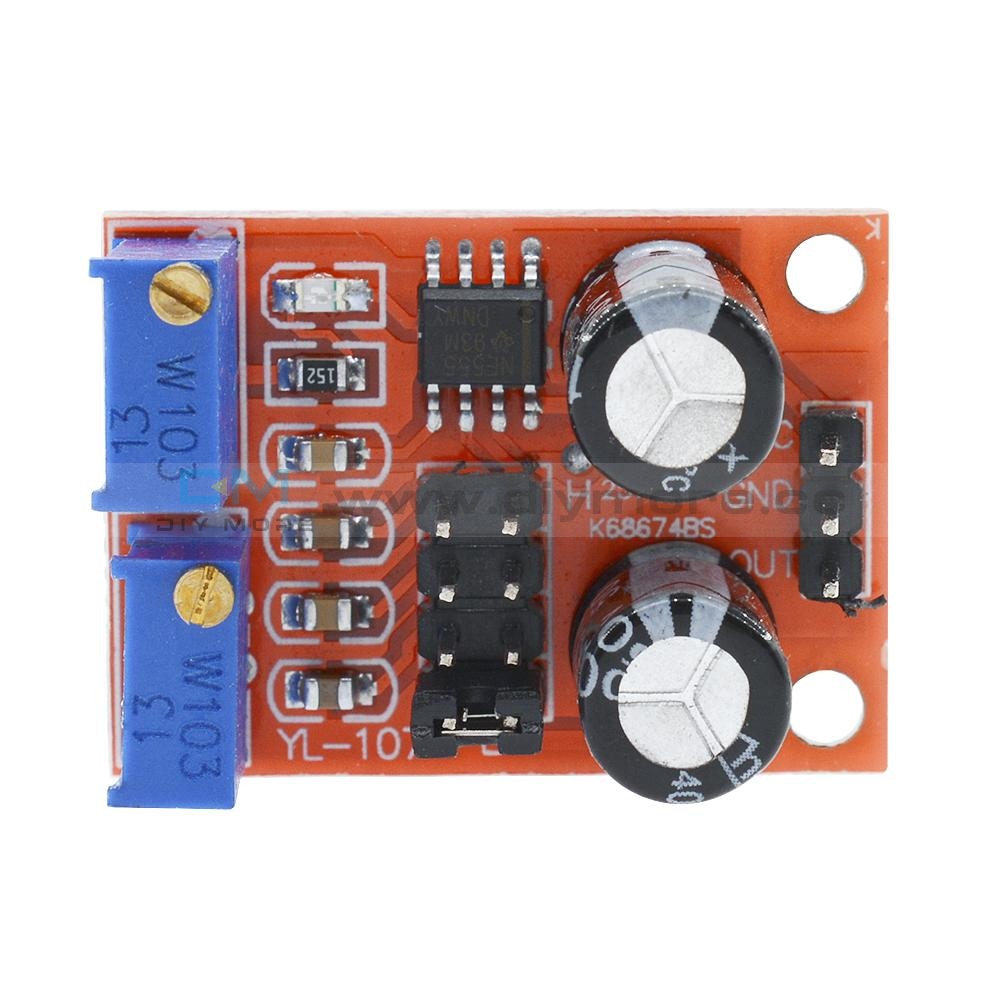

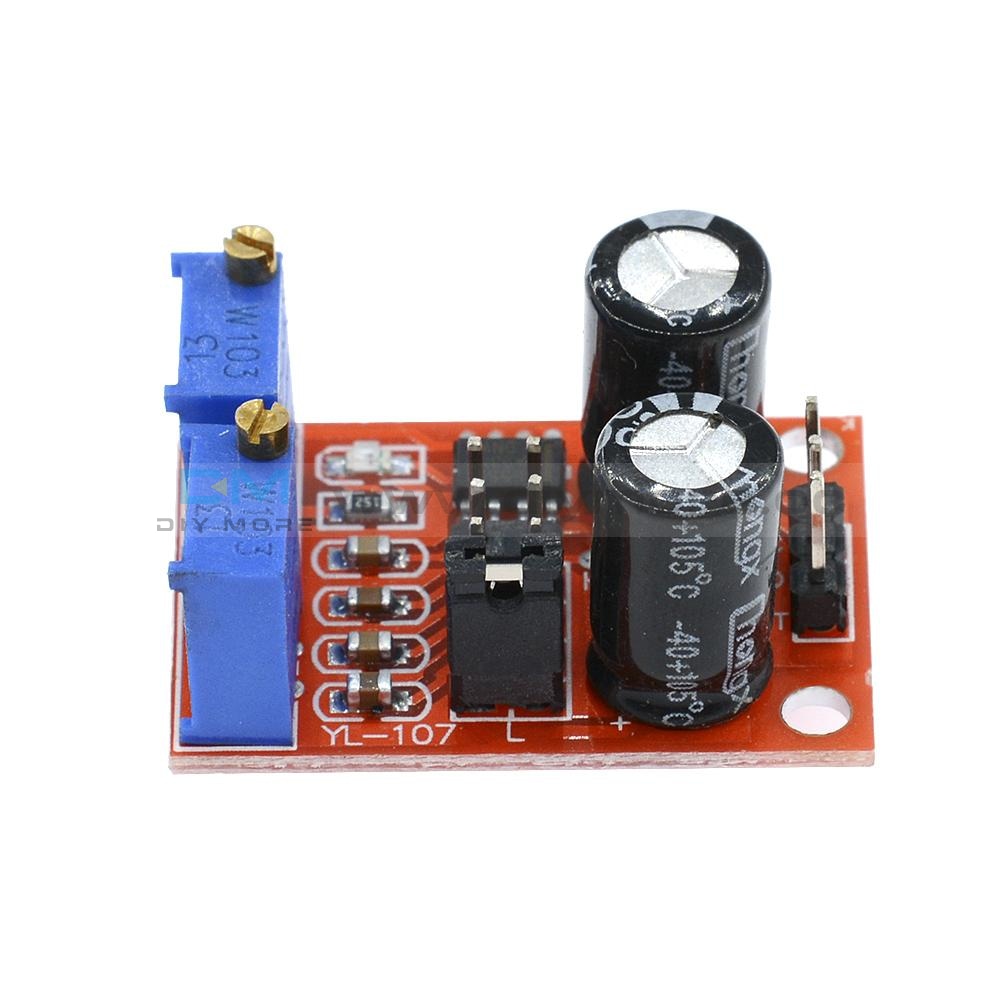

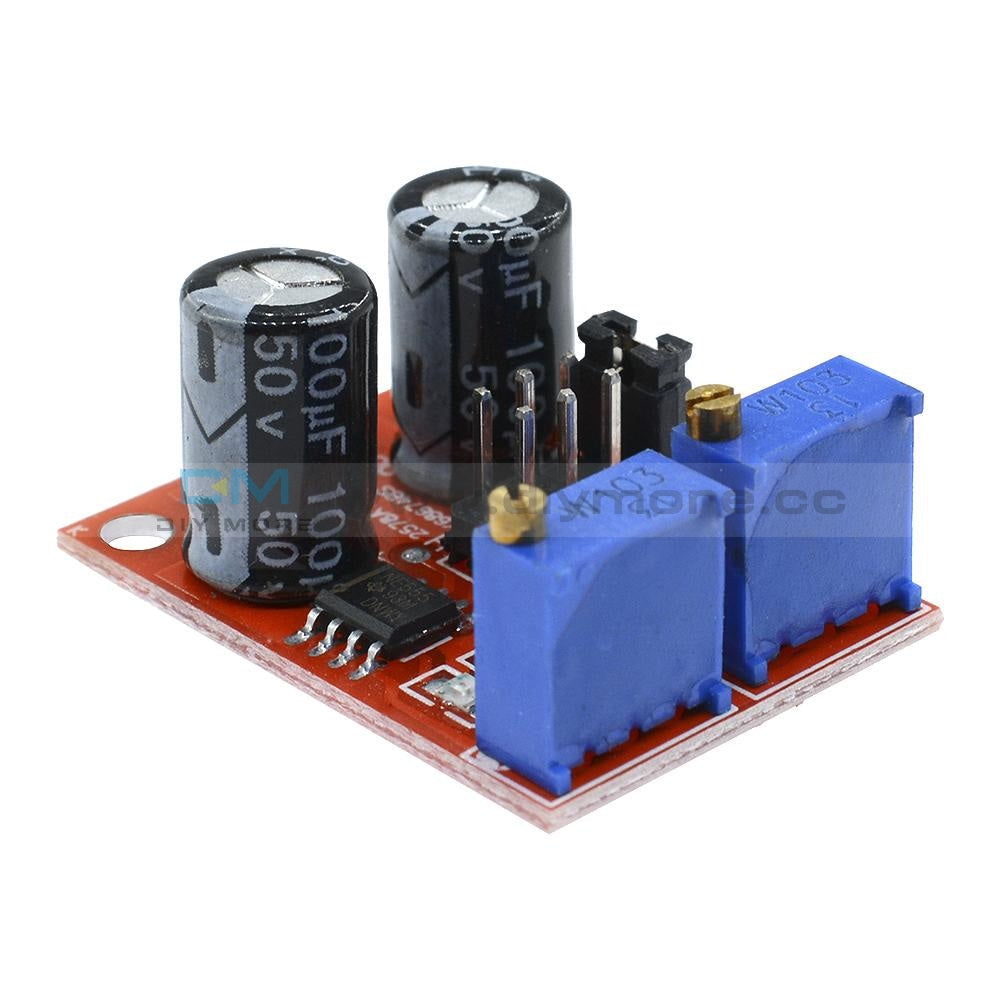

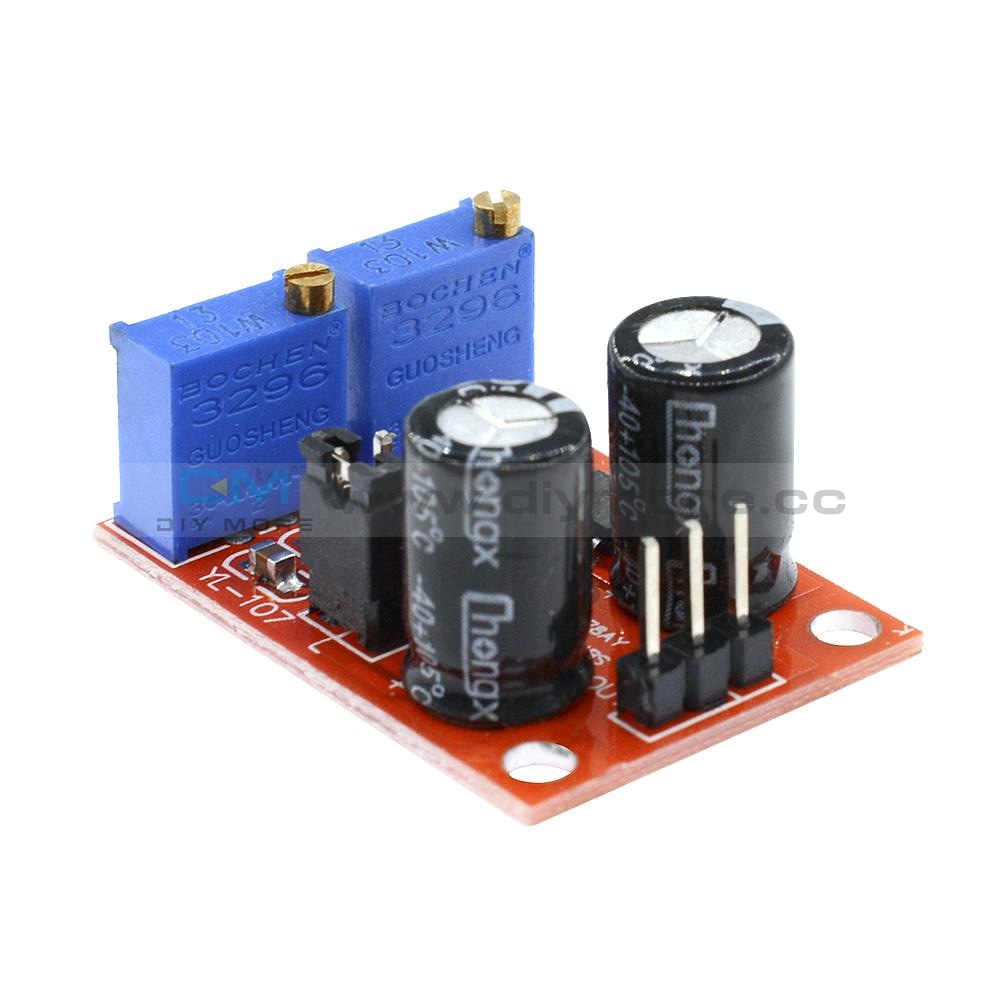

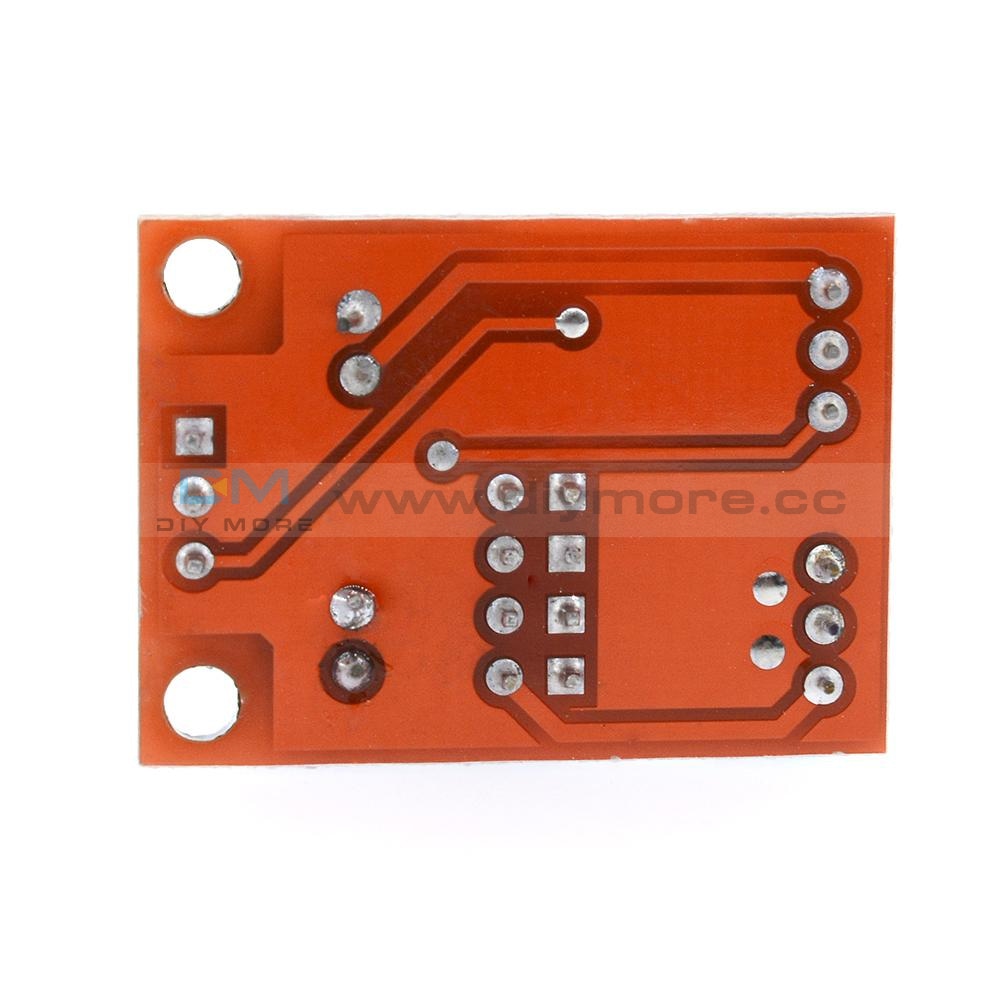

NE555 Frequency Wave Stepper Motor Driver Adjustable Module Duty Cycle Square WC
NE555 Frequency Wave Stepper Motor Driver Adjustable Module Duty Cycle Square WC
SKU:010409
Regular price
$3.99 USD
![]()
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155
Feature:
Main chip: NE555;
Input Voltage: 5V-15VDC.
when power supply is 5V , the output current can be 15MA around;
when 12V power supply, the output current can 35MA around;
Input current: >=100MA
Output amplitude: 4.2V V-PP to 11.4V V-PP. (Different input voltage, the output amplitude will be different)
Maximum output current: >=15MA (when 5V power supply, V-PP greater than 50%),
>=35MA (when 12V power supply, V-PP greater than 50%)
Output with LED indication (low level ,LED will on; high level, LED will off; low frequency, the LED flashes);
Size: Approx.3.1 * 2.4cm/1.22 * 0.94inch;
Package Included:
1 x NE555 Frequency Wave Stepper Motor Driver Adjustable Module Duty Cycle Square
Main chip: NE555;
Input Voltage: 5V-15VDC.
when power supply is 5V , the output current can be 15MA around;
when 12V power supply, the output current can 35MA around;
Input current: >=100MA
Output amplitude: 4.2V V-PP to 11.4V V-PP. (Different input voltage, the output amplitude will be different)
Maximum output current: >=15MA (when 5V power supply, V-PP greater than 50%),
>=35MA (when 12V power supply, V-PP greater than 50%)
Output with LED indication (low level ,LED will on; high level, LED will off; low frequency, the LED flashes);
Size: Approx.3.1 * 2.4cm/1.22 * 0.94inch;
Package Included:
1 x NE555 Frequency Wave Stepper Motor Driver Adjustable Module Duty Cycle Square
