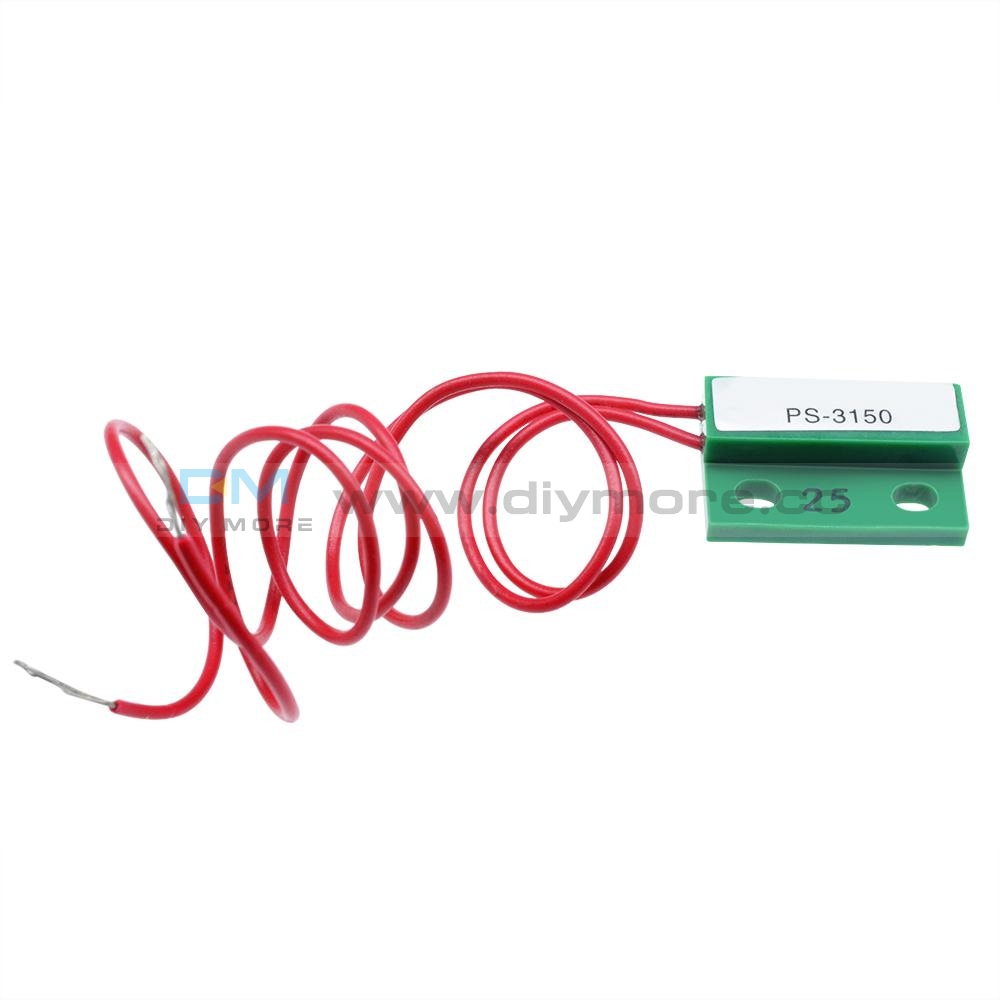

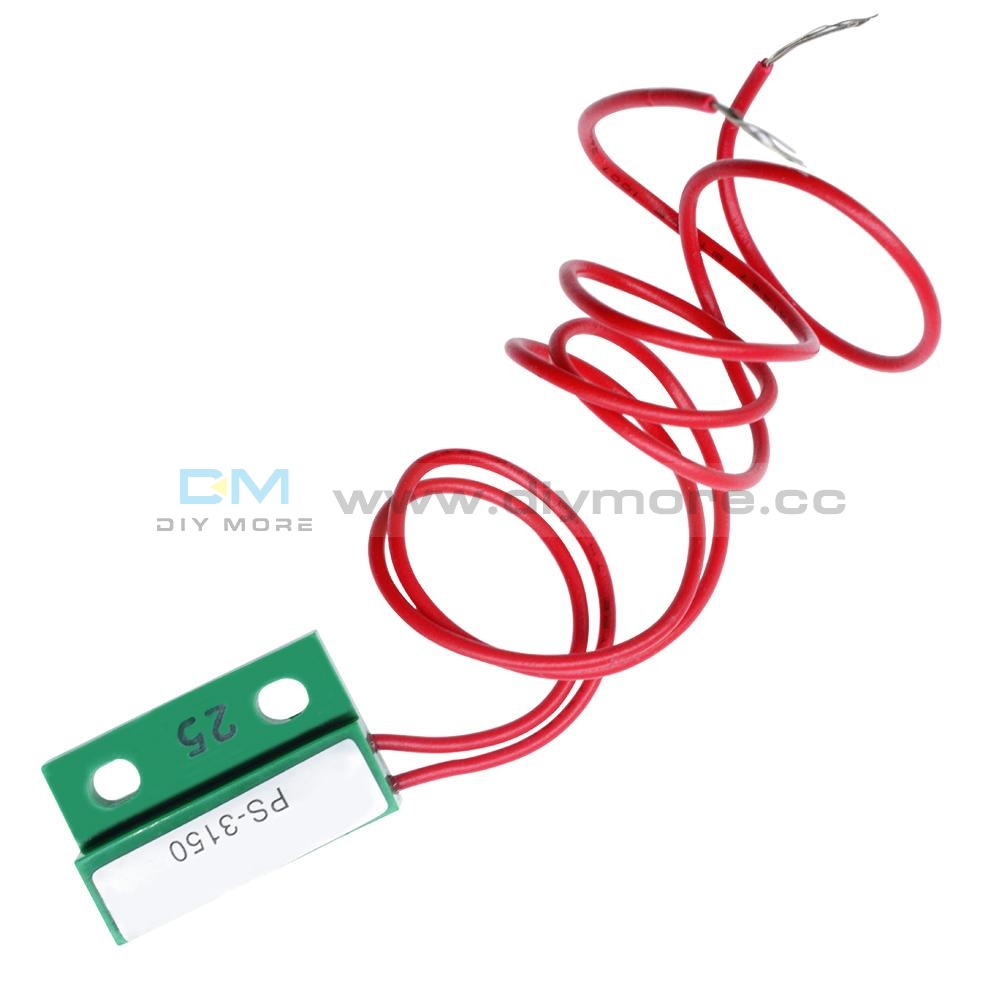

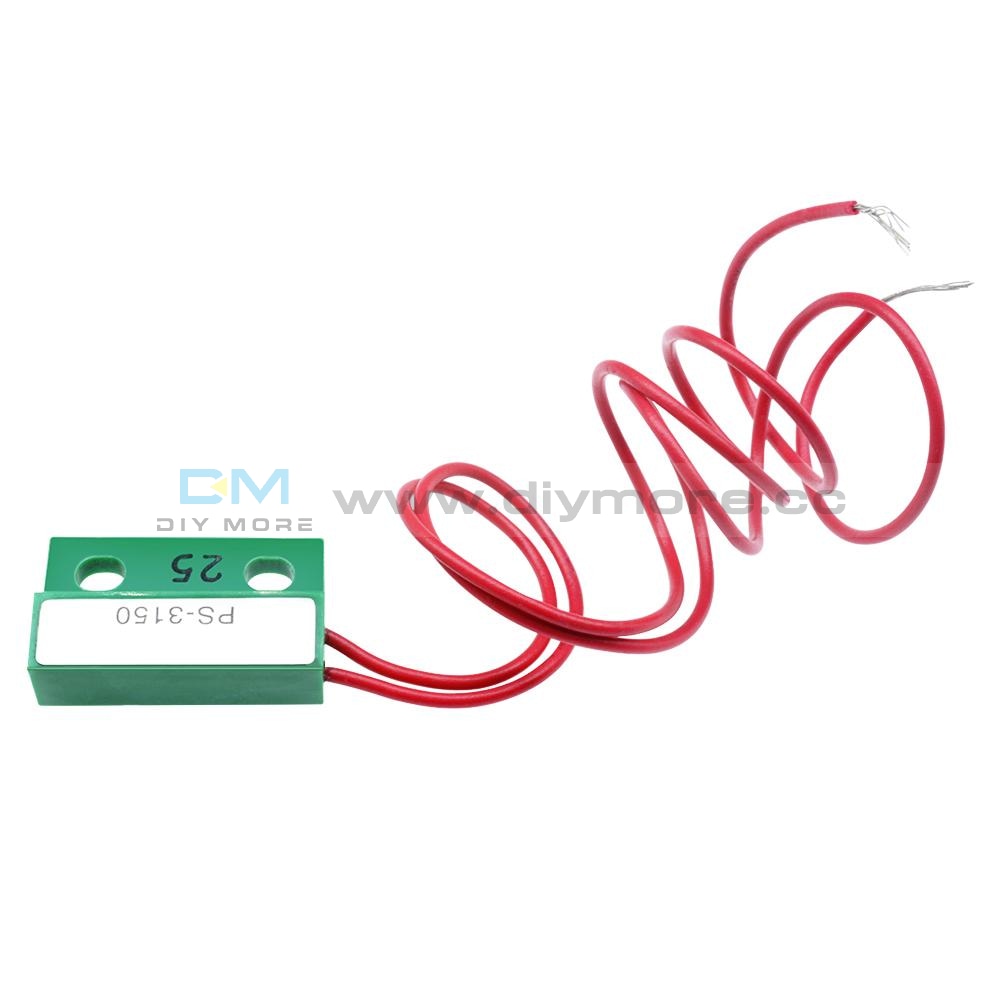

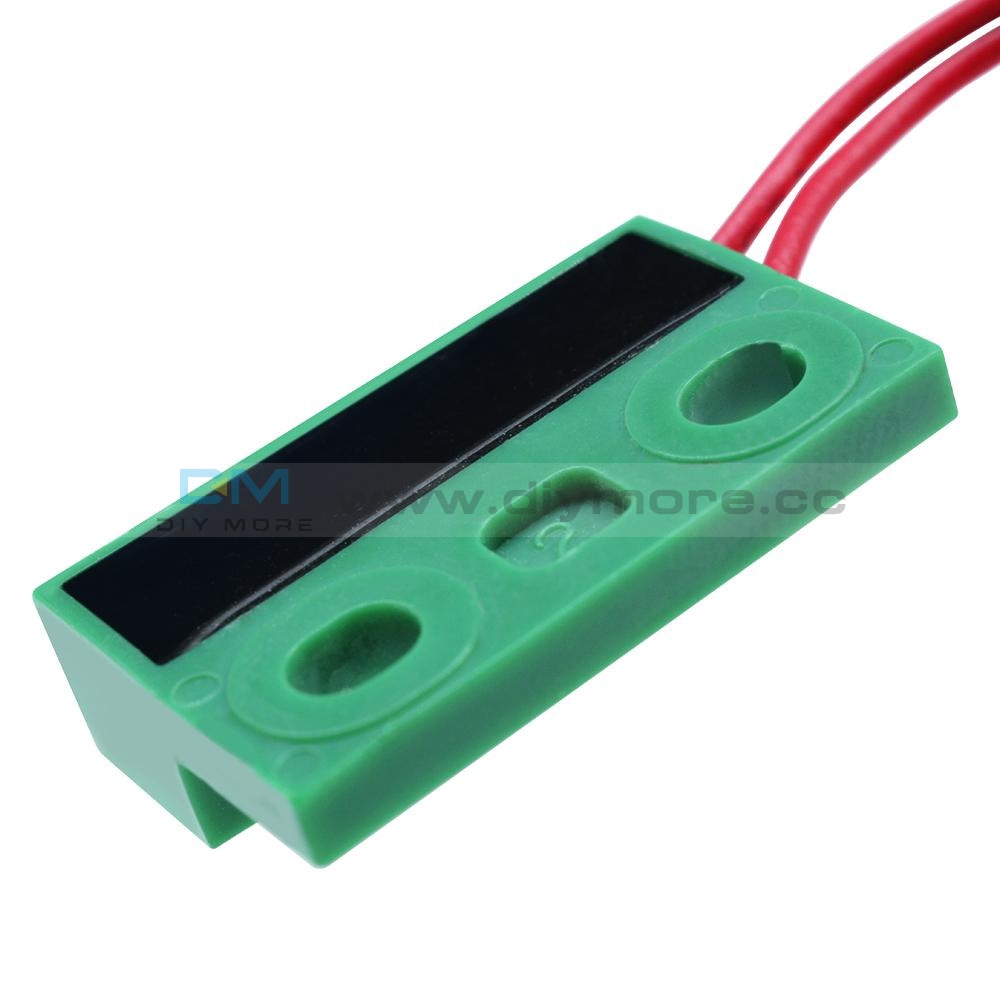

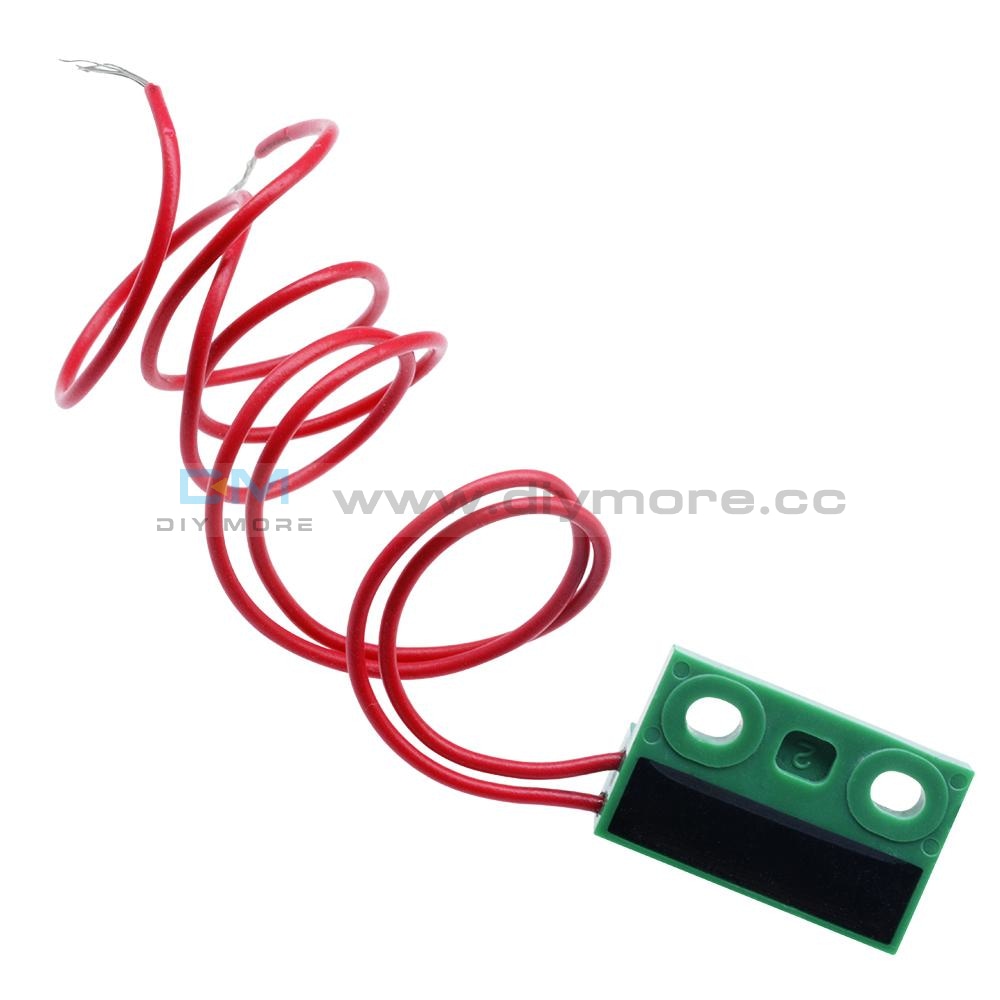

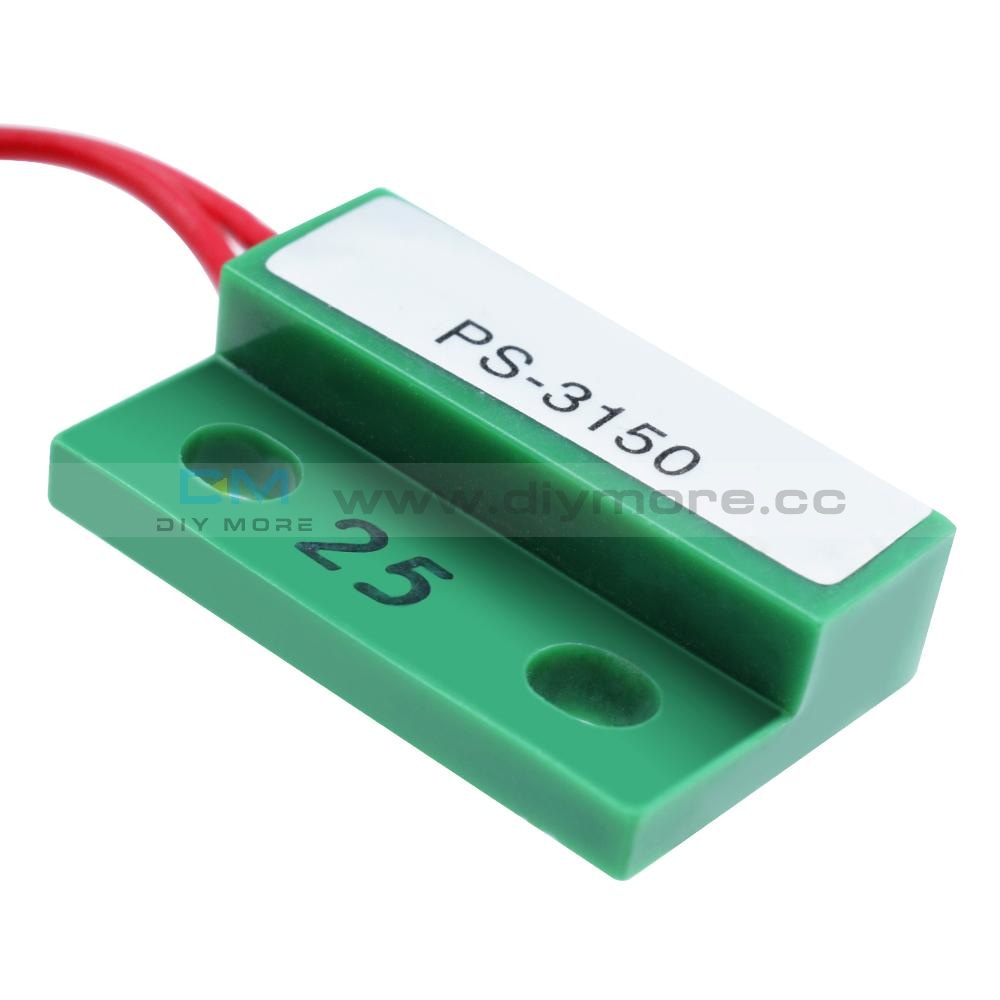

Normally Open Proximity Magnetic Sensor / Reed Switch Aleph PS-3150 Perfect AL
Normally Open Proximity Magnetic Sensor / Reed Switch Aleph PS-3150 Perfect AL
SKU:011586
Regular price
$4.99
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155
Features:
movement speed quickly
suitable for high operating frequency products
the contact resistance with a high anti-corrosion and wear resistance
long life, stable switching operation can be obtained
the control portion of the seal in the housing, is not affected by the external environment
Applications: All controls can be used to detect magnetic switch: used in liquid level sensors, security alarm systems, proximity sensor, instrumentation, automotive electronics, magnetic switches, treadmills, odometer, and other control circuits
Operating Characteristics:
Scope of work AT10-30
Release range ATMin 5
Working time (maximum) (energized) ms1.0
Bounce time (maximum) (energized) ms1.5
Release time (maximum) (energized) ms1.0
Resonant frequency (typical) Hz4000
Electrical Characteristics:
Switching power (maximum) W10
DC switching voltage (maximum) V220
AC switching voltage, RMS (maximum) V220
DC switching current (maximum) mA500
AC switching current, RMS (maximum) mA500
Breakdown Voltage (Minimum) V250
Contact Resistance (initial max) m W200
Contact Resistance (initial typ) m W100
Contact Capacitance (maximum) without test coil pF0.7
Insulation Resistance (Min) RH £ 45% M W103
Package Included:
1 x Aleph PS-3150 Magnetic Sensor Switch
