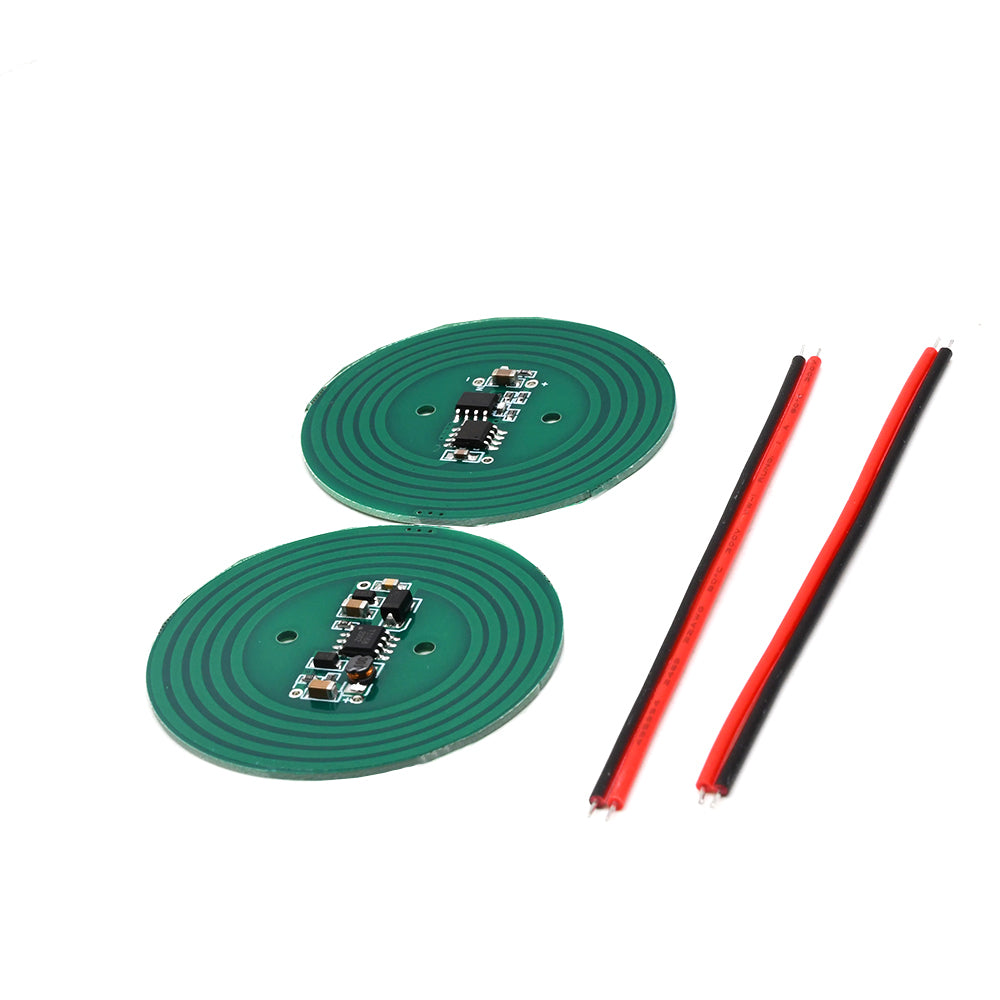

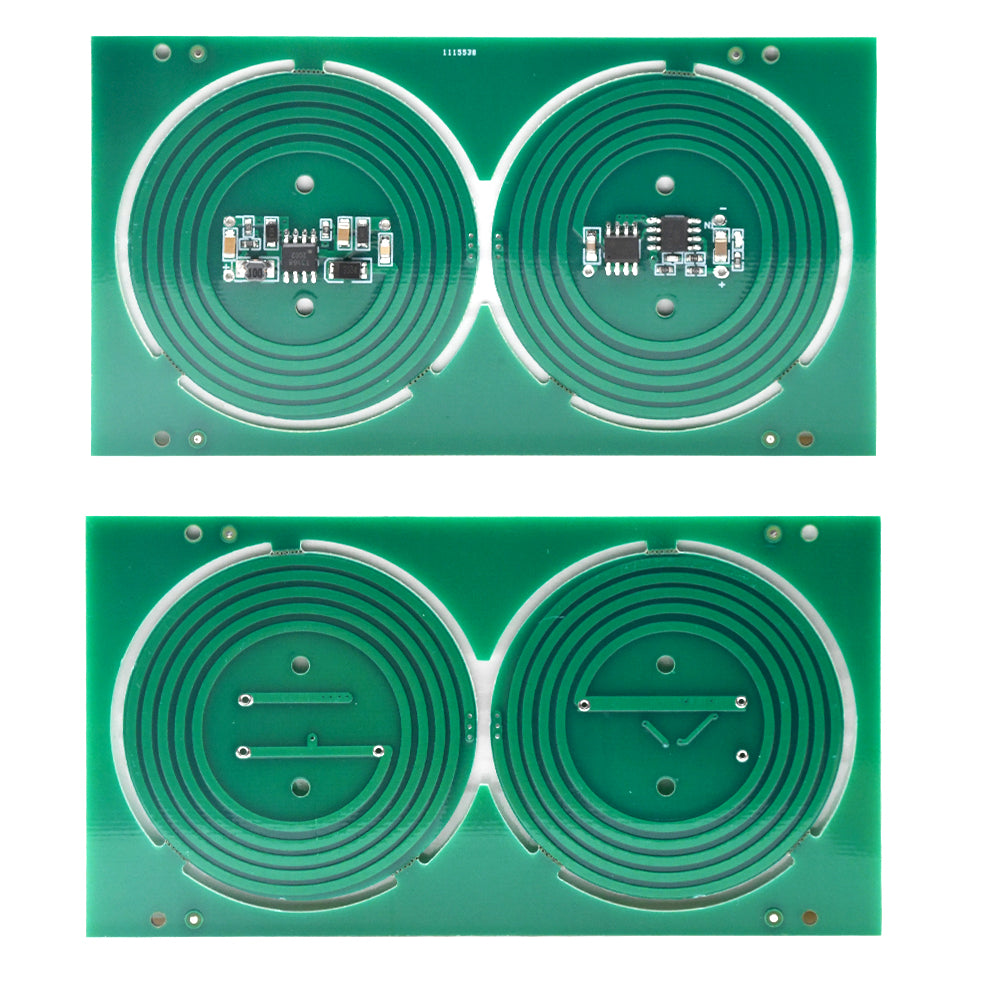

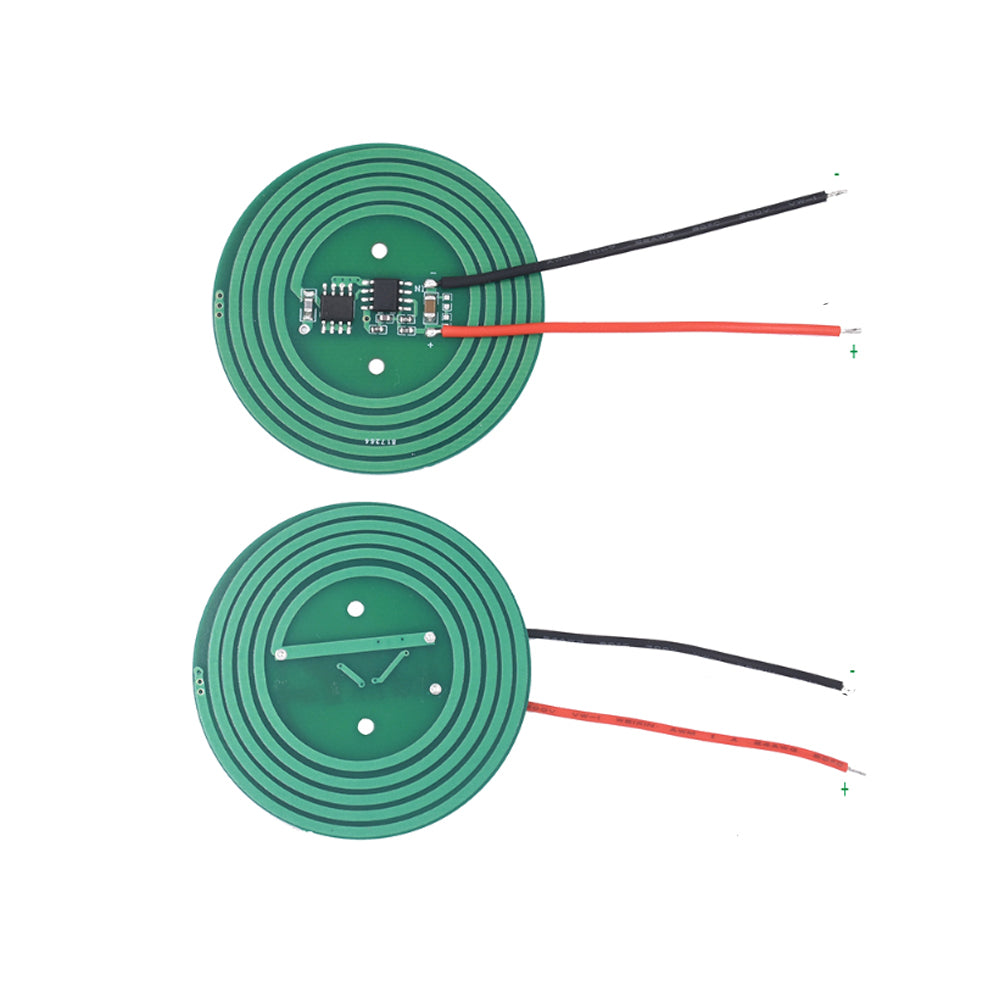

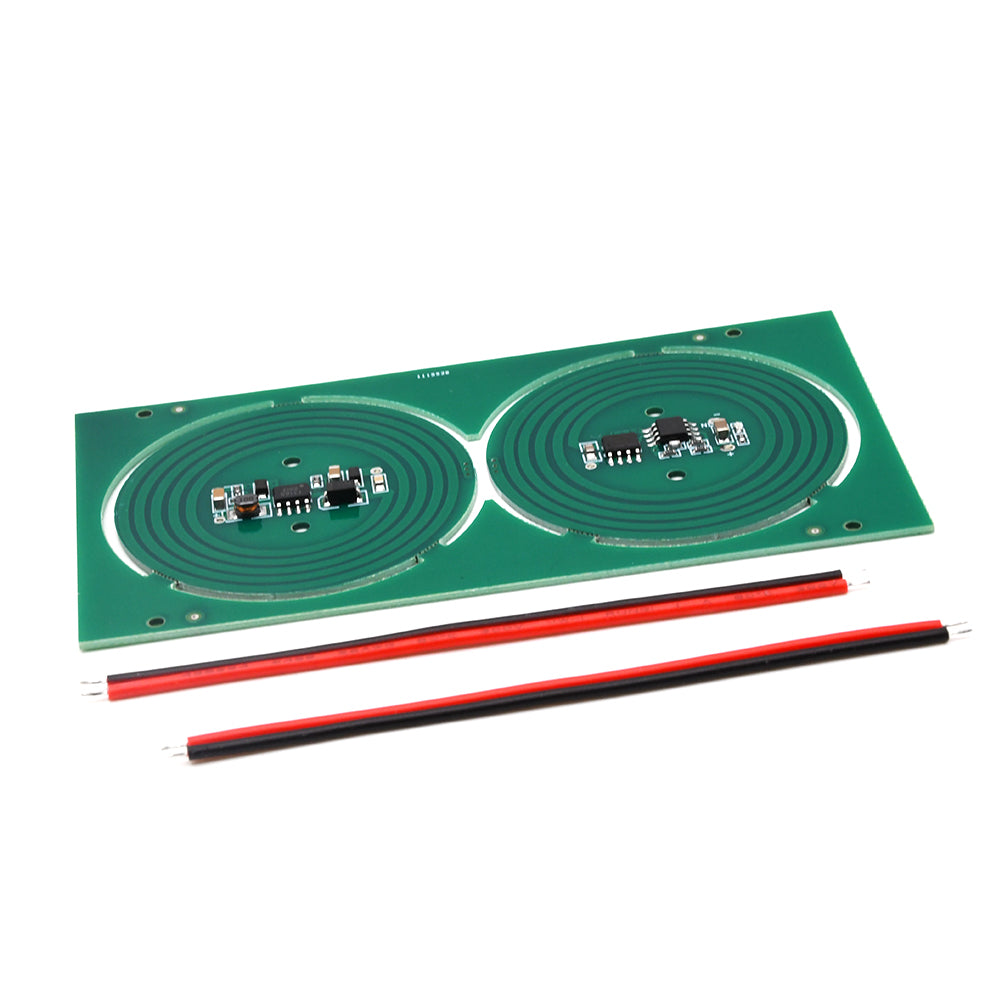

PCB Type 5V800mA Long-Distance High-Current Wireless Power Supply Wireless Charging Module For Circuit XKT412-48

PCB Type 5V800mA Long-Distance High-Current Wireless Power Supply Wireless Charging Module For Circuit XKT412-48

SKU:XJ0021
Regular price $9.99

Product description:

  • XKT412-48
  • Input voltage: 9 ~ 12v
  • PCB transmission module size: outer diameter: 50mm * thickness: 0.8mm
  • Receiver PCB module size: outer diameter: 50mm * thickness: 0.8mm
  • Receive the maximum current of 5V800mA to receive the output
  • Operating distance: 5mm ~ 23mm
  • The distance between receiving PCB and transmitting PCB is related to the output voltage and current
  • At 5mm, the output is 5V800mA
  • At 6mm, the output is 5V800mA
  • At 7mm, it receives a 5V700mA output
  • At 8mm, it receives a 5V700mA output
  • At 9mm, the output is 5V600mA
  • At 10mm, the output is 5V500mA
  • At 11mm, the output is 5V500mA
  • At 12mm, the output is 5V400mA
  • At 13mm, the output is 5V350mA
  • At 14mm, the output is 5V300mA
  • At 15mm, the output is 5V250mA
  • At 16mm, the output is 5V200mA
  • At 17mm, the output is 5V200mA
  • At 18mm, the output is 5V150mA
  • At 19mm, the output is 5V150mA
  • At 20mm, the output is 5V120mA
  • At 21mm, the output is 5V100mA
  • At 22mm, the output is 5V100mA
  • At 23mm, the output is 5V100mA

Note:

  • The distance must be more than 5mm
trust seal
  • guaranteeQuality checked
  • Special gift cardsSpecial gift cards
  • Free return Within 60 days
  • Consultancy86-0755-85201155

Product description:

  • XKT412-48
  • Input voltage: 9 ~ 12v
  • PCB transmission module size: outer diameter: 50mm * thickness: 0.8mm
  • Receiver PCB module size: outer diameter: 50mm * thickness: 0.8mm
  • Receive the maximum current of 5V800mA to receive the output
  • Operating distance: 5mm ~ 23mm
  • The distance between receiving PCB and transmitting PCB is related to the output voltage and current
  • At 5mm, the output is 5V800mA
  • At 6mm, the output is 5V800mA
  • At 7mm, it receives a 5V700mA output
  • At 8mm, it receives a 5V700mA output
  • At 9mm, the output is 5V600mA
  • At 10mm, the output is 5V500mA
  • At 11mm, the output is 5V500mA
  • At 12mm, the output is 5V400mA
  • At 13mm, the output is 5V350mA
  • At 14mm, the output is 5V300mA
  • At 15mm, the output is 5V250mA
  • At 16mm, the output is 5V200mA
  • At 17mm, the output is 5V200mA
  • At 18mm, the output is 5V150mA
  • At 19mm, the output is 5V150mA
  • At 20mm, the output is 5V120mA
  • At 21mm, the output is 5V100mA
  • At 22mm, the output is 5V100mA
  • At 23mm, the output is 5V100mA

Note:

  • The distance must be more than 5mm
