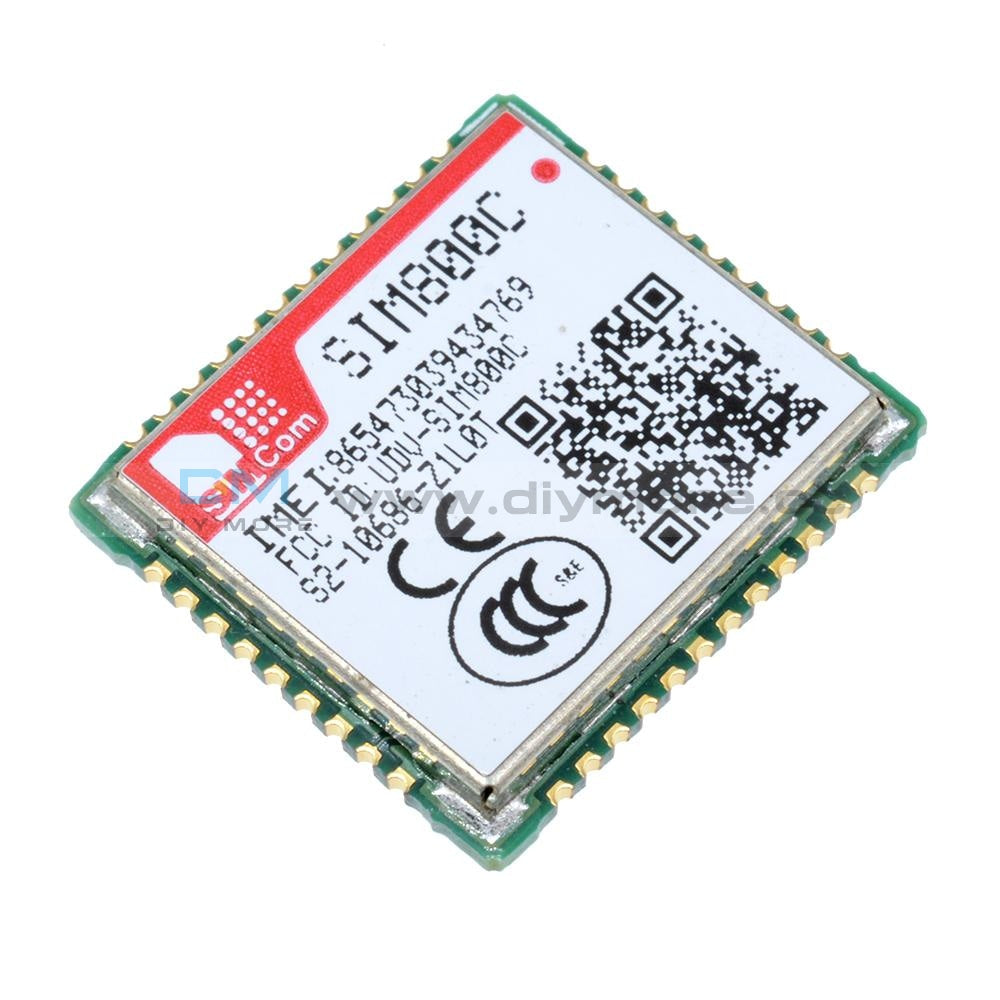

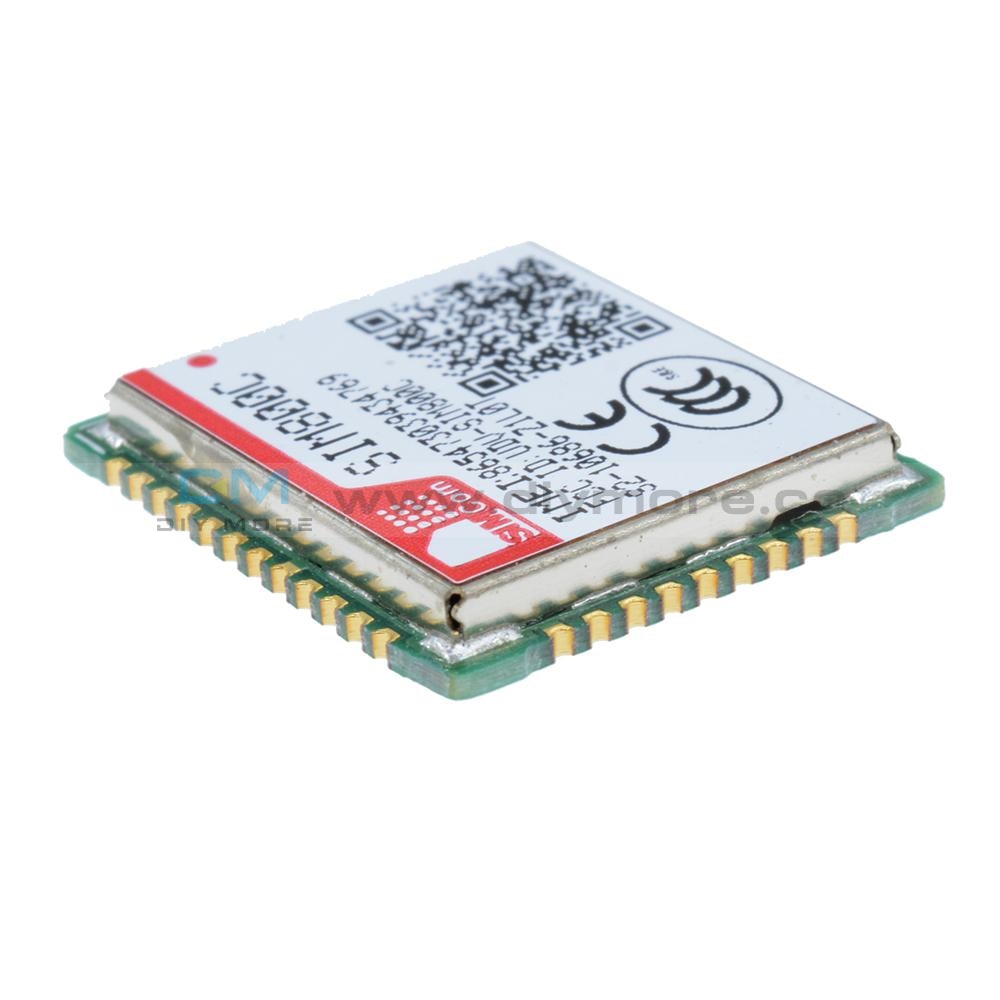

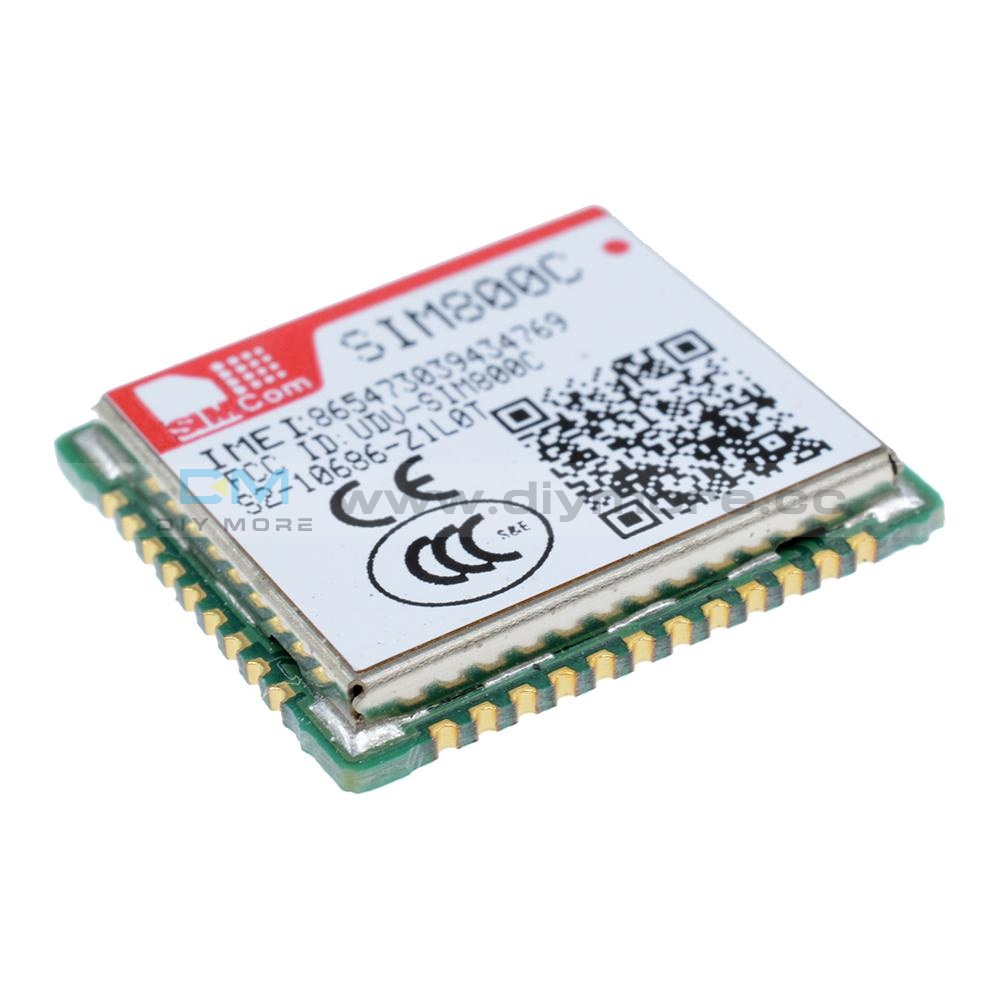

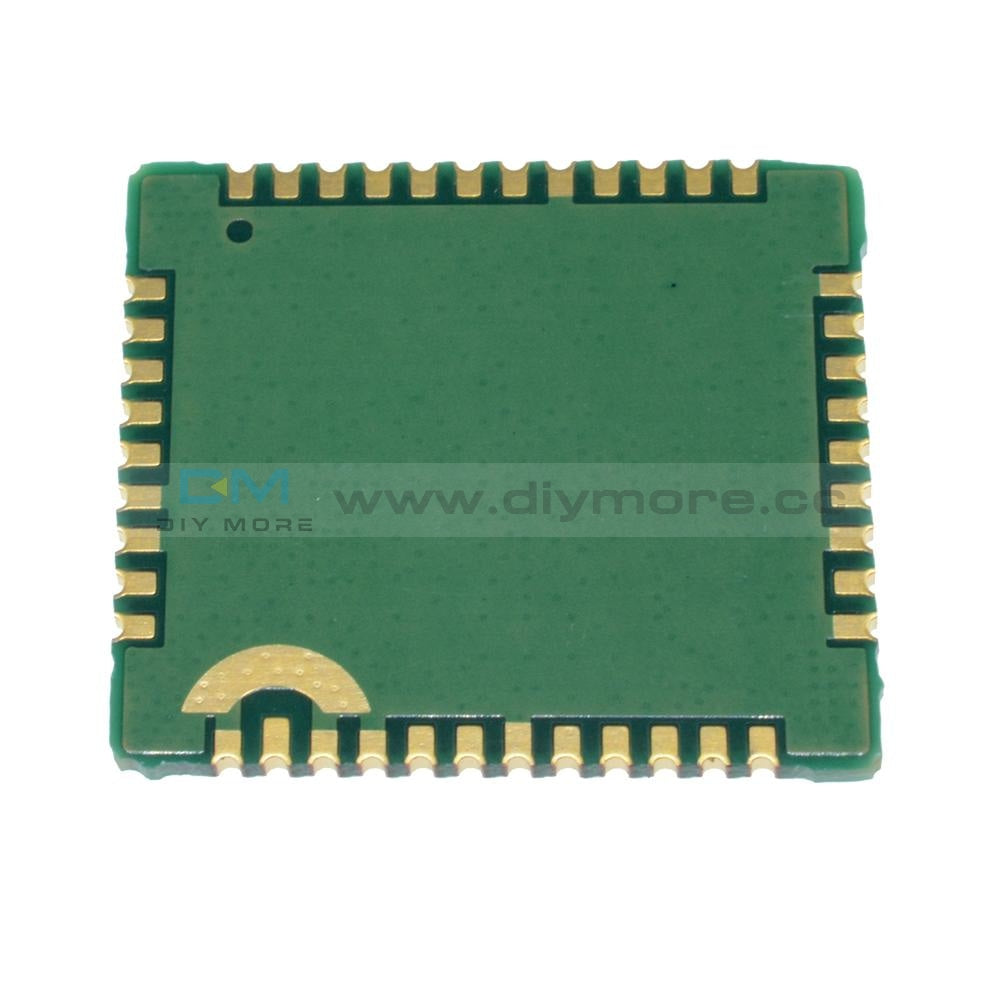

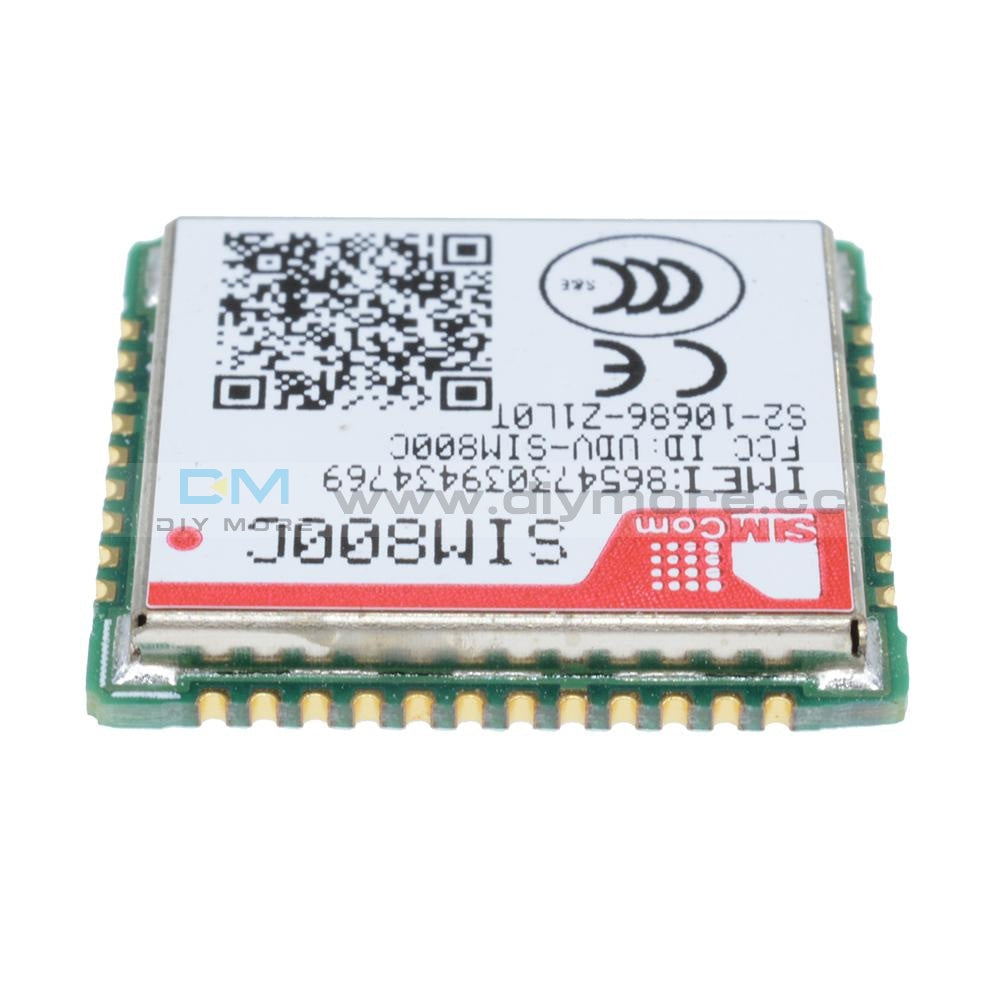

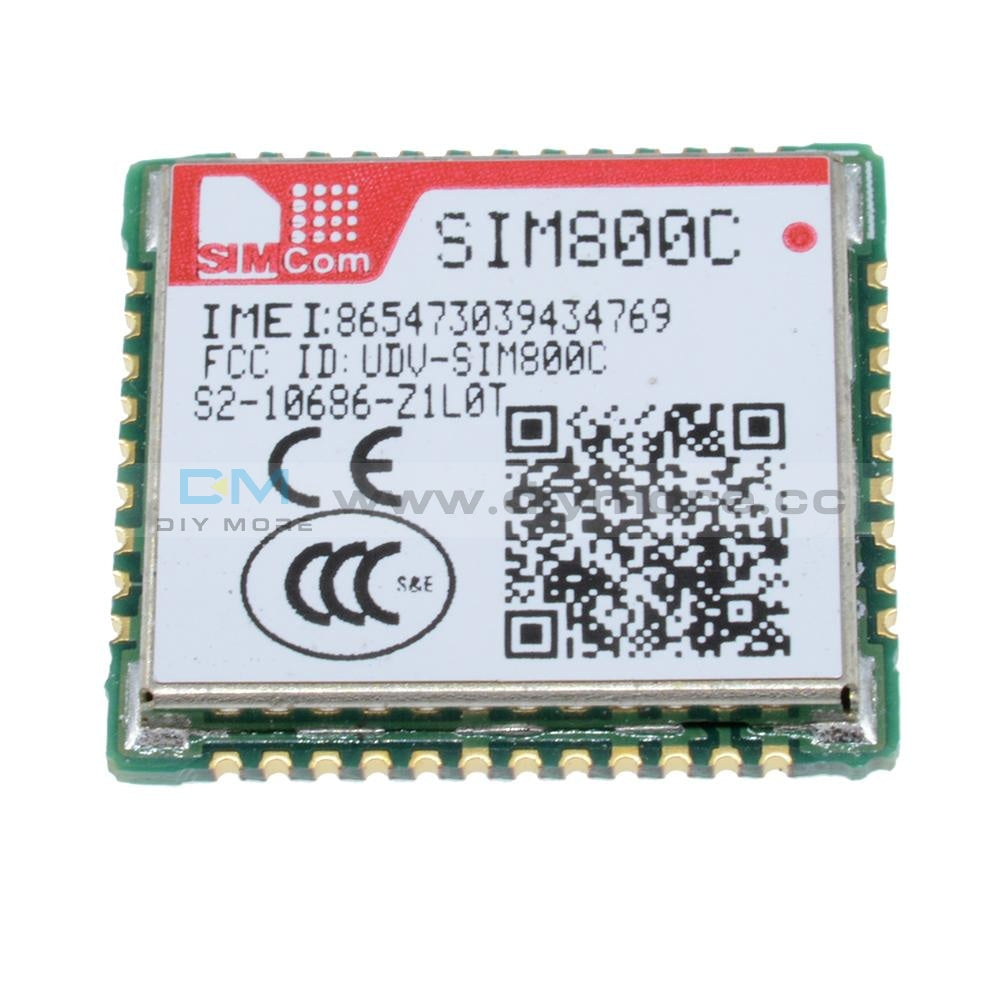

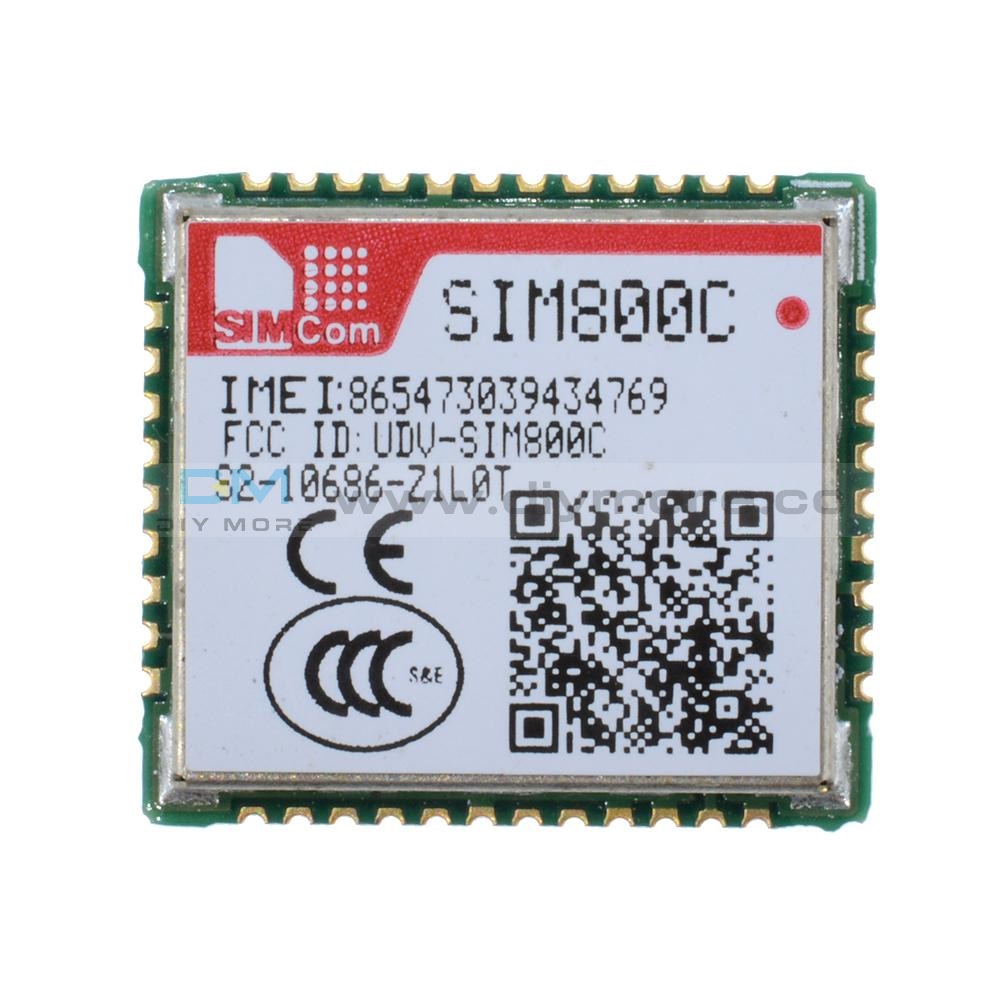

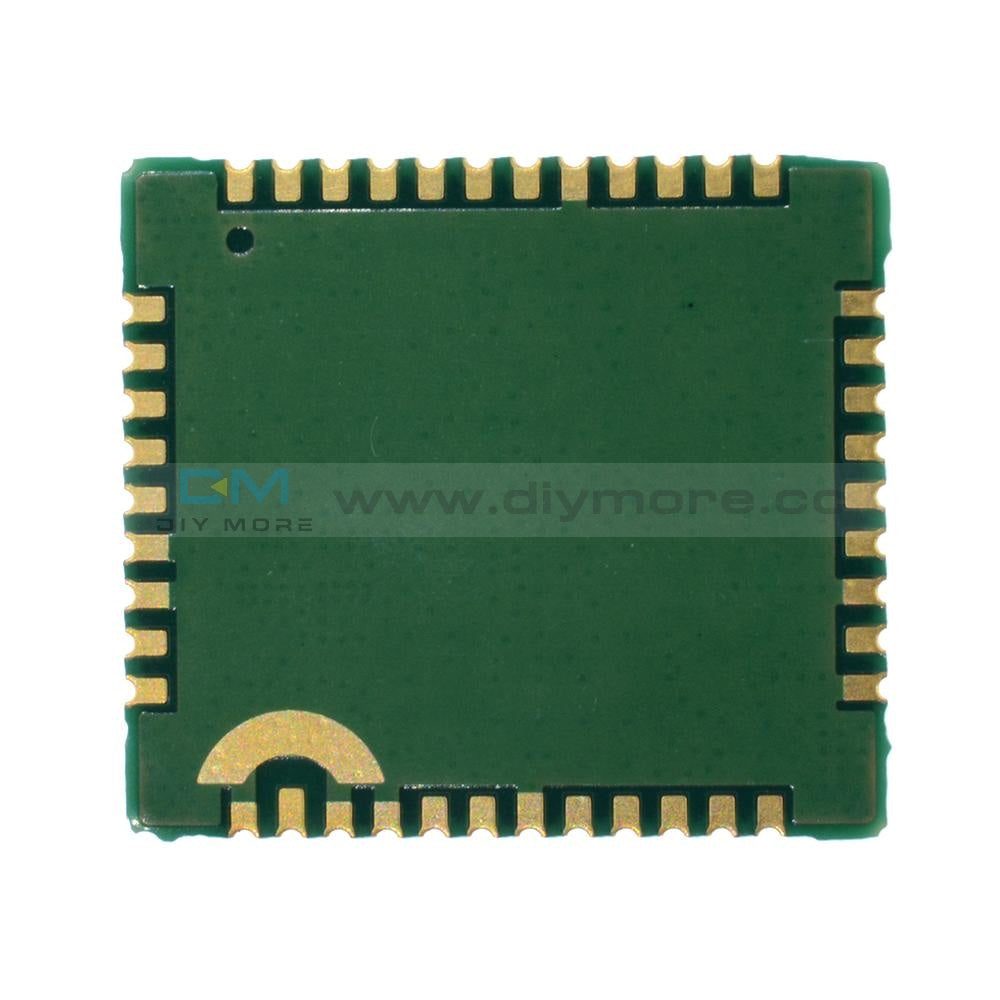

SIM800C GSM Module Quad Band SIM800C SMS DATA Transfer Voice Support TTS

SIM800C GSM Module Quad Band SIM800C SMS DATA Transfer Voice Support TTS

SKU:012390
Regular price $6.99

Description:
Communications module type:GSM/Bluetooth
Transmission:GPRS
Standard :2G
Frequency :1800MHz, 1900MHz, 850MHz, 900MHz
Transfer rate :85.6kbps
Supply voltage :3.4-4.4V DC
Module output power:1 W (class 1 @ 1800/1900MHz), 2W (class 4 @ GSM850/EGSM900)
Operating temperature :-40-85°C
Dimensions:17.6 x 15.7 x 2.3mm
Mounting:SMD
Case:42-pad SMD
Specifications for GPRS Data:
GPRS class 12: max. 85.6 kbps (downlink/uplink)
PBCCH support
Coding schemes CS 1, 2, 3, 4
PPP-stack
USSD

Interface:
42SMTpins including
Analog audio interface
RTC backup
USB interface
Serial interface
Interface to external SIM 3V/1.8V
GPIO
ADC
GSM Antenna pad
Bluetooth Antenna pad

Package Include:
1 x SIM800C GSM GPRS Quad-band SMD Chip
