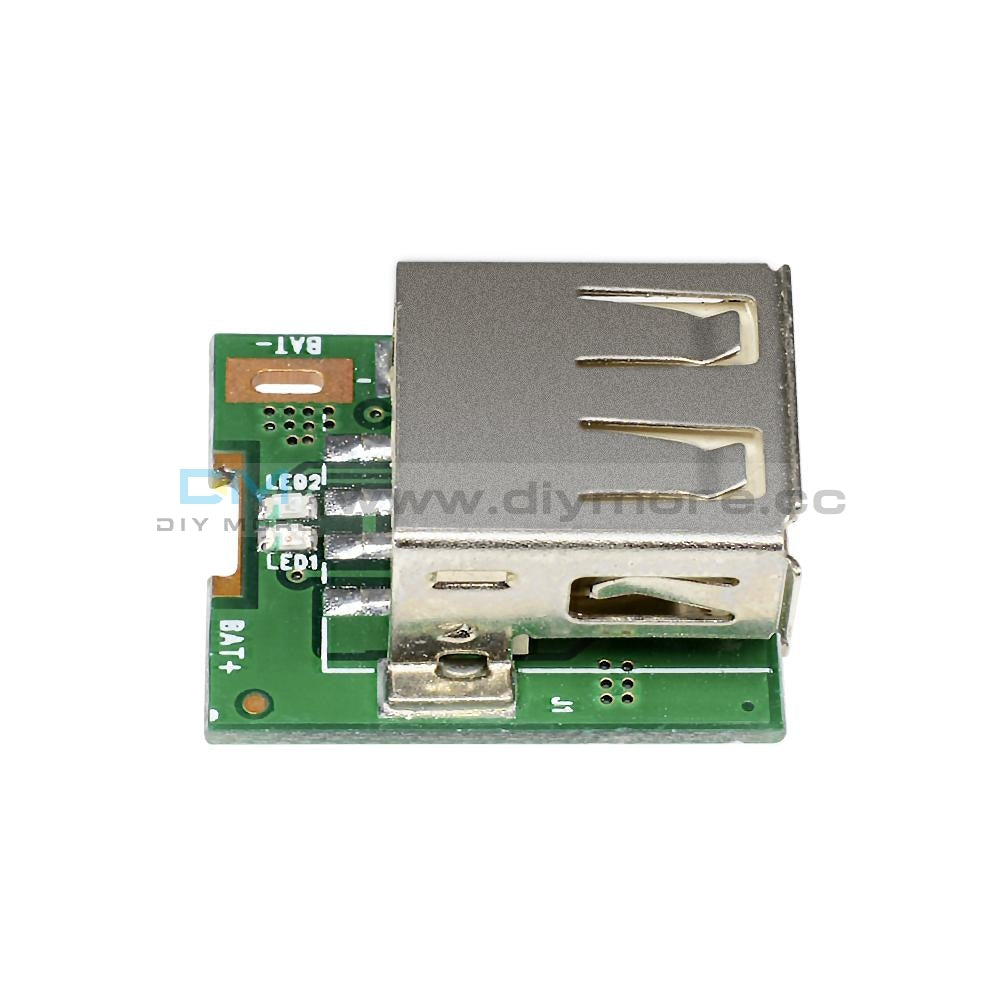

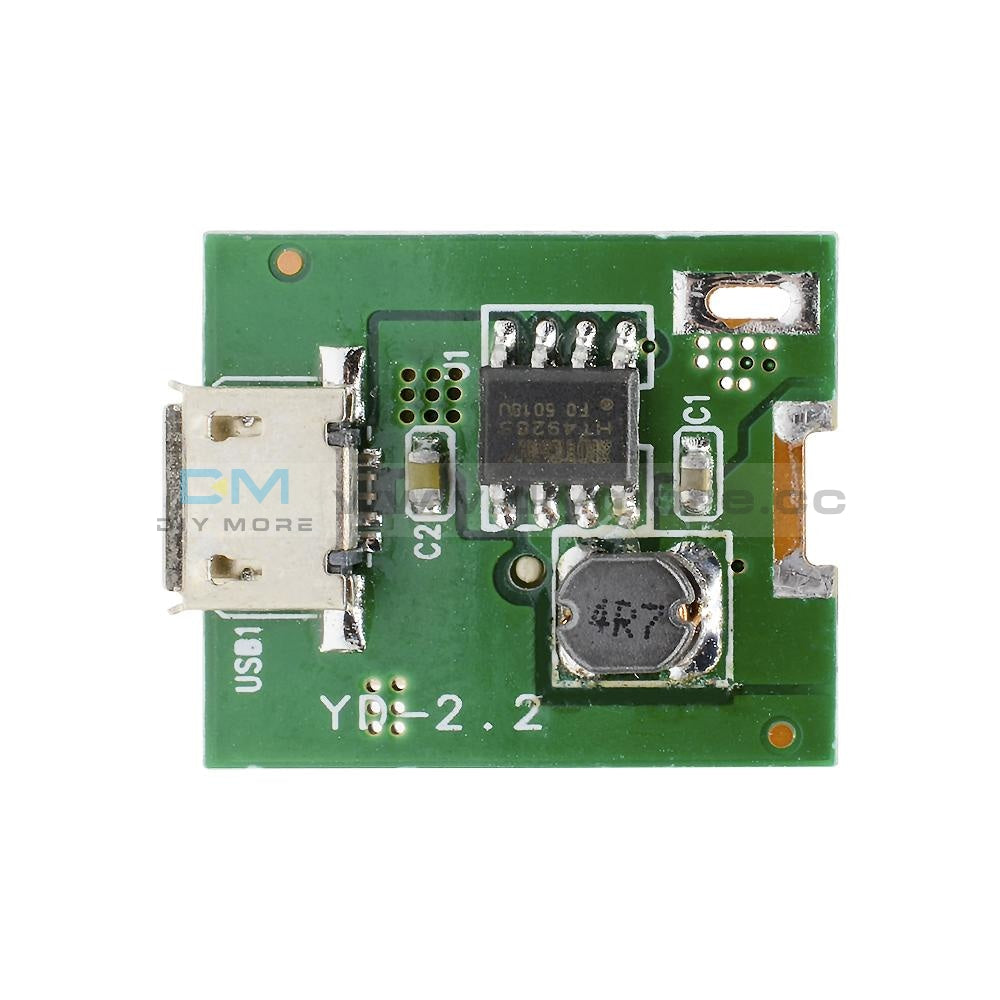

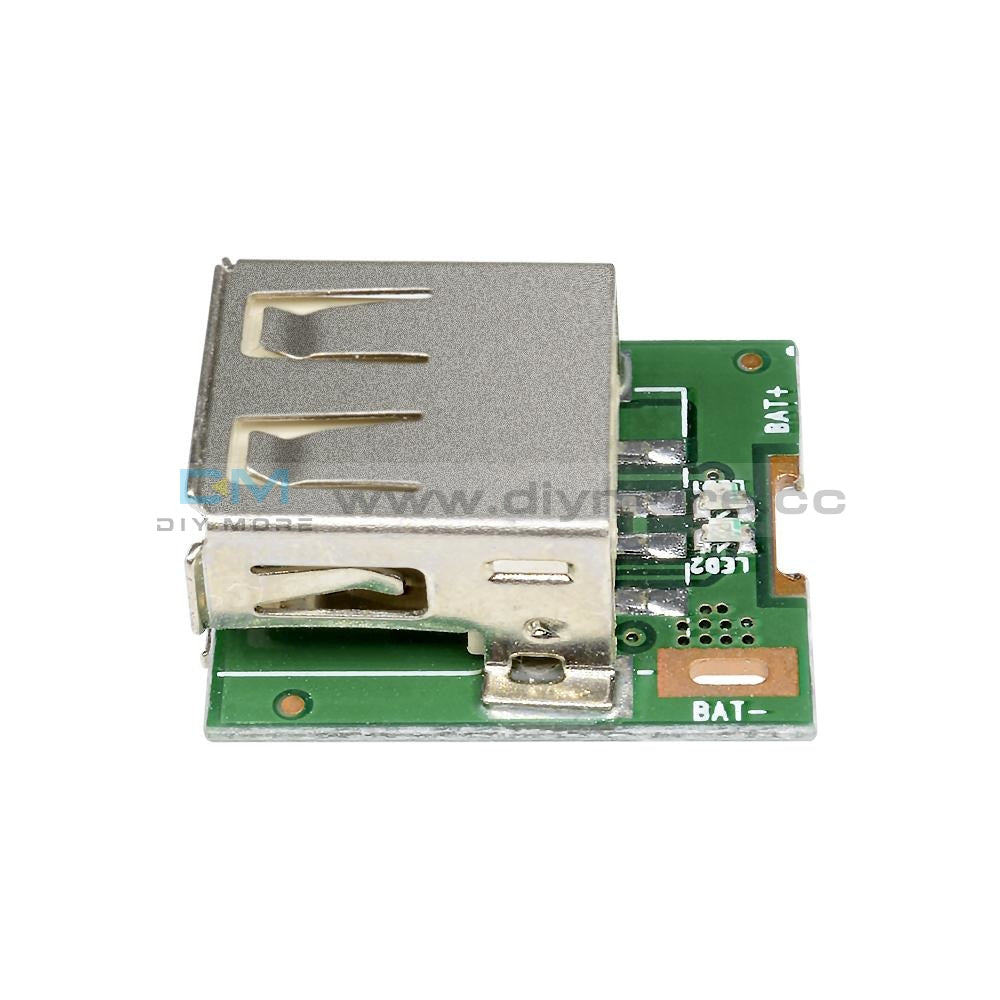

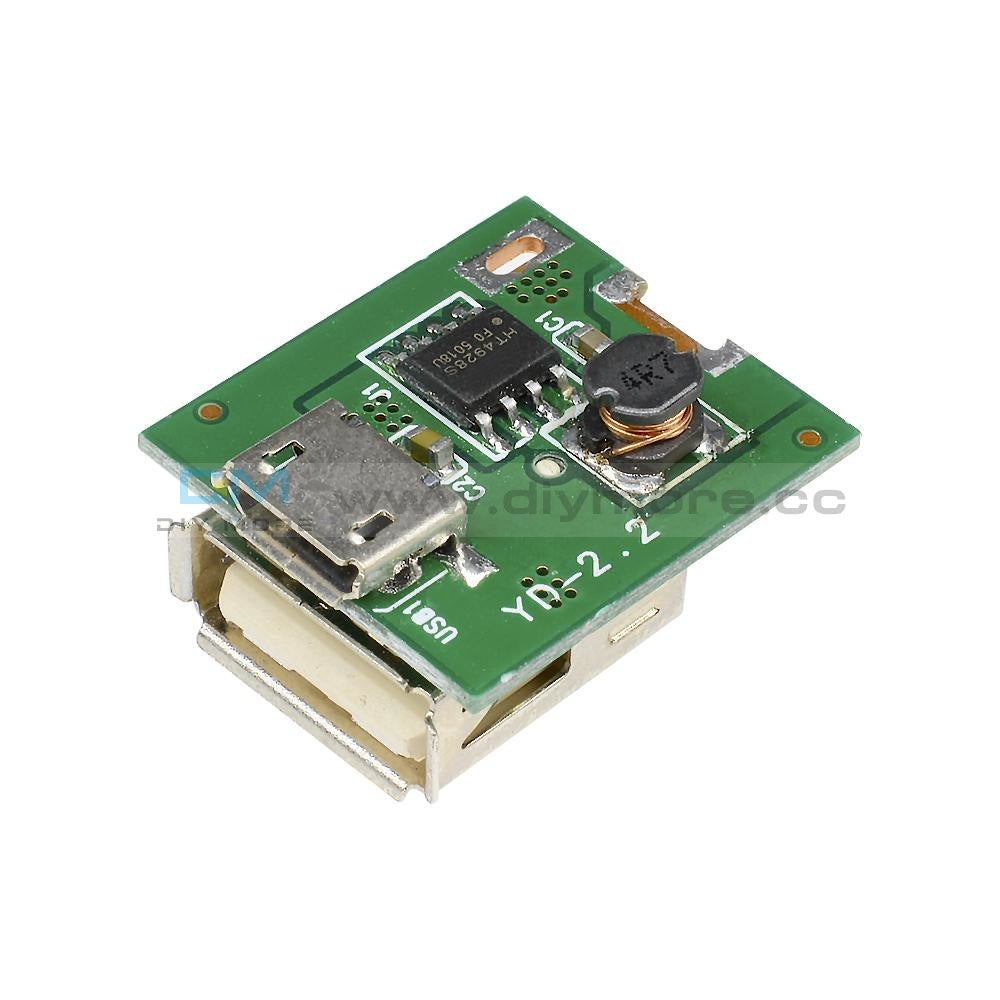

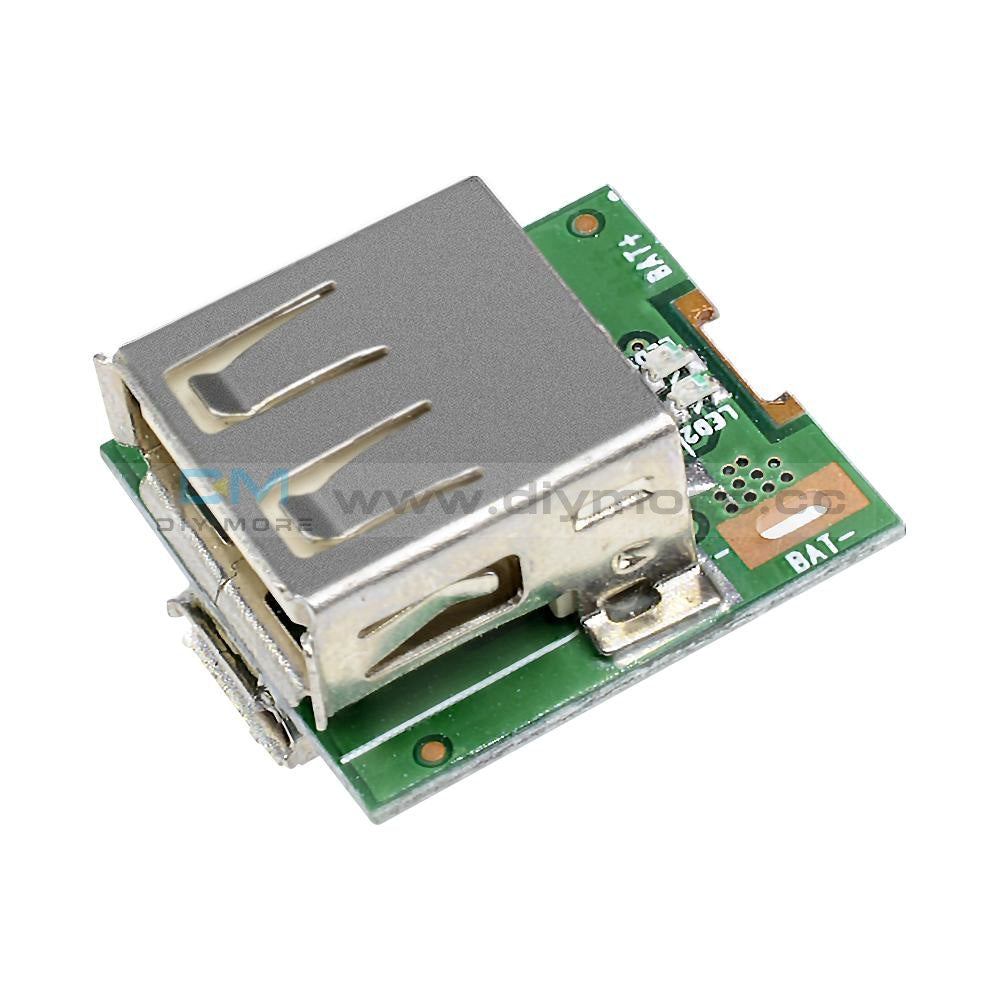

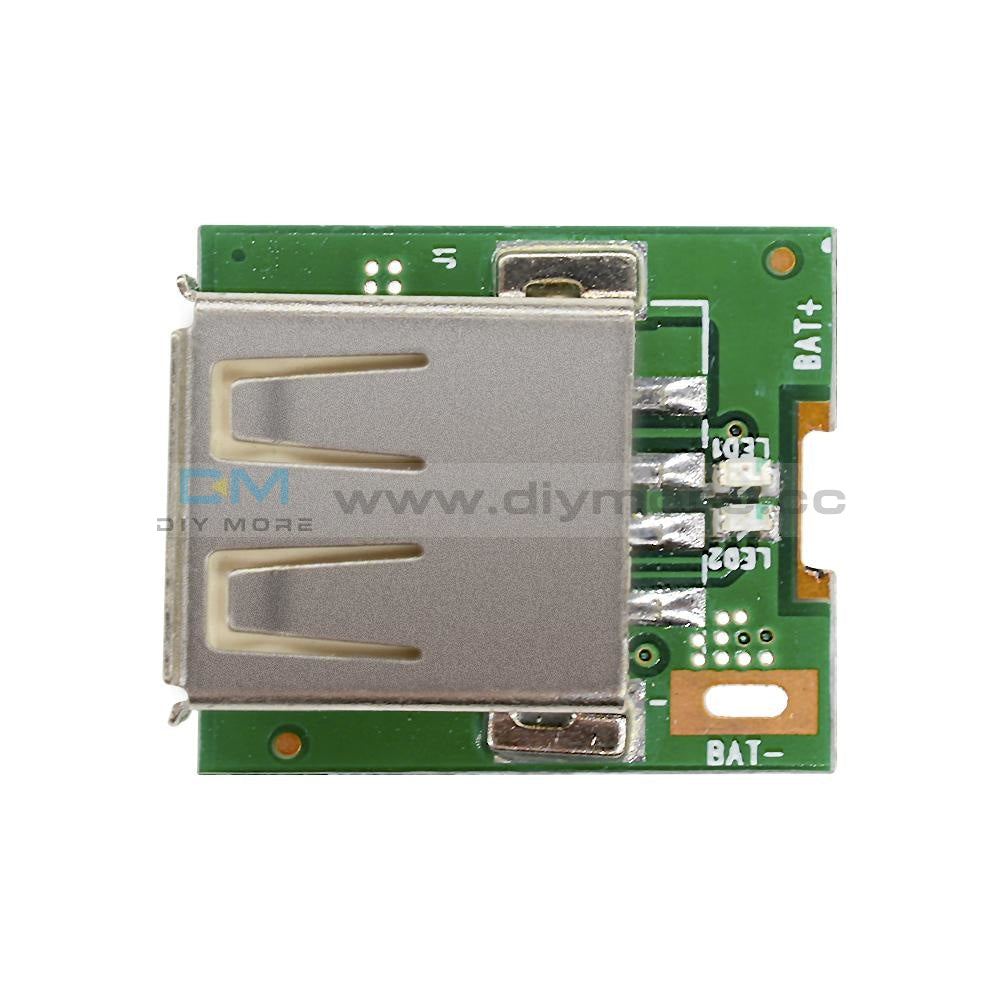

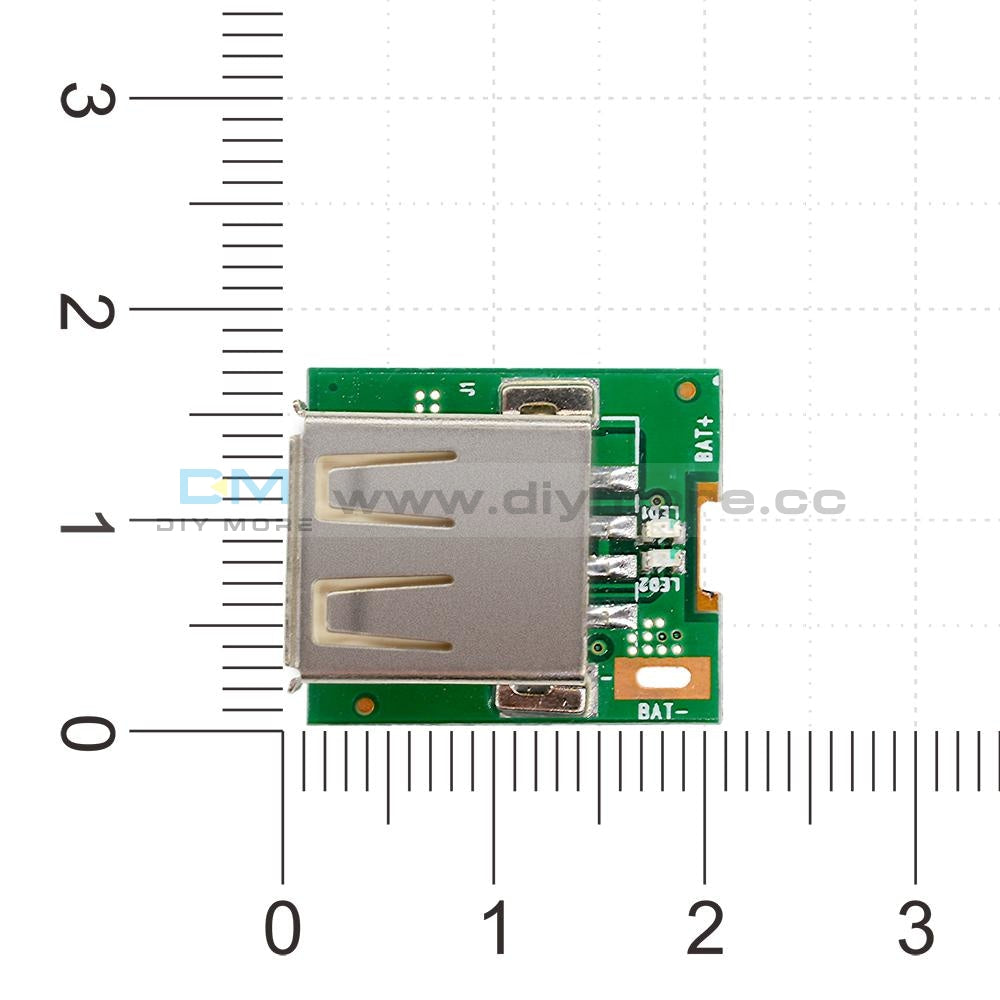

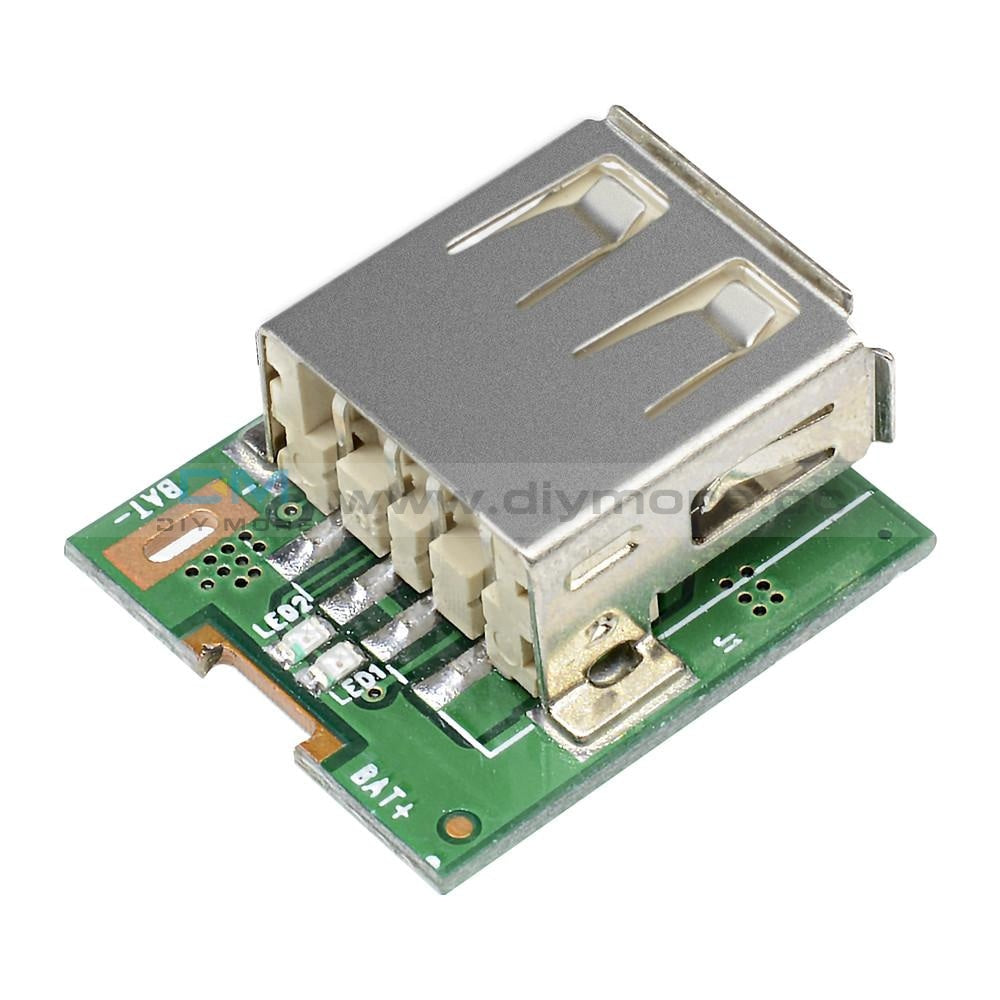

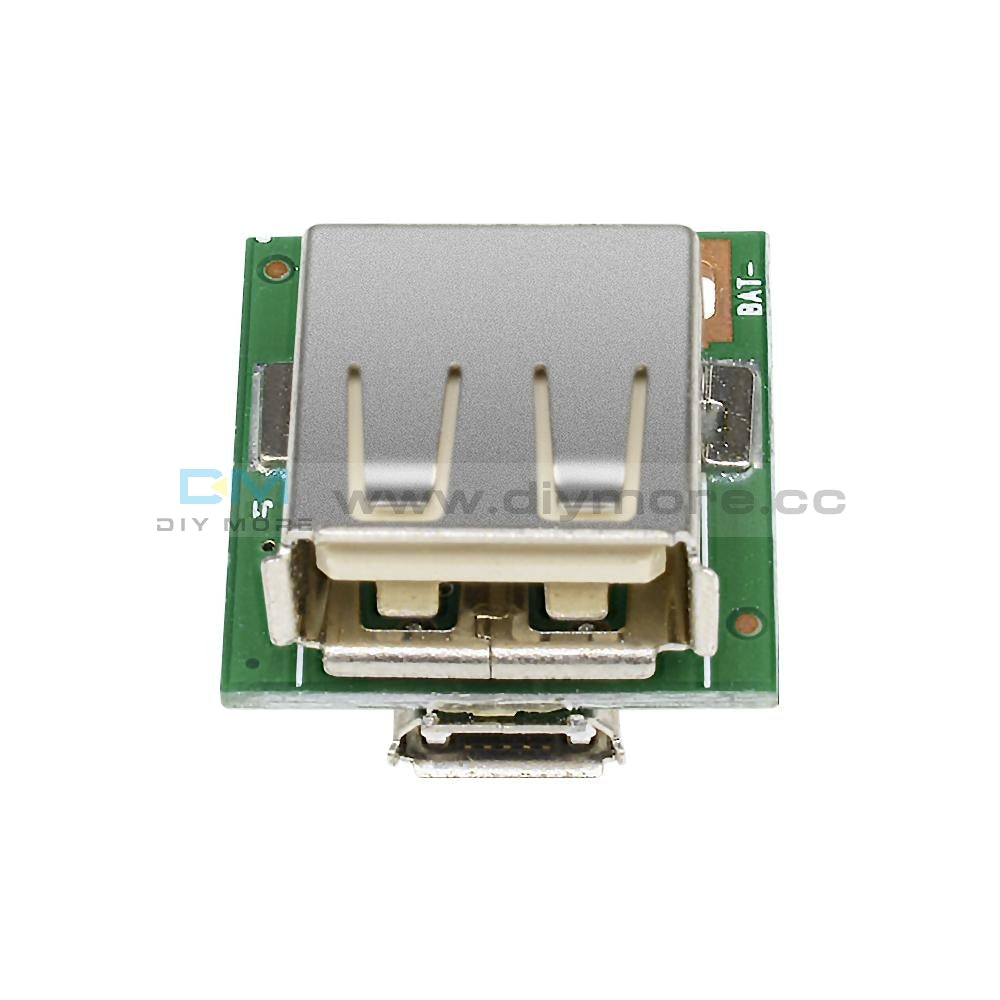

5pcs Step-Up Power Module 5V Boost Converter Lithium Battery Charging Protection

5pcs Step-Up Power Module 5V Boost Converter Lithium Battery Charging Protection

SKU:0118775
Regular price $4.99


Features:

  • Preset 4.2V charging voltage, precision ±1%
  • Integration charging management and discharging management
  • Intelligent temperature control and overtemperature protection
  • Integration output overvoltage protection,short coircuit protection,overload protection
  • Integration overcharging and overdischarging protection
  • Support trickle mode and zero voltage charging

Product Parameters:


Input Voltage:3.7V~5.5V
Charging Current:1A(max)
Output Current:1A(max)
Output voltage:5V
BAT Discharging Stop Voltage:2.9V
Discharging Efficiency:85%(input 3.7V output 5V/1A)
Charging and discharging indication
Internally installed charging and discharging power MOS
Max 8uA standby current


Light display:
Charging: red light flashing (red light long brightness means full charged)
Discharge: Blue light flashing



Package Included:
1 x Step-Up Power Module
