STM8S001J3 Development Board Small System Microcontroller Core Board Stm8S001
STM8S001J3 Development Board Small System Microcontroller Core Board Stm8S001
SKU:XF0091
Regular price
$5.99
![]()
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155
Reference description:

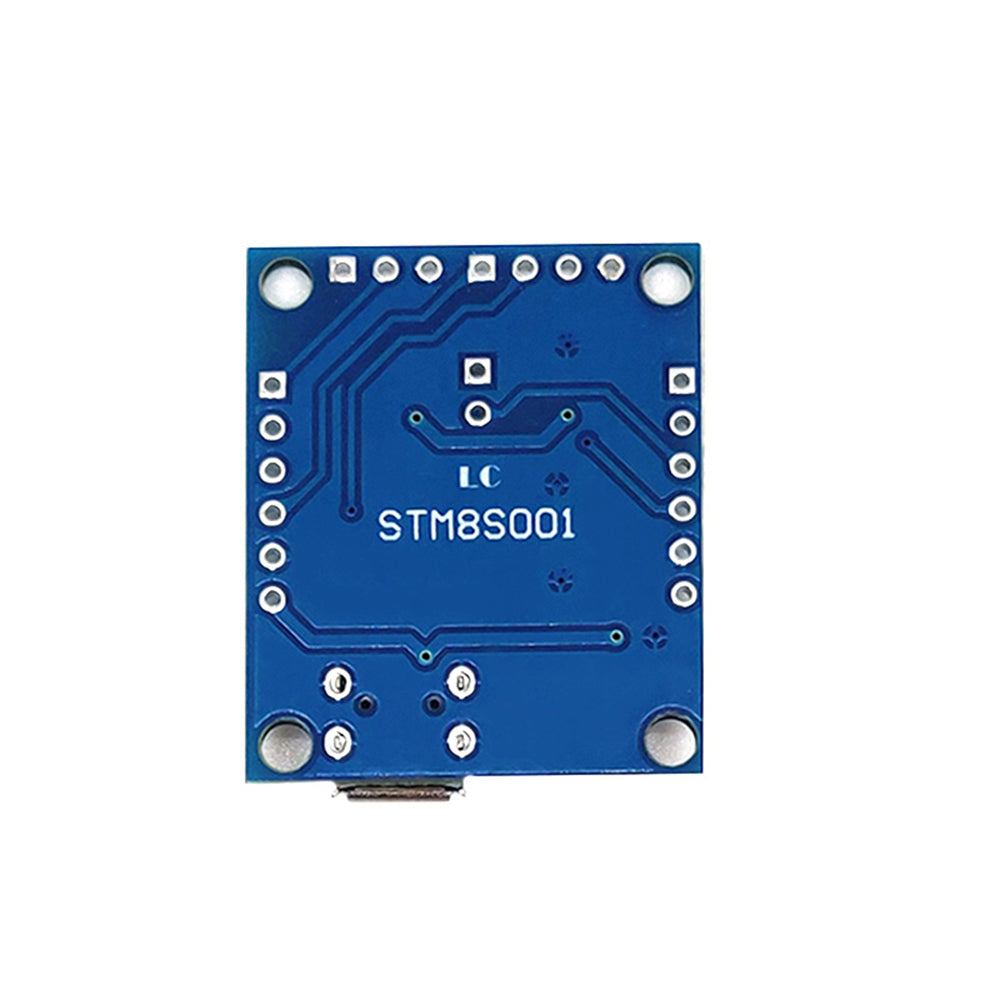

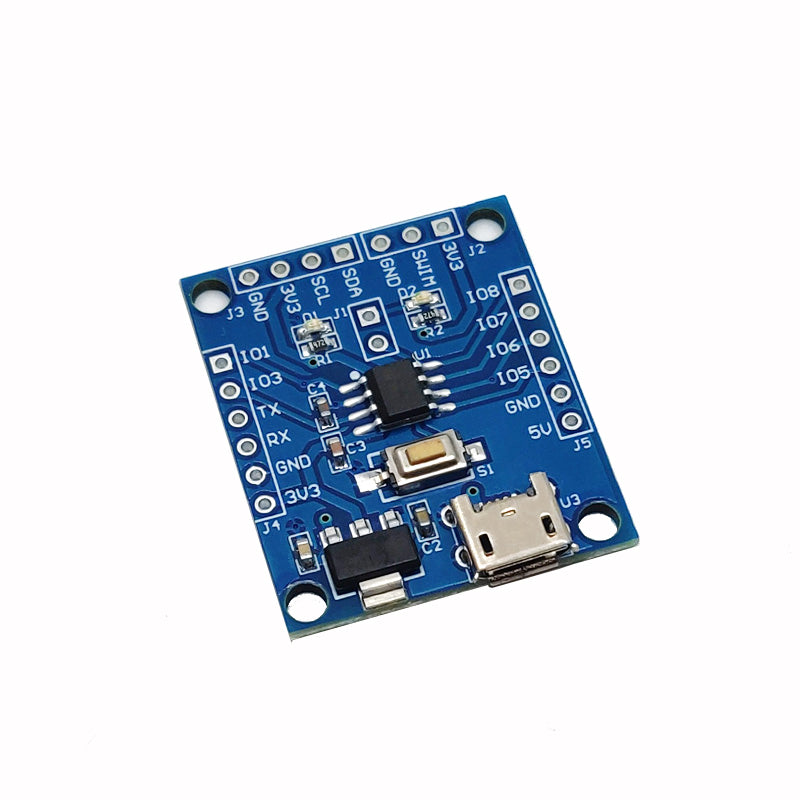

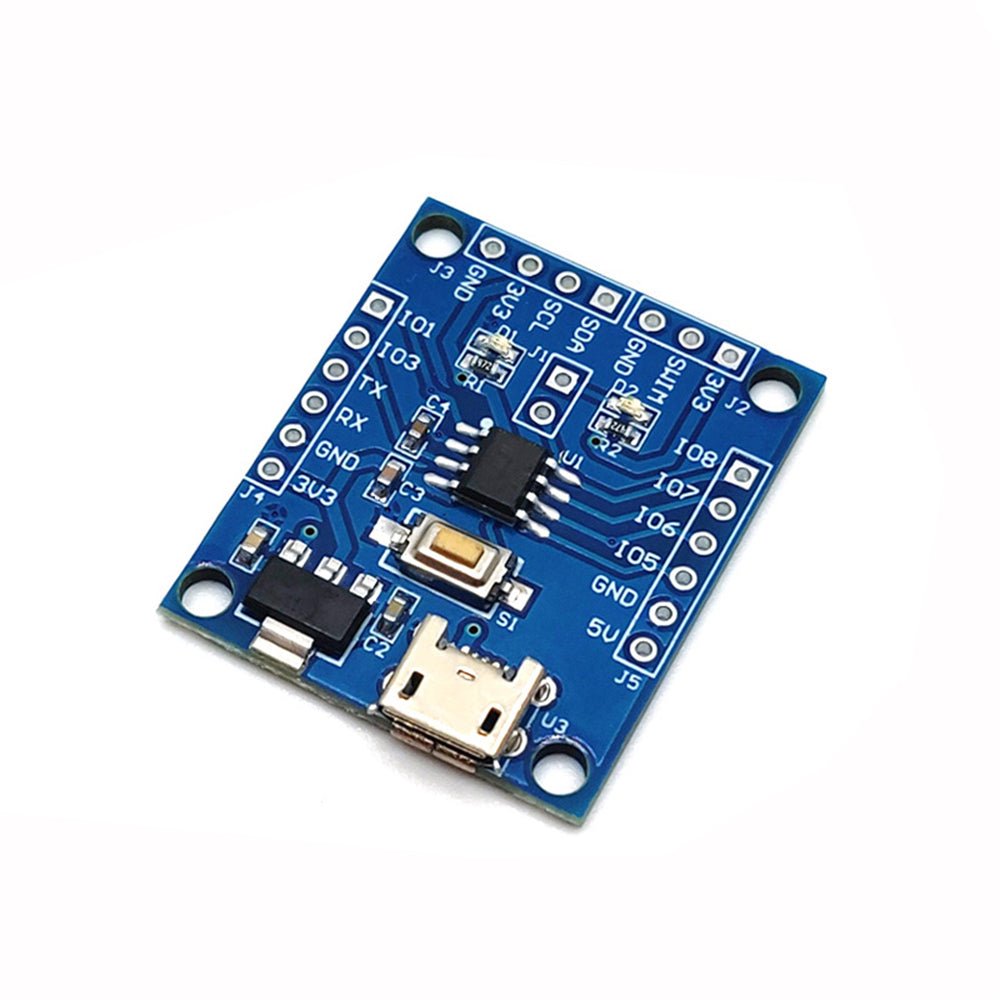

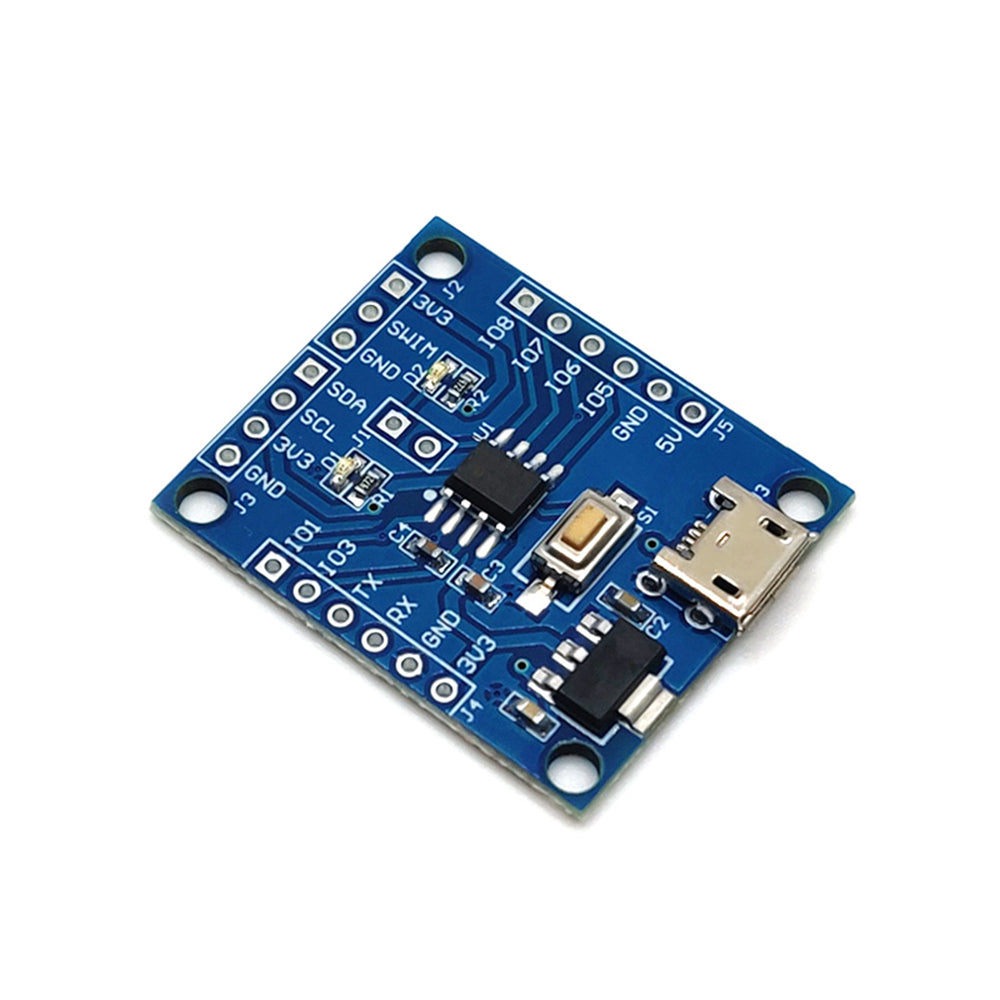

- STM8S001 development board, the chip STM8S001J3 used is an 8-bit microcontroller, and the core board leads to all IO ports.
- With an LED indicator and power indicator, you can choose whether to use the LED through the jumper cap. OLED interface with KEY button, SWIM download interface, I2C.
- The core board can be powered by MICROUSB 5V.
Function pending：
- High-performance STM8 core, three-stage instruction pipeline, main frequency up to 16M
- 8K FLASH, 1K RAM, 128BYTE real EEPROM
- Three main clock sources can be selected: HSE, HSI, LSI
- Low power consumption modes: WAIT, ACTIVE-HALT, HALT
- Peripheral clock can be turned off independently, power-on & power-down reset
- Embedded 32 mid-range vectors, up to 5 external interrupts
- Two 16-bit timers, one 8-bit basic timer
- SPI single-wire interface (up to 8MBIT/S), IIC (up to 400KBIT/S)
- UART (SMARTCARD, LRDA, LIN master mode)
- 3-channel 10-bit ADC, single/continuous/buffered working mode
- 5 general IO ports, embedded single-line download & simulation interface SWIM
- Size:32*27mm
Package Include:

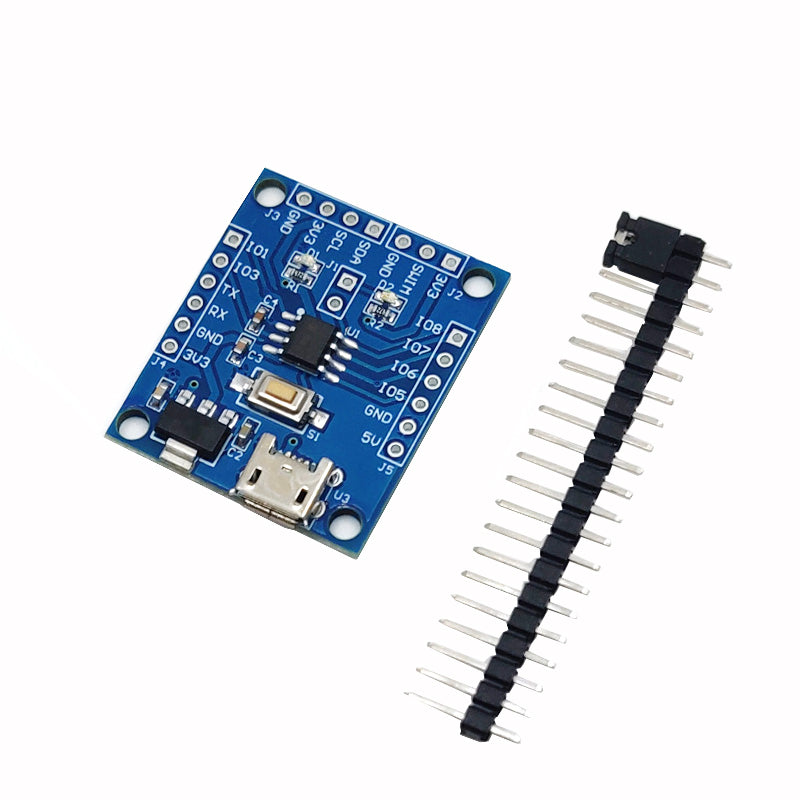

- 1x STM8S001J3 Development Board Small System Microcontroller Core Board Stm8S001
