T-Beam ESP32 433/868/915/923Mhz WiFi Bluetooth ESP32 NEO-6M With OLED

SKU:XF0107

$49.99

Product Features

ESP32

Lastest ESP32 Version: REV1
WIFI
Bluetooth
8MB PSRAM
4MB Flash
3D Antenna
LORA
Product Description
Working voltage: 1.8~3.7v
Acceptable current：10~14mA
Transmit current: 120mA AT +20dBm
90mA AT +17dBm
29mA AT +13dBm
Operating frequency: 433/470MHz(433HMz version) /868M/915M(868MHz version)
Transmit power: +20dBm
Receive sensitivity :-139dBm AT LoRa &62.5Khz&SF=12&146bps
-136dBm AT LoRa &125Khz&SF=12&293bps
-118dBm AT LoRa &125Khz&SF=6&9380bps
-123dBm AT FSK&5Khz&1.2Kbps
Frequency error：+/-15KHz
FIFO space ：64Byte
Data rate ：1.2K~300Kbps AT FSK
0.018K~37.5Kbps AT LoRa
Modulation Mode ：FSK,GFSK,MSK,GMSK,LoRa TM，OOK
Interface form ：SPI
Sleep current ：0.2uA AT SLEEP
1.5uA AT IDLE
Operating temperature ：-40℃- +85℃
Digital RSSI function
Automatic frequency correction
Automatic gain control
Low voltage detection
Fast wake-up and frequency hopping
Highly configurable data packet handler

GPS

GPS modules NEO-6M, 3V-5V power supply Universal
Destined module with ceramic antenna, signal super
Save the configuration parameter data EEPROM Down
With data backup battery
There are LED signal indicator
Default Baud Rate: 9600

Power

Power Supply Input USB 5V/1A
Charging current 500mA
Battery Input 3.7-4.2V
Charge IC AXP192

OLED Description:

Size: 0.96 inch
High resolution: 128 * 64
Color: white
Viewing angle: > 160 °
Driver IC: SSD1306
Working temperature: -30 celcius ~ 80 celcius
Module volume (generous): 27.0MM * 27.0MM * 4.1MM
Supports many control chip: Fully compatible with Arduino, 51 series, MSP430 series,STM32/2, CSR chip, etc. (a lot of routines for reference)
Wide voltage support: without any modification, directly supports 3.3V ~ 5V DC
Ultra-low power consumption: Normal operation Is 0.04W
IO port occupies minimal display: The IIC communication,as long as the two IO ports

More information:

https://github.com/geeksville/Meshtastic-Android/blob/master/README.md

https://github.com/meshtastic/Meshtastic-device/releases\

https://github.com/Xinyuan-LilyGO/LilyGO-T-Beam

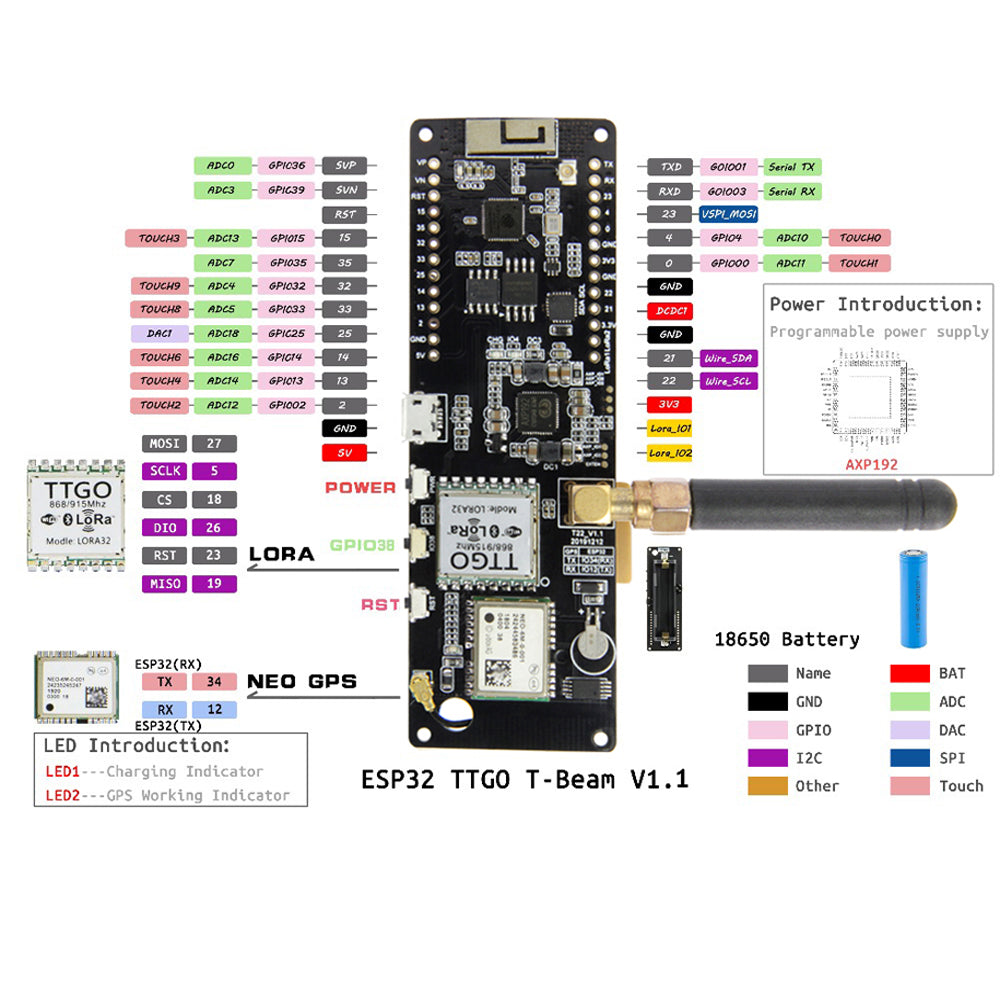

Pin Schematic

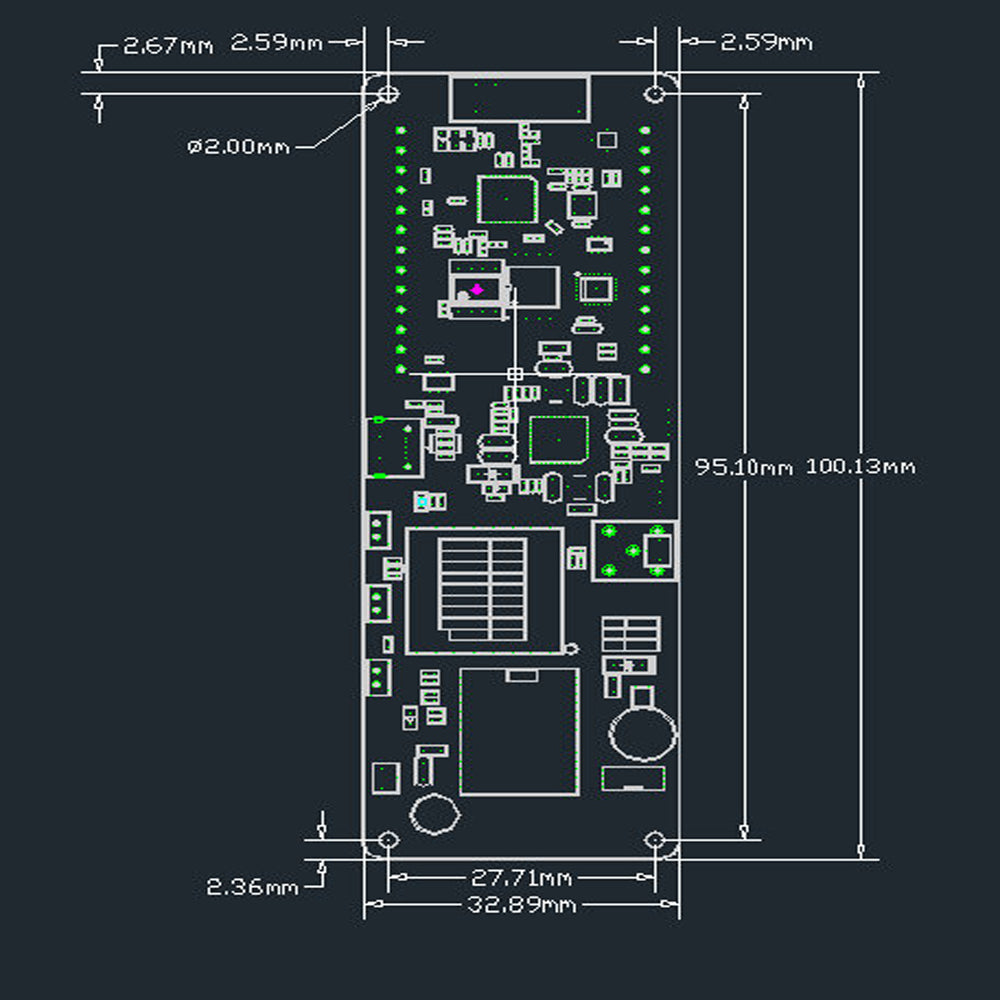

Size picture

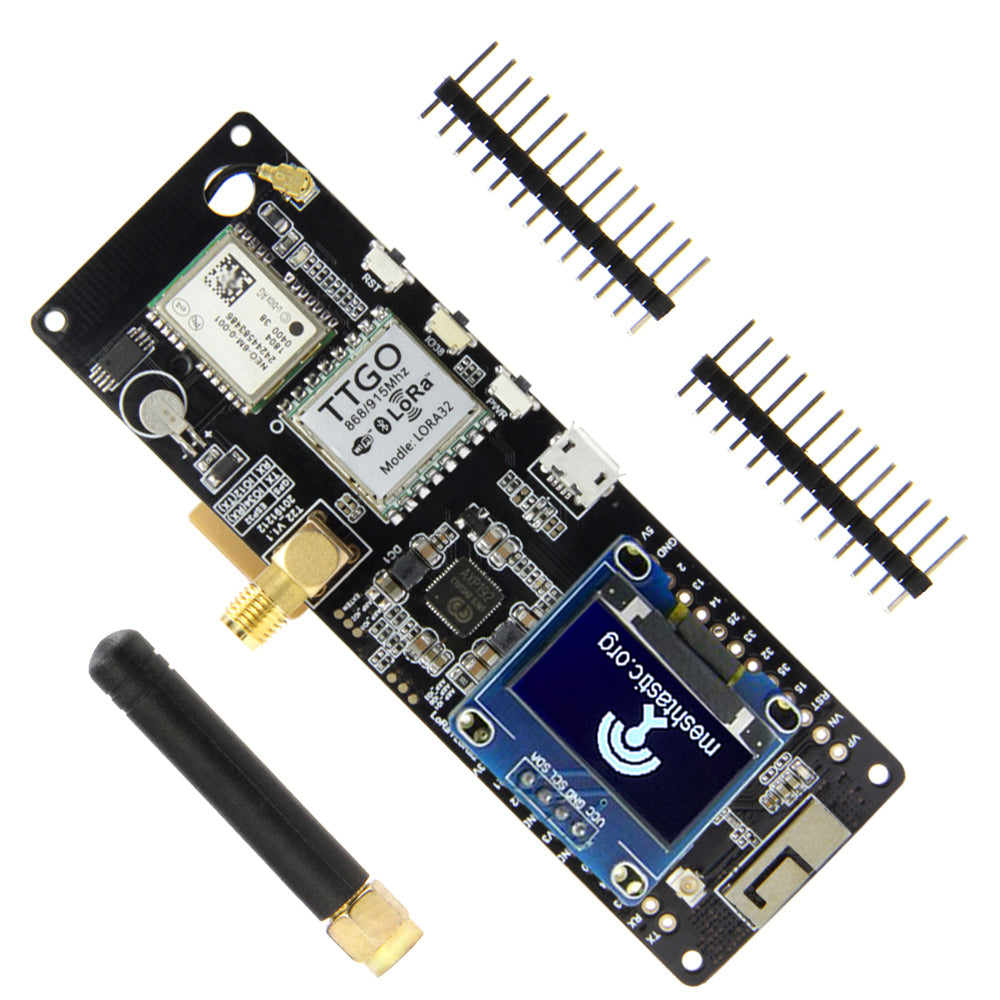

Shipping List

433MHz/868MHz Version

1 X TTGO T-Beam
1 X 433MHz/868MHz Antenna
1 X 0.96 inch 128X64 OLED
2 X Pin
Note: OLED is not soldered to T-BEAM

915MHz/923MHz Version
1 X TTGO T-Beam
1 X 915MHz/923MHz Antenna
1 X 0.96 inch 128X64 OLED
2 X Pin
Note:OLED is not soldered to T-BEAM
