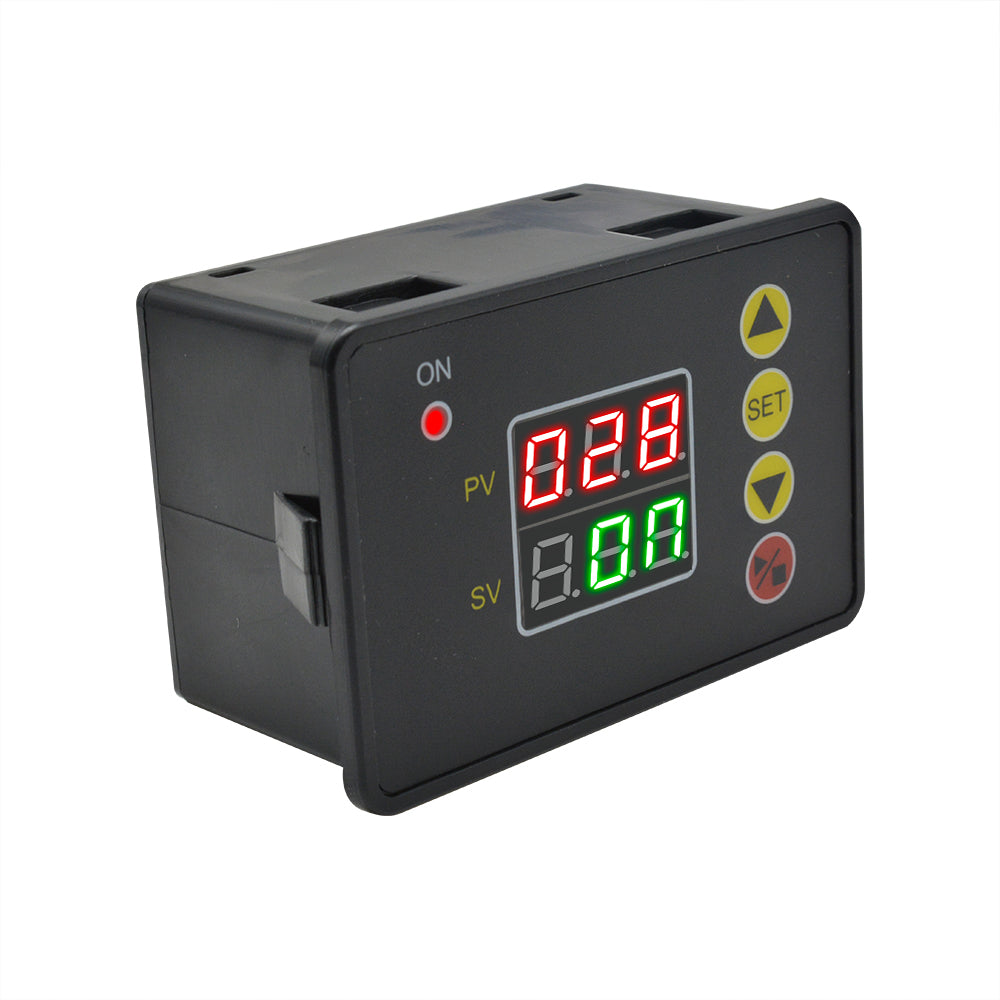

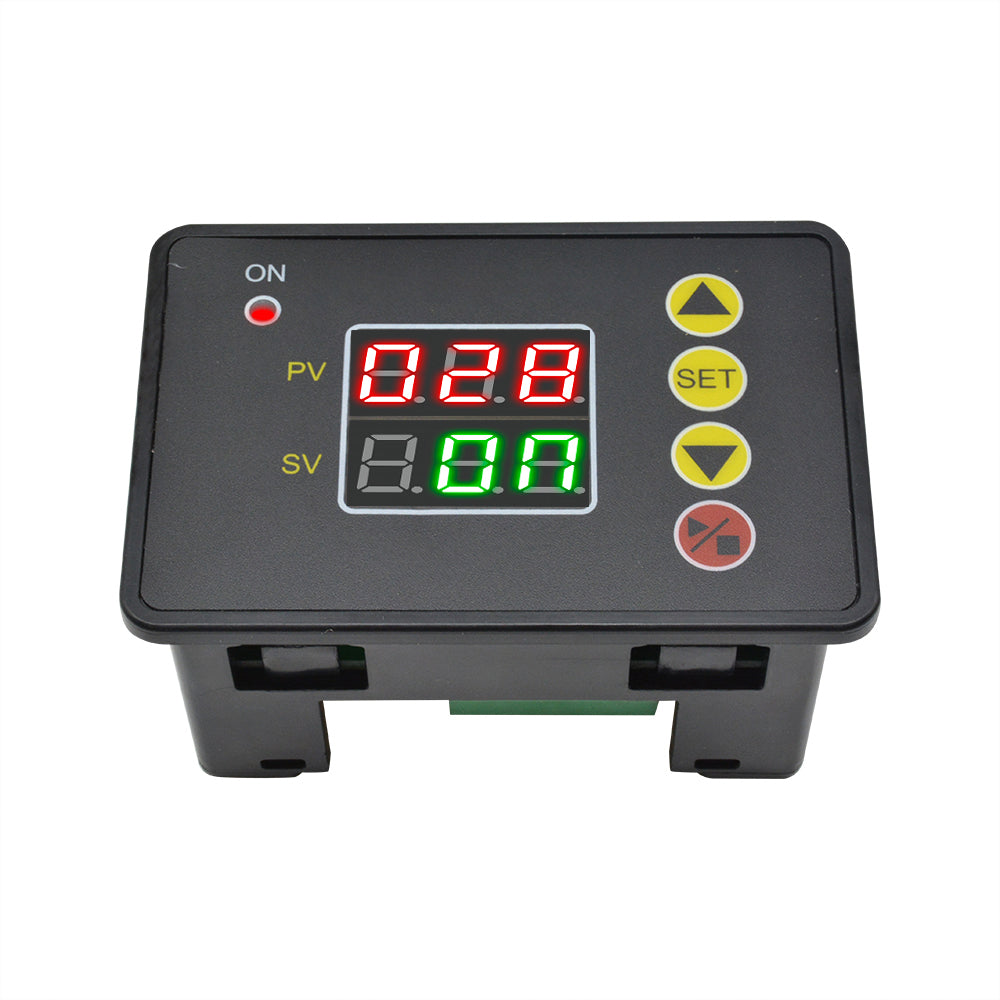

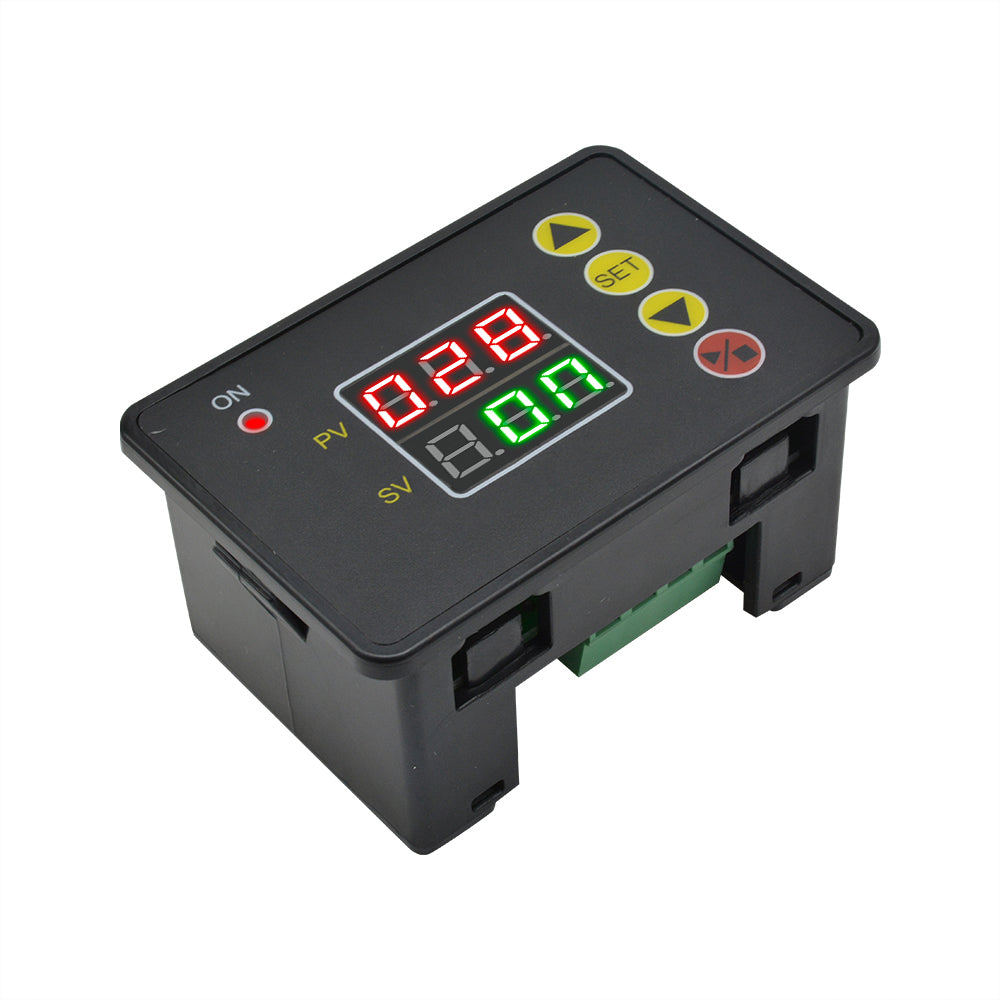

T2310 Timing Controller DC12/24V AC110-220V Microcomputer LED Timer Delay Relay

T2310 Timing Controller DC12/24V AC110-220V Microcomputer LED Timer Delay Relay

SKU:XA0032
Regular price $8.99

Description:
  • Controller type: Intelligent Microcomputer Timer Delay Relay Controller Module
  • Operating Voltage:DC 12V/24V , AC110-220V
  • Control circuit voltage:DC 12V/24V , AC110-220V
  • Relay carrying power:240W, 480W, 10A(max)
  • Recommended power:<Relay carrying power×80%
  • Relay type:Normally open relay
  • Power consumption:<1W
  • Relay service life:100000 Times
  • Timing error:±3s(in 24 hours)
  • Weight:65g
  • Size:67mm×45mm×34mm
  • Fixed way:Embedded Hole 63mm×42mm
Product advantages:
  • Independent crystal oscillator, more accurate timing

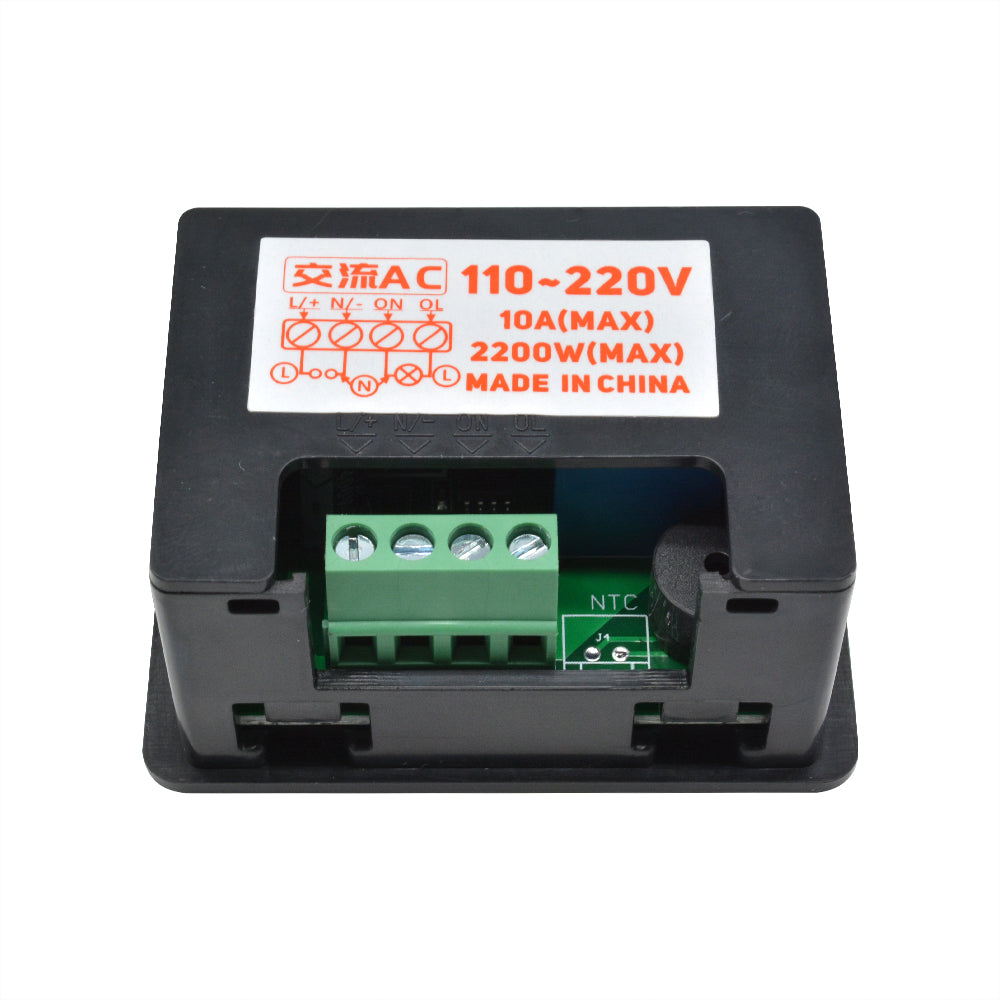

  • Convenient direct output wiring
  • Add buzzer and audible alarm
  • Add pause button to stop urgently
  • Start and stop setting mode, provincial conversion, which is more convenient
  • Automatically save when power off, run automatically when power on
  • Timing units can be set separately, with 36 working combinations
  • Timing range: 0-999 seconds, minutes, hours
  • To count in minutes or hours, the digital tube flashes in seconds.

Note:

  • This product is a countdown operation and cannot be set to a 24-hour working mode.

Package Included:

  • 1PC* Intelligent Microcomputer Timer Delay Relay Controller Module
