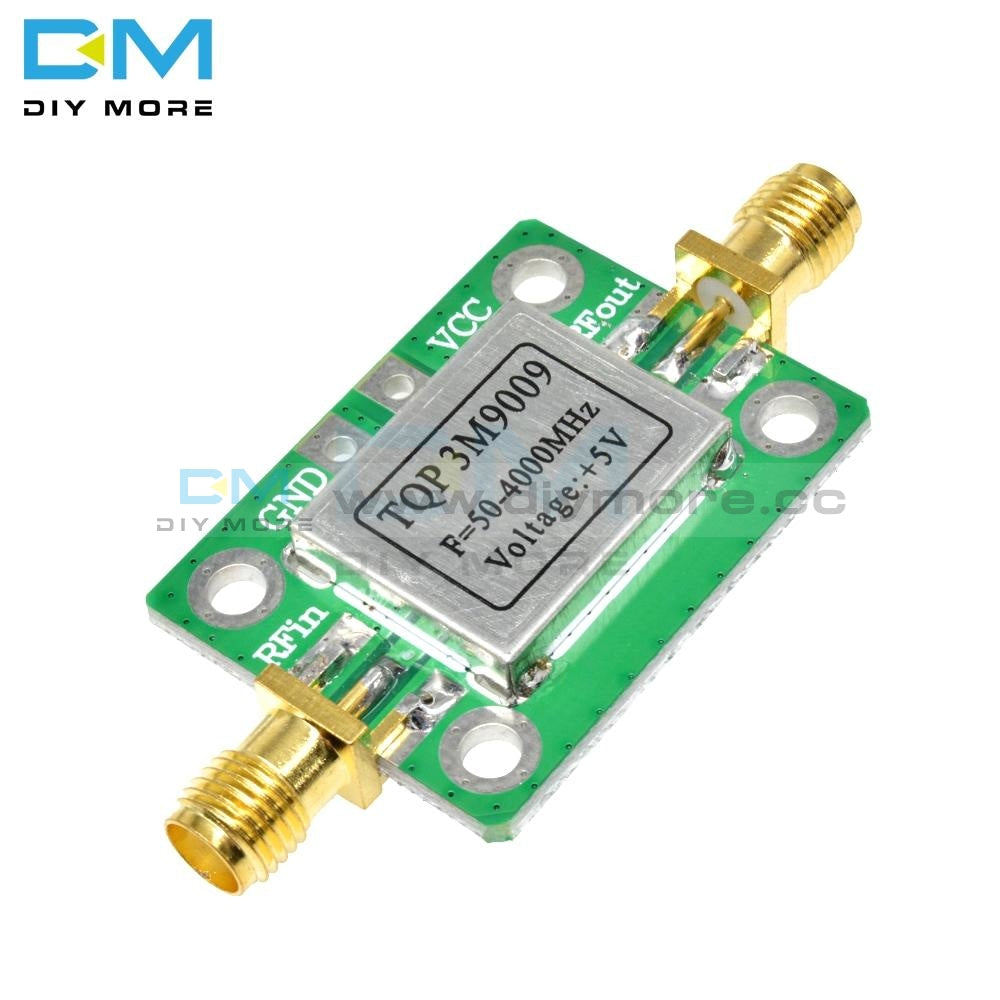

TQP3M9009 LNA 50-4000MHz High Linearity RF Broadband Low Noise Amplifier Module 5V DC High Gain TQP3M9009 Amplifie Board
TQP3M9009 LNA 50-4000MHz High Linearity RF Broadband Low Noise Amplifier Module 5V DC High Gain TQP3M9009 Amplifie Board
SKU:X13768
Regular price
$13.99
Sale price
$11.99
![]()
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155
Features:
It's low in properties can be a perfect match various circuits as ideal amplifier buffer amplifiers.
This product with wide frequency range, high gain, low noise figure.
This product can be applied to various rf receive front-end and increases communication distance.
Used for Short wave, FM radio, remote control receiver, such as cable TV signal amplifier need low noise rf signal amplification.
Description:
The low noise amplifier module has a higher gain and provides very low noise over a wide frequency range. This provides communication between the receiver and the transmitter. The amplifier operates from a single +5V supply. It has very good stability, and has a wide dynamic range and a wide operating frequency range. It is suitable for fixed gain amplification of various RF signals.
Specifications:
Colour: green
Size: 20*35mm
Operating frequency: 50-4000MHz
Amplification gain: 21.8dB (typical)
Noise figure: 1.3dB (typical)
Maximum power: +22dBm (150mW) @1dB compression point
Working current: 125mA (5V)
Power supply voltage: 5VDC
System impedance: 50 ohms
Package included:
1x RF Low Noise Amplifier TQP3M9009 LNA Module
