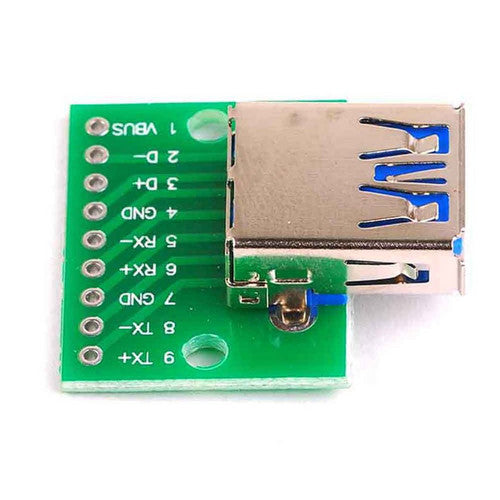

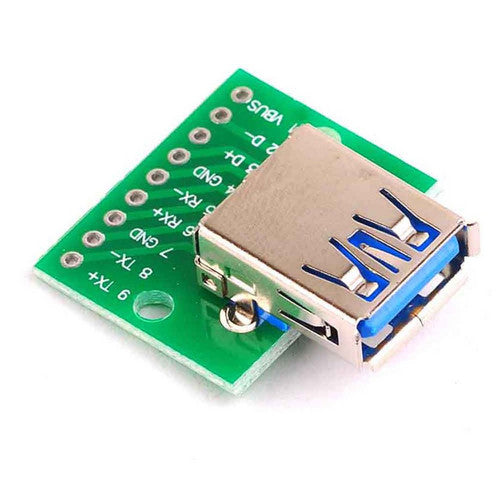

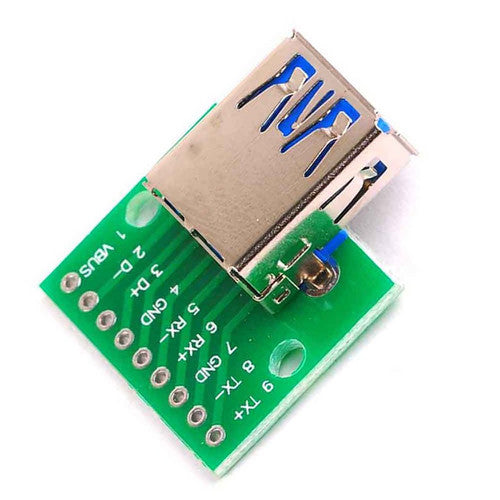

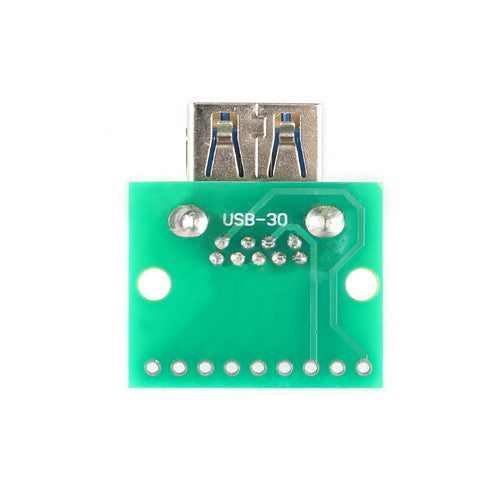

USB 3.0 3.1 Female to DIP Adapter PCB Module Connector Converter For Arduino
SKU:X13553
Regular price
$4.99
![]()
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155
Features:
- Diy Your Own Smart Model:Build your own powered models, It can be used for teaching purpose. Many of our customers come from school, colleague, etc.
- High Quality & Easy Use: High quality epoxy resin, unique technology to make the components beautiful and strong.
- Dip 2.54mm Pin : This module is easily transformed into the conventional DIP 2.54mm pin.
- Great For Diy:Great for DIY USB power supply, breadboard design, etc.
- Compared: Mini USB is one of the most common USB interfaces at present. Compared with the standard USB.
Introduction:
- USB3.0 (ie USB3.1 Gen1) and USB3.1 (ie USB3.1 Gen2) have the same pin, USB3.0 is backward compatible, the USB2.0 part is completely reserved, and 5 lines are added for High-speed transmission of full-duplex, although the cost is high, but to some extent, the impact of wire quality problems is avoided. The first four, which is the backward compatible USB2.0 part. Because USB2.0 transmits half-duplex differential signals, it takes at least 3 lines to transmit data—D+/D-/ground lines (two data lines for uplink and downlink sharing), plus a red line for positive power supply. 4 roots. The next five are USB3.0 high-speed data transmission lines. Because USB3.0 transmits full-duplex differential signals, two pairs of data lines and one shielded ground line are required. It should be noted that Type-C is just an interface, and has nothing to do with the USB version, just like the Type-C of most mobile phones is still 2.0. However, the micro interface scheme of 3.1 is generally Type-C. Some places with sufficient space also use Type-C to express their advanced nature, and also give users the illusion of 3.1=Type-C.
Parameter:
- Rated current: 1.8A (1~4 pins) 0.25A (other pins)
- Withstand voltage: AC 100V (RMS)
- Working temperature: -55 degrees to 85 degrees
Descriptions:
- It has a wide range of uses:This module is easily transformed into the conventional DIP 54mm pin,which greatly facilitates your application.
- Mini USB is smaller and suitable for small electronic devices such as mobile devices
Specification:
- Model: C37
- Substrate: Copper
- Color:green
- Size: 80*50*8mm
Package included:
- 1x Usb 3.0 Female To Dip Module
Notes:
- Due to the difference between different monitors, the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.
- Please allow slight dimension difference due to different manual measurement.
Package included：
- 1*USB 3.0 Female to DIP Adapter Board
