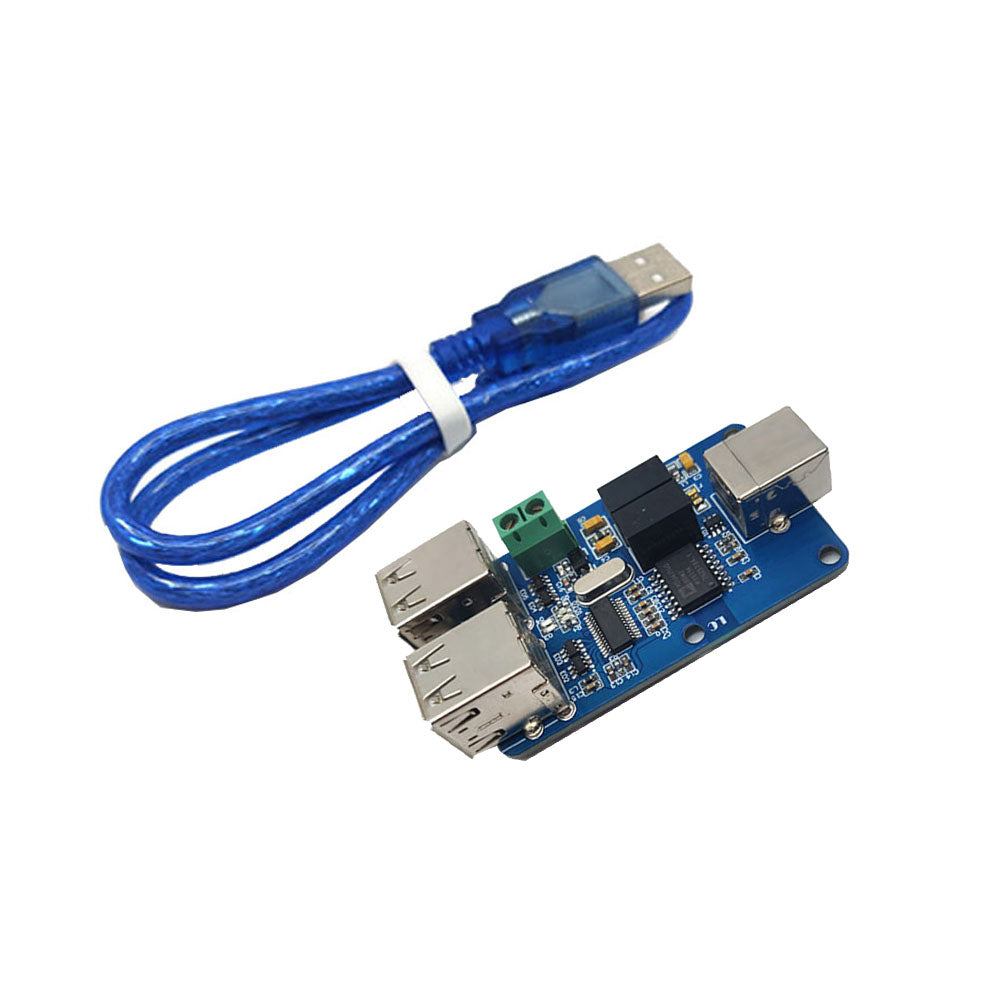

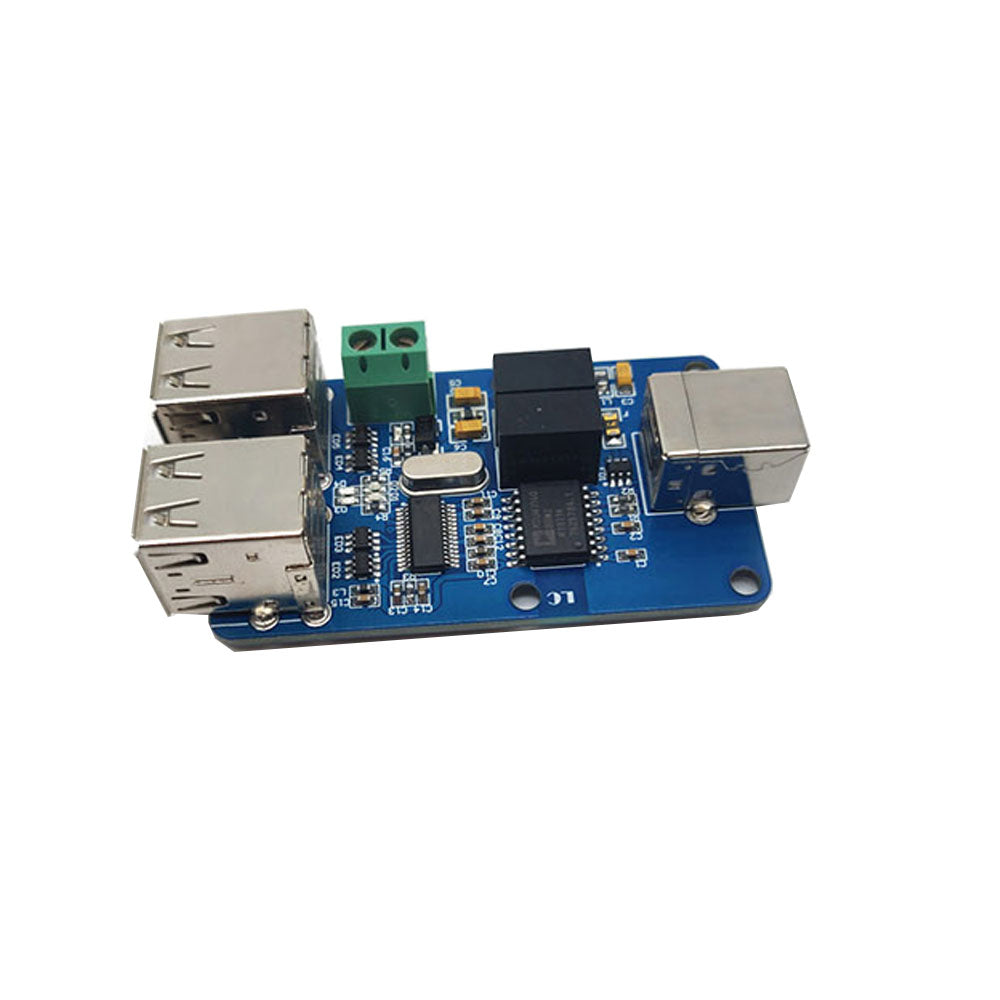

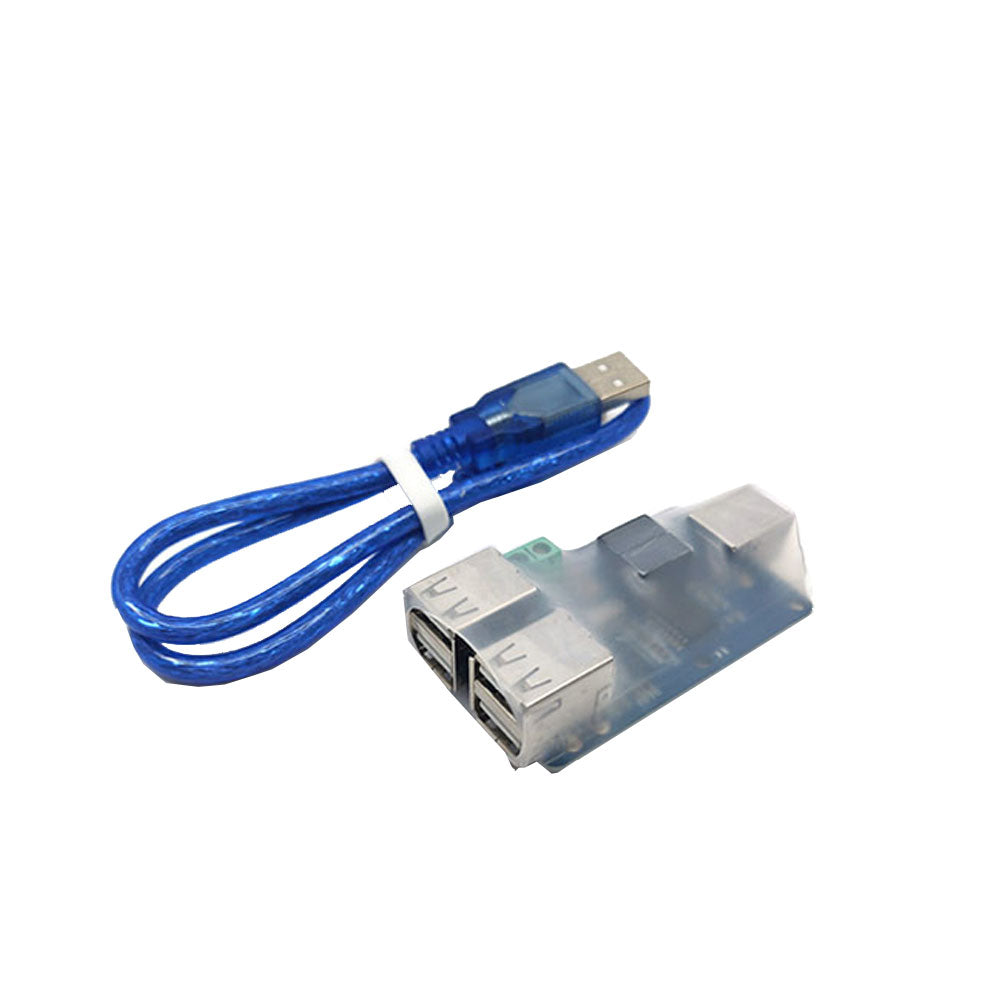

USB isolator, 2500V USB HUB isolator, USB isolation board, ADUM3160 supports USB control transmission
USB isolator, 2500V USB HUB isolator, USB isolation board, ADUM3160 supports USB control transmission
SKU:XF0111
Regular price
$15.99
![]()
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155
Overview:
- Airsay USB four-way isolation module adopts ADI's proprietary iCoupler® technology, compatible with USB 2.0, provides fully isolated 1.5 Mbps and 12 Mbps data rates, isolation of 1500V voltage, no external power supply, no driver. It protects the USB port from external strong power supply and strong signal interference, and protects the computer's USB port and computer motherboard.
- Compatible with USB2.0
- ADUM3160 isolation voltage: 2500V
- Power module isolation voltage: 1500V
- Support USB low-speed 1.5Mbps and full-speed 12Mbps, not pure high-speed devices
- Support USB control transmission, batch transmission, interrupt transmission, synchronous/isochronous transmission
- Power supply: from the USB port of the host computer
- External power supply DC5v, with reverse connection protection
- Onboard output power supply Jinshengyang B0505S power 1x2W, when the total working current of the USB device is >400mA, an external DC5V power supply is required
- Free drive, support hot swap, plug and play
- Each USB port is equipped with USB dedicated ESD protection chip
- Output four USB ports are not isolated from each other, each output has a USB status indicator

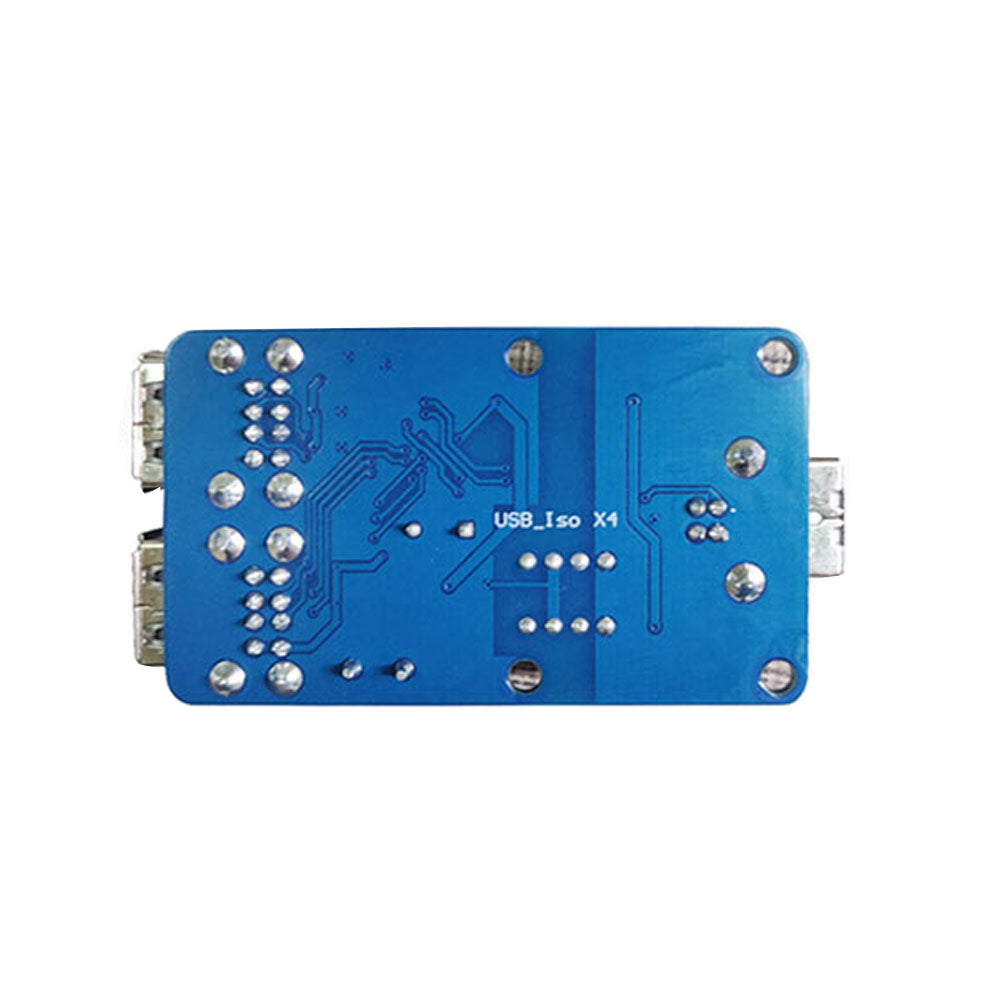

- Three, hardware introduction and description
- Board size: 63*37mm
- Weight: 54g
