VEML7700 Ambient Light Sensor Module

VEML7700 Ambient Light Sensor Module

VEML7700 Ambient Light Sensor Module

SKU:XB0035
Regular price $9.99 USD

Description:

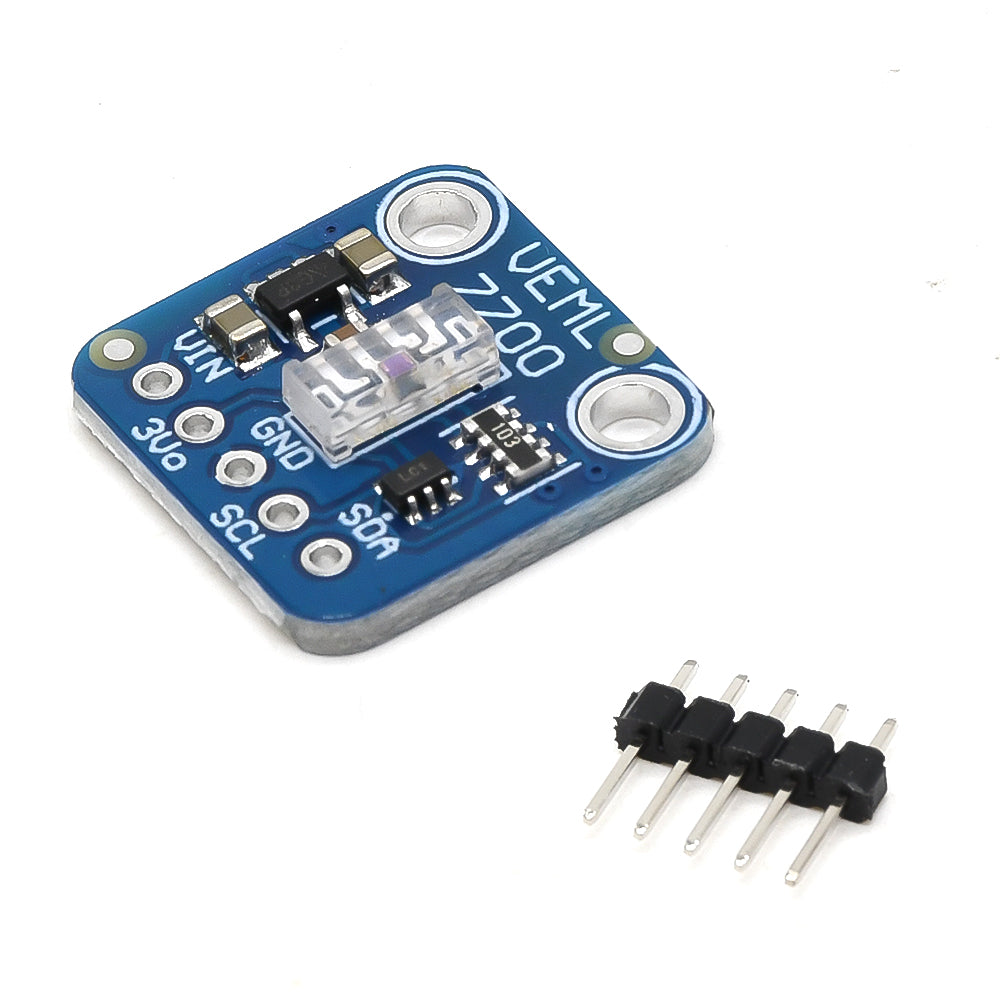

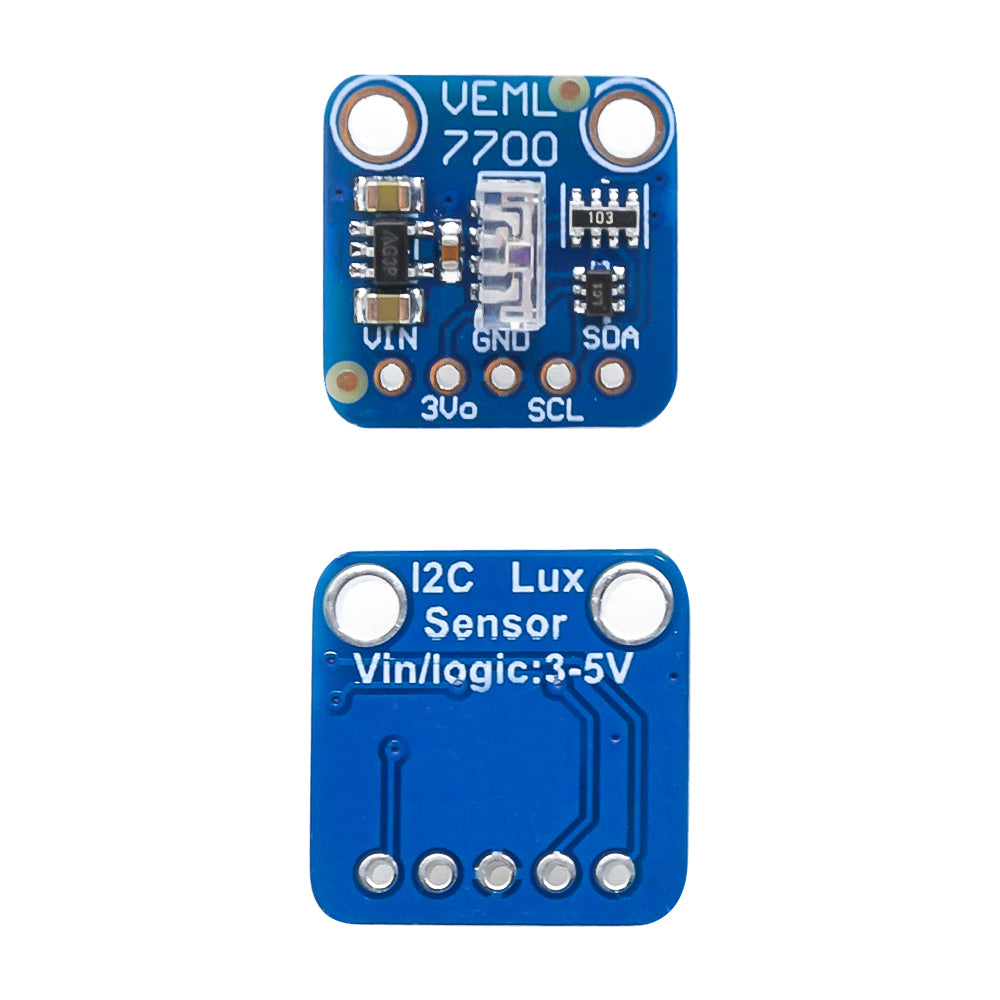

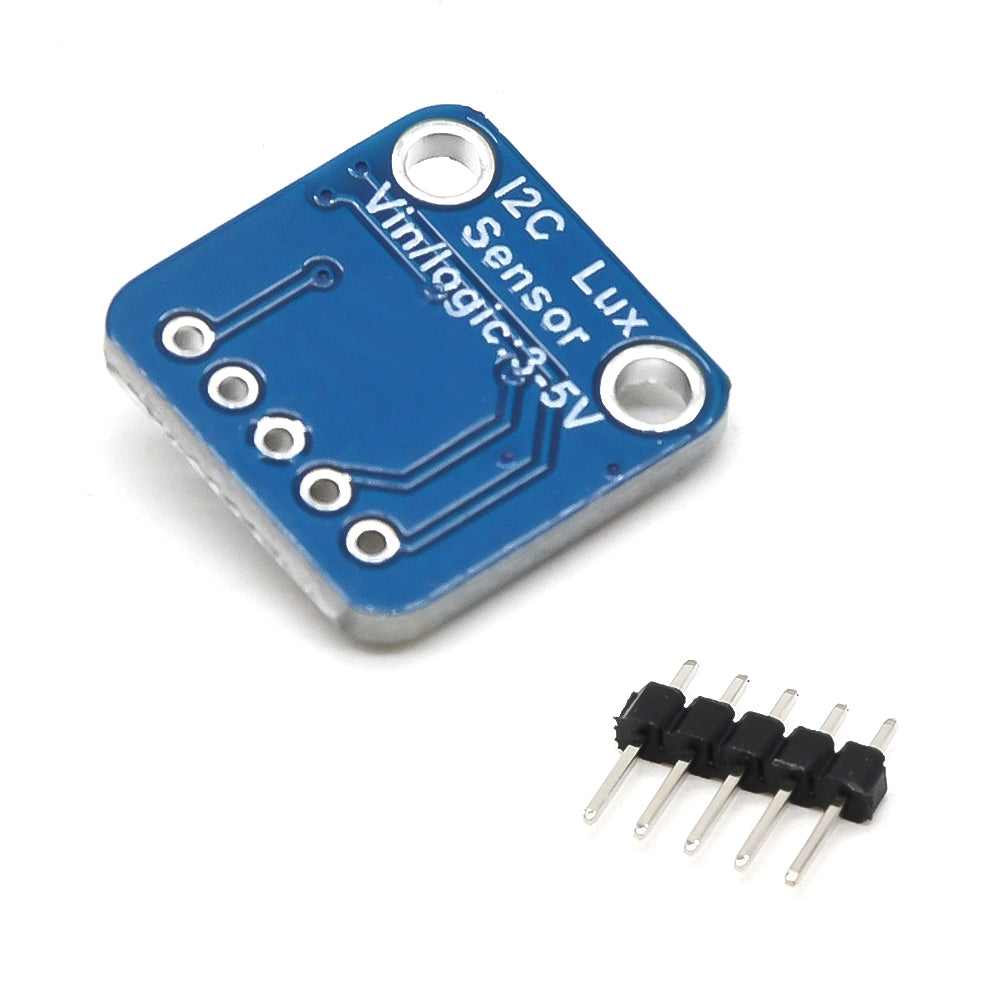

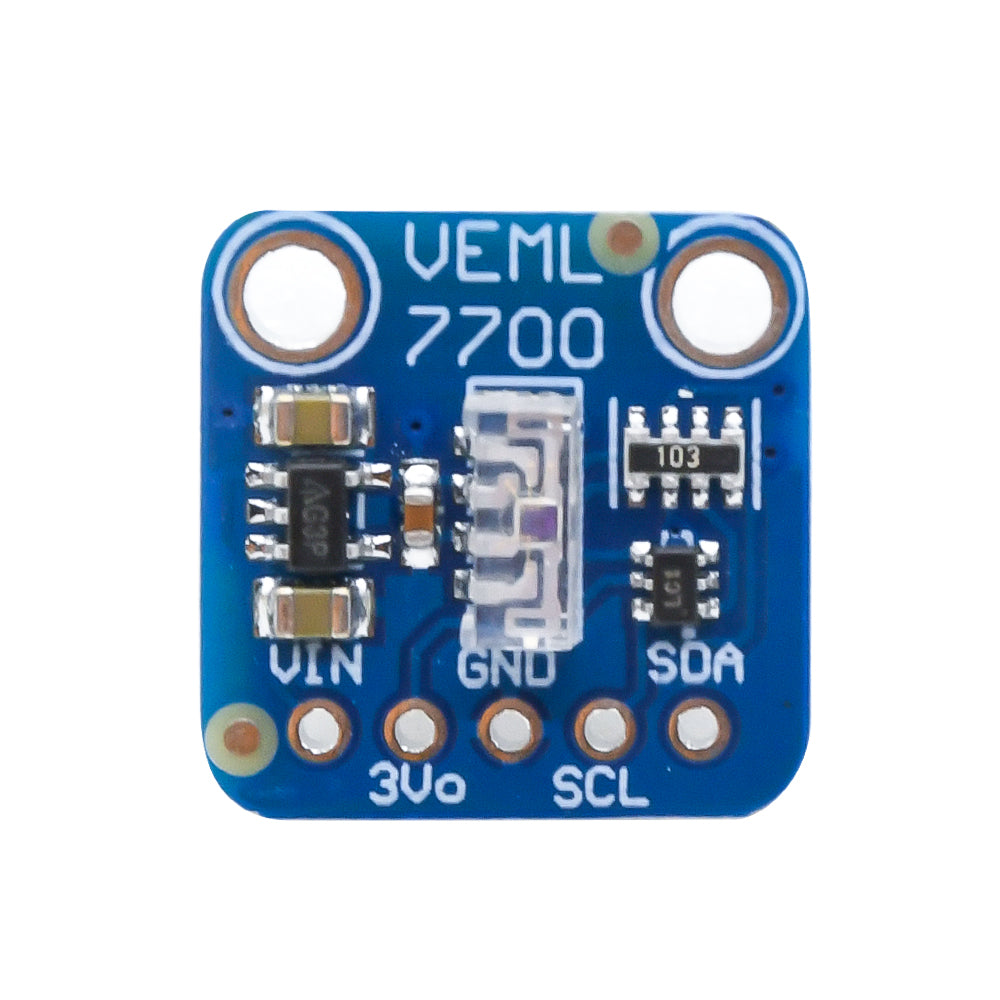

  • Module based on a VEML7700 sensor for measuring ambient light. This sensor is intended for use with an Arduino or Raspberry Pi type microcontroller or compatible via the I2C bus.
  • Connectivity: The use of this module requires soldering of the included 5-pin connector depending on the use.
  • Programming: This module requires the installation of an Arduino or CircuitPython library depending on the type of microcontroller used.

Characteristics:

  • Power supply: 3.3 or 5 Vdc
  • Interface: I2C
  • I2C address: 0x10 (not modifiable)
  • Measuring range: 0 to 120,000 lux on 16 bits
  • Accuracy: 0.0036 lux / ct
  • Regulator output: 3.3 Vdc / 100 mA max
  • Dimensions: 17 x 17 x 4 mm
  • Weight: 1.8g
