Widora-AIR V4.0 Nodemcu ESP32 ESP32-Bit Development Board USB Shield Module MCU

Widora-AIR V4.0 Nodemcu ESP32 ESP32-Bit Development Board USB Shield Module MCU

SKU:040206
Regular price $25.00 USD Sale price $11.99 USD

Description

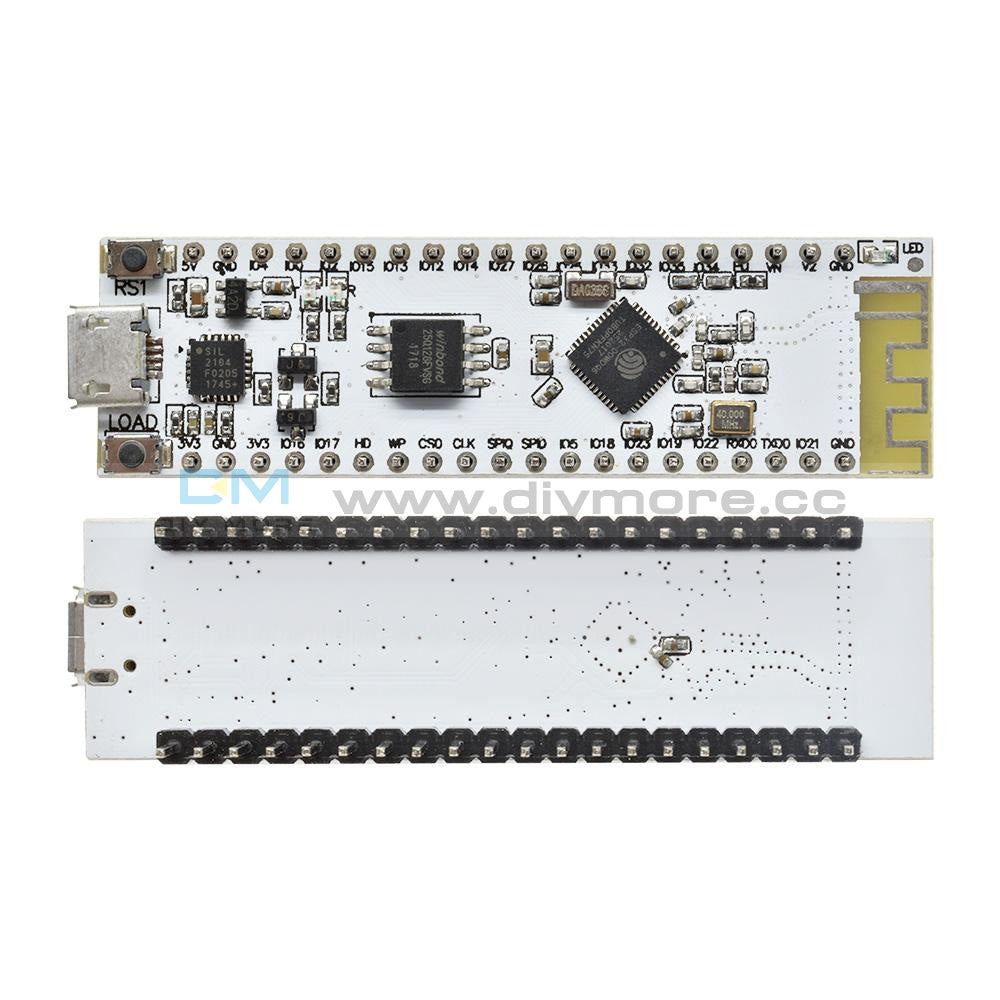

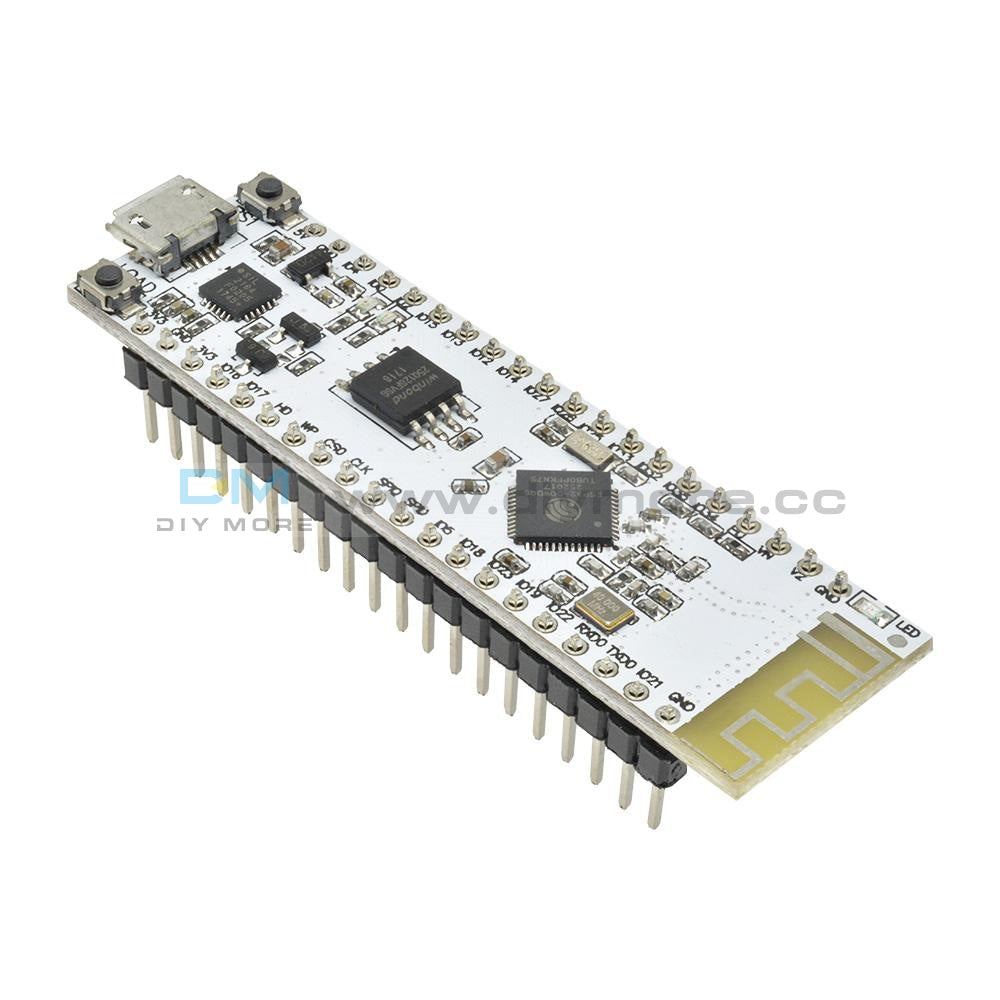

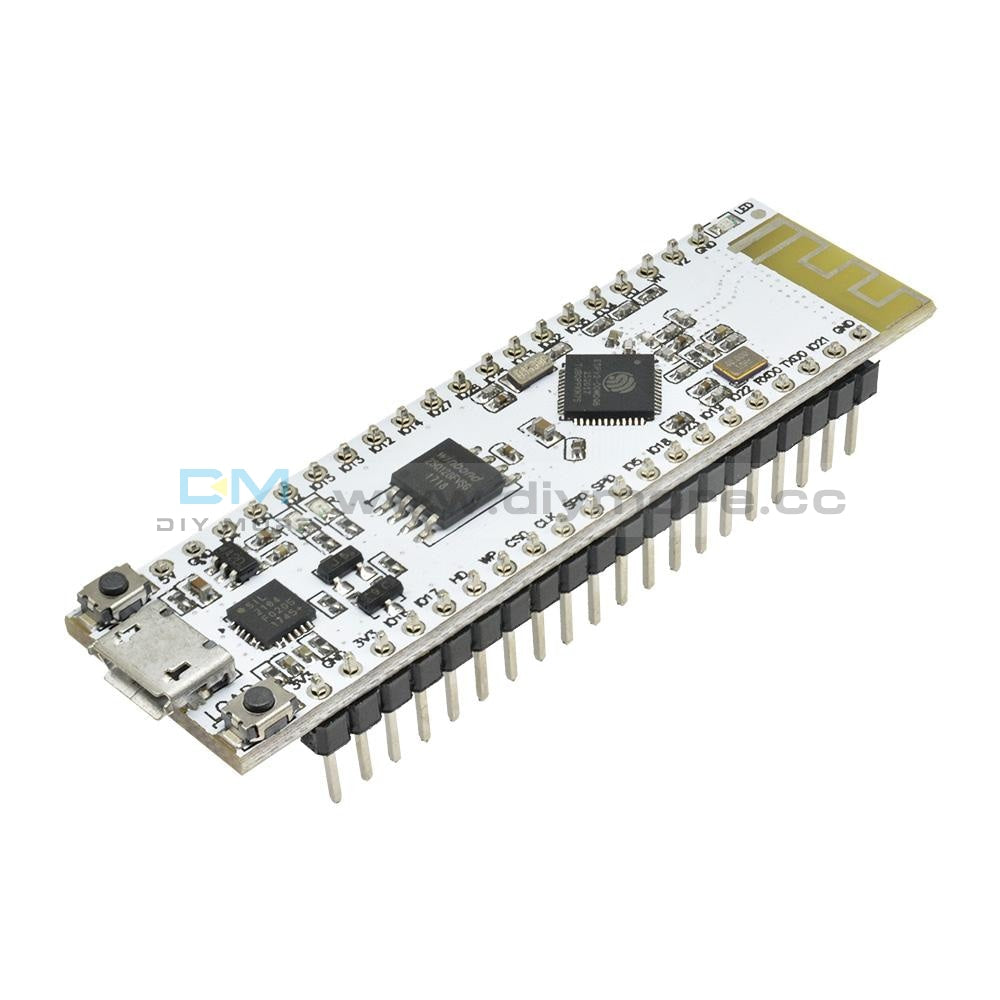

This Widora-air development board is the perfect platform to use this ESP32. It offers csamll footprint and headers for convenient use in breadboard, or directly, a micro USB socket , automatic download / debug / Log abilities thanks to the new high USB-UART bridge from Silicon Labs CP2104. An automatic reset circuit makes programming with Arduino and others IDE a breeze. PCB layout a been well optimized in its current 4.0 version, all IOs are broken out. The board has it own onboard 3.3V LDO, two keys and two LEDs. Reduced footprint of 61.6 x 17.7 mm (2428x700mil).

ESP32 240MHz
Onboard 3.3V LDO regulator
CP2104 USB UART bridge
onboard reset circuit for auto programming
Flash zie is 4M

Package Included:

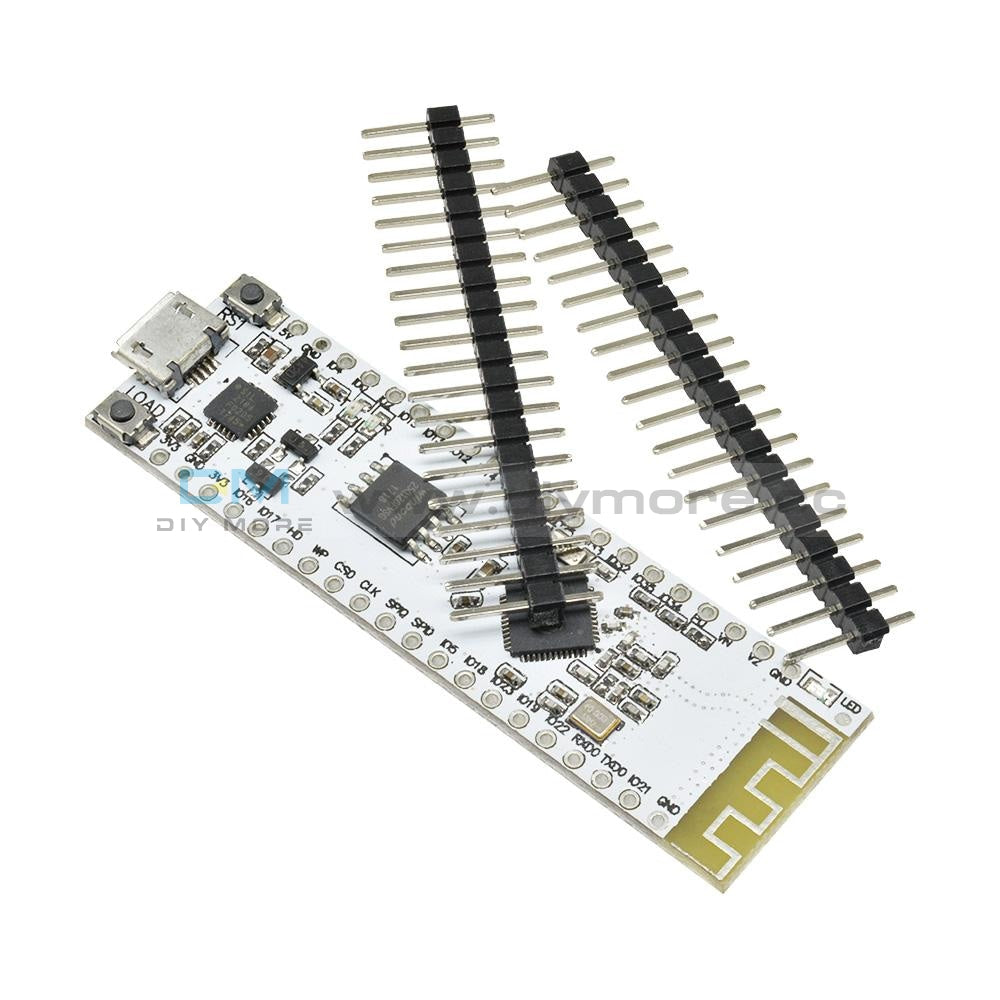

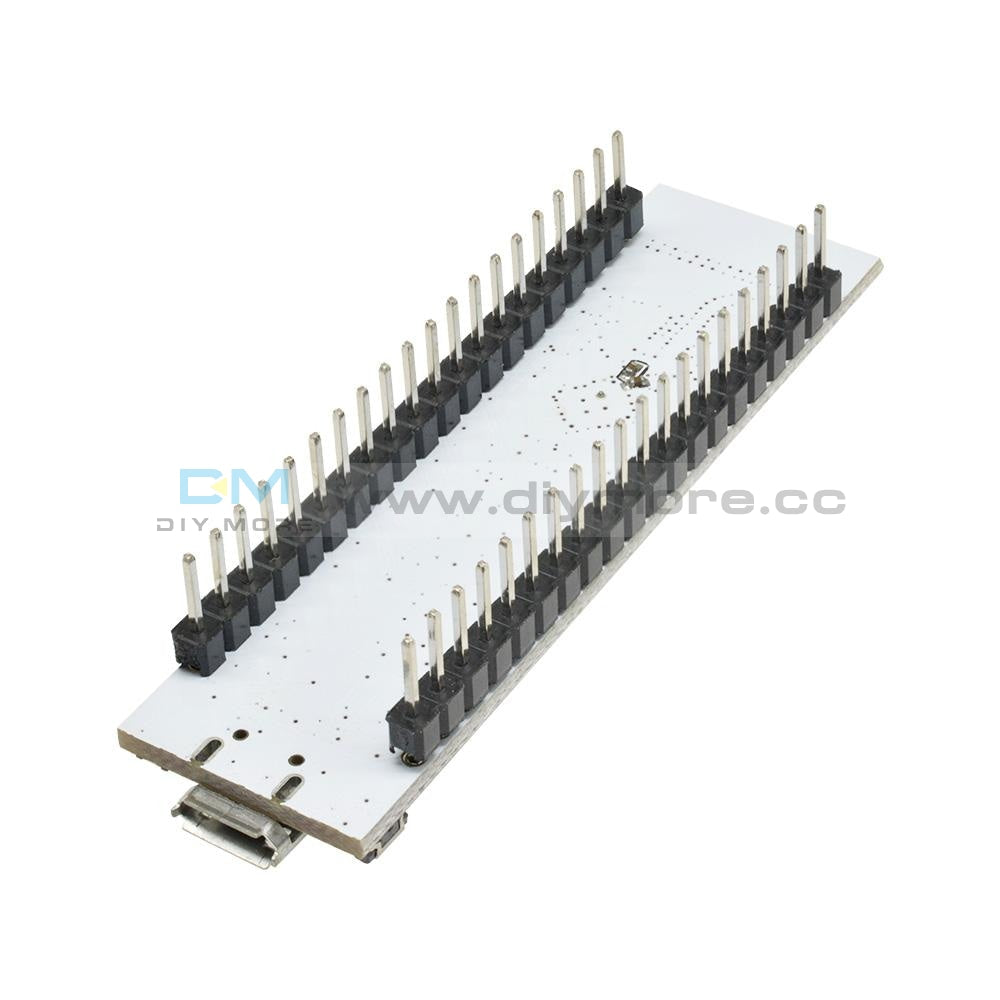

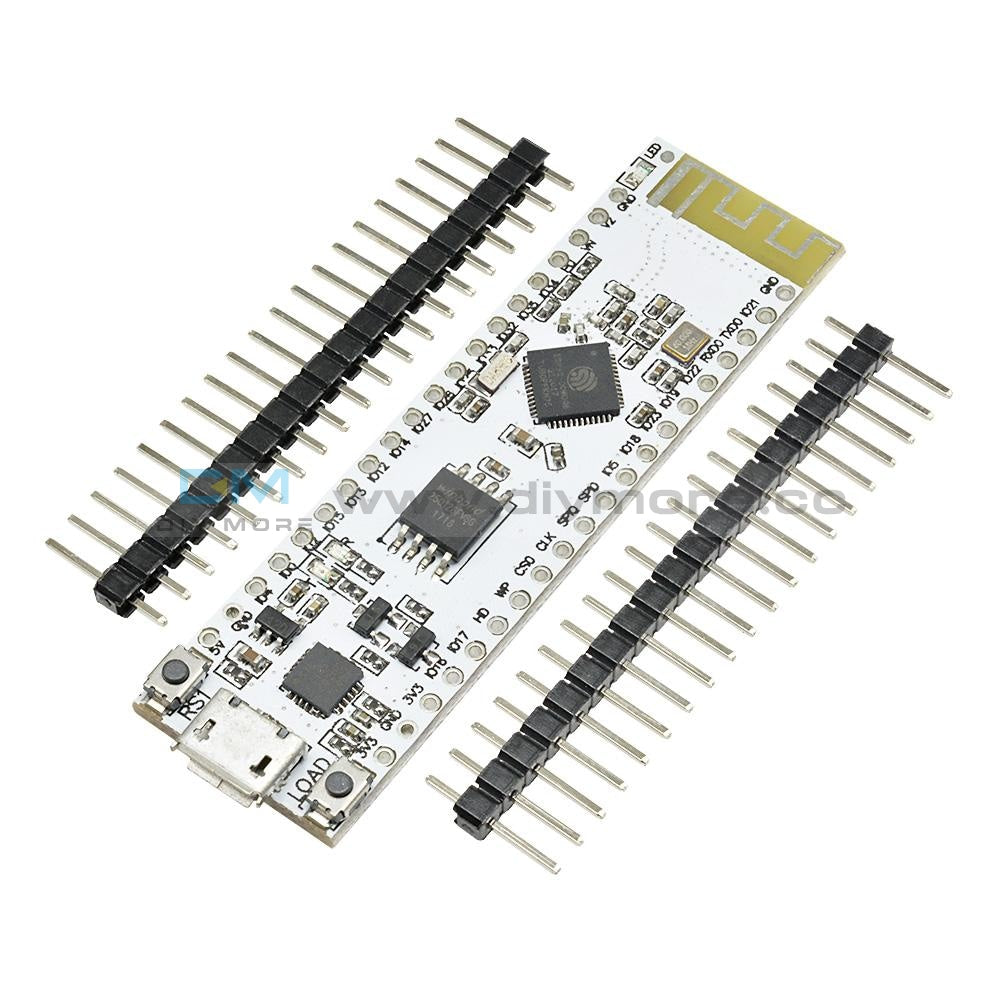

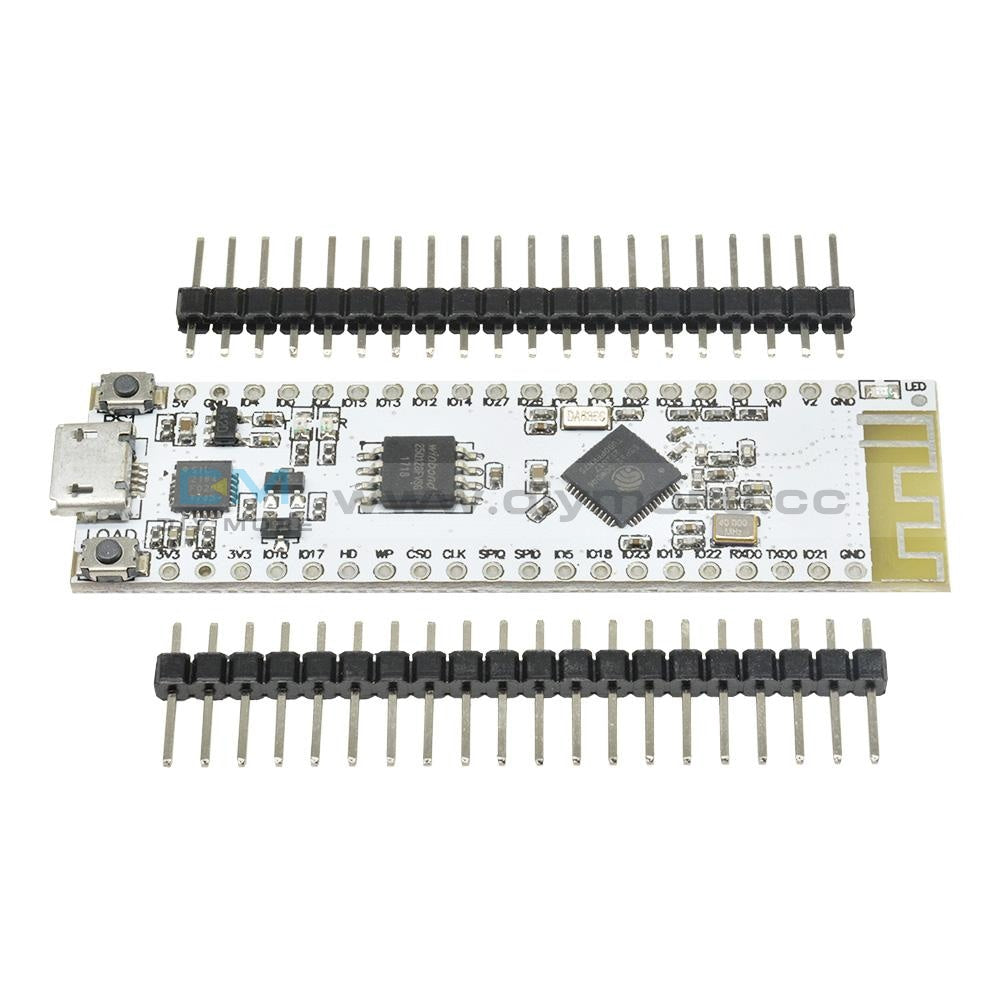

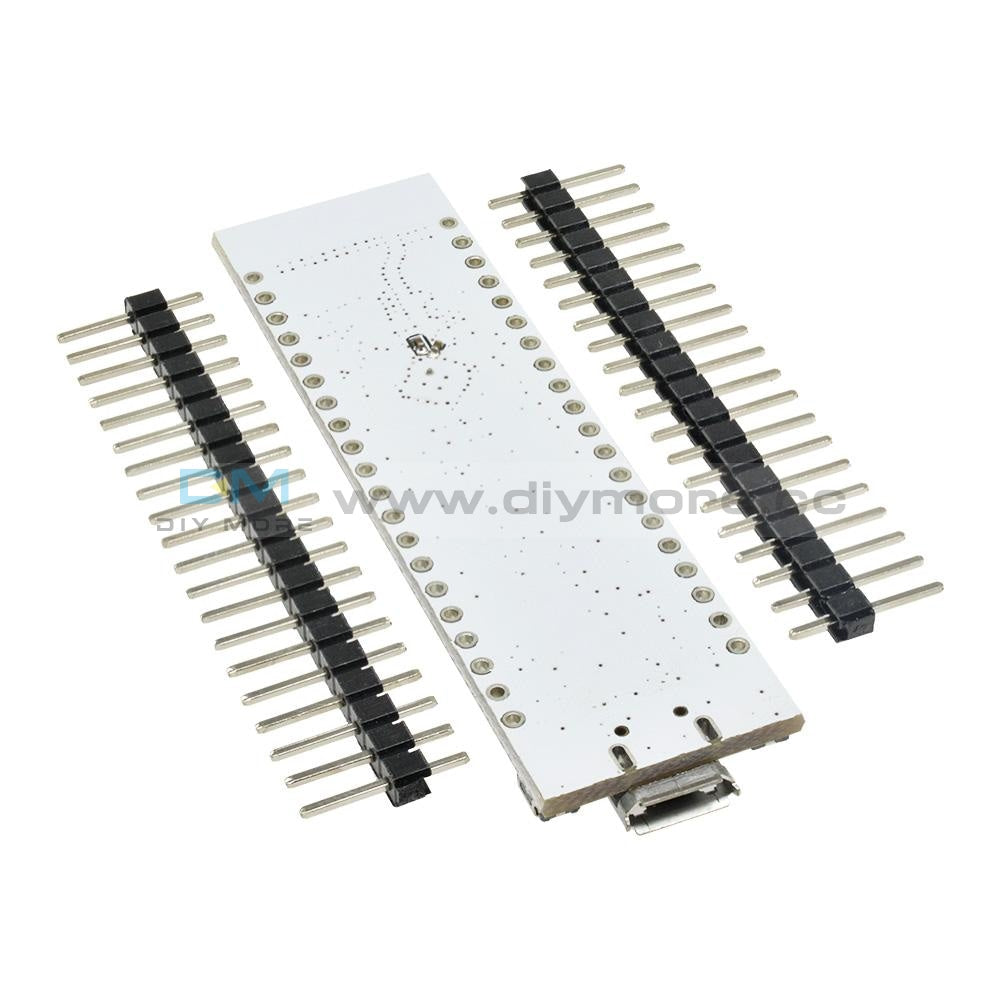

1 X Widora-AIR V4.0 Nodemcu ESP32 Development Board
2 X Pin headers
